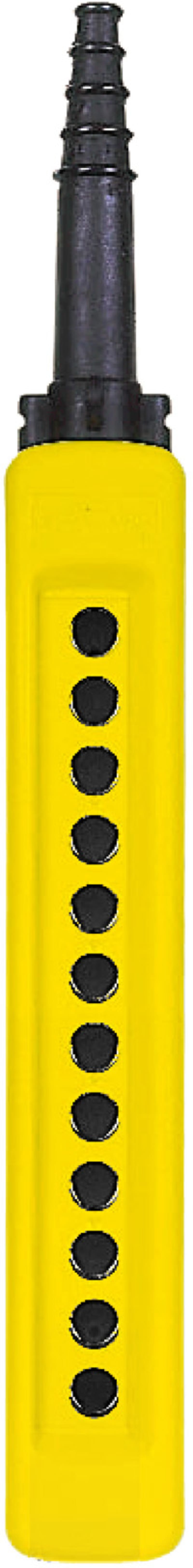

Schneider Electric empty pendant control station XAC-A - 12 openings in 1 column XACA12
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric XACA12 Suspended enclosure Empty 12 Hole Plastic.
Technical Specifications
- Manufacturer part number (MPN)
- XACA12
- EAN / GTIN
- 3389110645088
- Sales unit
- pcs
- Package quantity
- 30 pcs
- Range of product
- Harmony XAC
- Product or component type
- Pendant control station
- Device short name
- XACA
- Control station type
- Double insulated
- Enclosure material
- Polypropylene
- Electrical circuit type
- Control circuit
- enclosure type
- Empty enclosure
- Number of cut-out
- 12 cut-outs
- Control station colour
- Yellow
- Cable entry
- Rubber sleeve with stepped entry 8…26 mm
- Guard rail
- Without
- Vertical operator cut-out centre
- 30 mm
- Standards
- IEC 60204-32; CSA C22.2 No 14; IEC 60947-5-1; UL 508
- Product certifications
- CCC; GOST
- Protective treatment
- TH
- Ambient air temperature for operation
- -25…70 °C
- Ambient air temperature for storage
- -40…70 °C
- Vibration resistance
- 15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
- Shock resistance
- 100 gn conforming to IEC 60068-2-27
- Overvoltage category
- Class II conforming to IEC 61140
- IP degree of protection
- IP65 conforming to IEC 60529
- IK degree of protection
- IK08 conforming to IEC 62262
- Mechanical durability
- 1000000 cycles
- Product weight
- 1 kg
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 30
- Country of origin
- CZ
- Warranty (in months)
- 18
- Suitable for control current circuit
- Yes
- Suitable for main current circuit
- No
- Number of command positions
- 12
- Colour housing cover
- Yellow
- Housing material
- Plastic
- Degree of protection (IP)
- IP65
- Inner diameter opening
- 26 mm
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 3389110645088
- SAP 1000087829
- Code 8830978
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Cable tie, Thorsman installation material, 300X7.6MM, black IMT46421
Schneider Electric
Mounting Block GV2 MS Snap-In (GV2AFAM1)
Schneider Electric
Summer WSO-PR-I33 IP65
FFS06711737
Schneider Electric
Schneider Electric compact smart relay Zelio Logic - 12 I O - 24 V AC - clock - display SR2B121B
Schneider Electric
Schneider Electric APC Smart-UPS RT Isolation Transformer, 3000VA, 230V In/Out, 1X IEC Jumpers & 1X IEC 60320 C19 outlets SURT001
Schneider Electric
Schneider Electric PM5330 Meter, modbus, up to 31ST H, 256K 2DI/2DO 35 alarms METSEPM5330
Schneider Electric
Schneider Electric residual current breaker with overcurrent protection (RCBO), ACTI9 ICV40, 1P+N, 20 A, C Curve, 6000 A, 30 mA, A-SI type A9DF3620
Schneider Electric

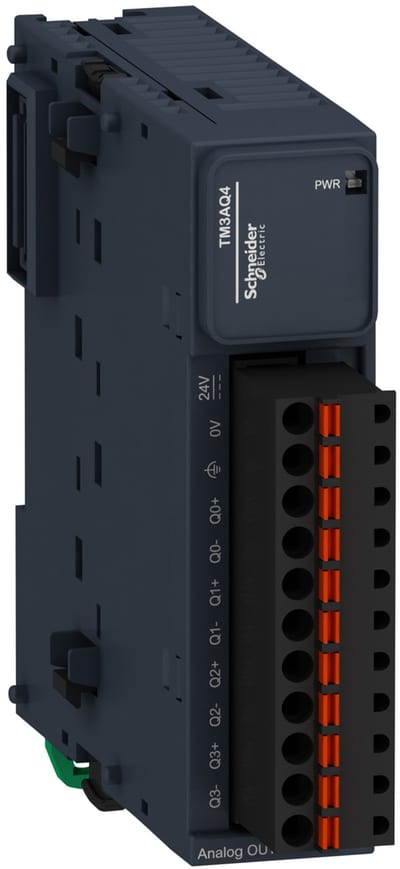

Schneider Electric Modicon TM3 - 4 analog outputs (spring) 24VDC TM3AQ4G
