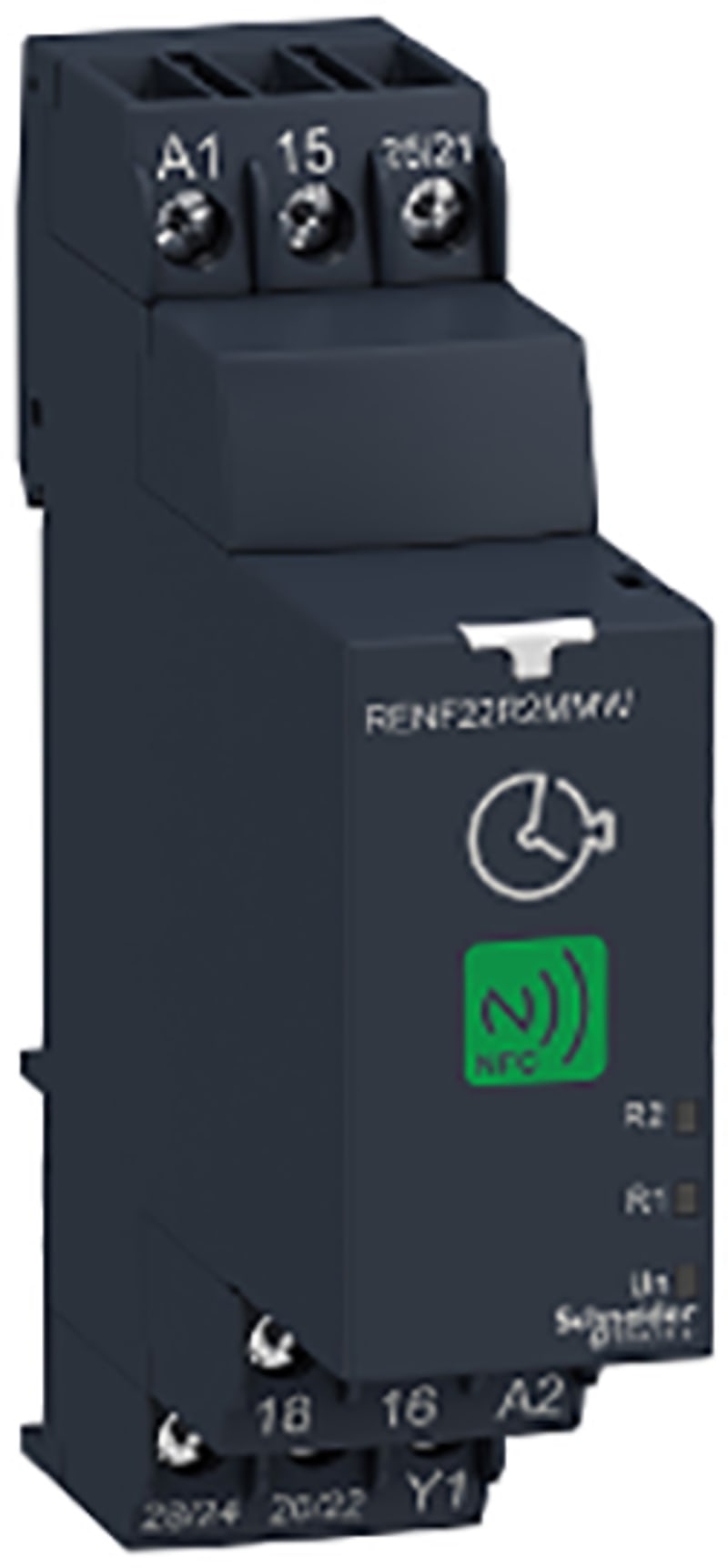

Schneider Electric Harmony, NFC modular timing relay, 8 A, 2 CO, 0.1 s…999 h, multifunction, 24...240 V AC/DC RENF22R2MMW

Schneider Electric RENF22R2MMW Time relay multifunction with NFC programmering 0,1s-99 t 2 C/O 8A 24-240V AC/DC.

Manufacturer part number (MPN)

RENF22R2MMW EAN / GTIN: 3606480936203 HS code: 8536.90 Sales unit: pcs Package quantity: 40 pcs Range of product: Harmony Timer Relays Product or component type: NFC timer relay Device short name: RENF22 App for product: Ecostruxure Industrial Device (downloadable from Google Play store or Apple Store) Discrete output type: Relay nominal output current: 8 A Contacts type and composition: 2 C/O timed contact, cadmium free; 1 C/O timed and instantaneous contact, cadmium free Time delay type: Power on-delay; On-delay and off-delay; Pulse delay; Asymmetrical on-delay and off-delay; Interval; Off-delay; Symmetrical flashing; Safe-guard; Star-delta; Asymmetrical flashing; Bistable Time delay range: 0.05 s...999 h Product compatibility: NFC enabled mobile device Control type: Without test button [Us] rated supply voltage: 24...240 V AC/DC Release input voltage: <= 2.4 V Voltage range: 0.85...1.1 Un Maximum RF power transmitted: 0.0002 mW NFC operating frequency: 13.56 MHz Supply frequency: 50...60 Hz +/- 5 % Connections - terminals: Screw terminals, 1 x 0.5...1 x 3.3 mm² (20 AWG...12 AWG) solid without cable end; Screw terminals, 2 x 0.5...2 x 2.5 mm² (20 AWG...14 AWG) solid without cable end; Screw terminals, 1 x 0.2...1 x 2.5 mm² (24 AWG...14 AWG) flexible with cable end; Screw terminals, 2 x 0.2...2 x 1.5 mm² (24 AWG...16 AWG) flexible with cable end Tightening torque: 0.6…1 N.m conforming to IEC 60947-1; 0.6…1.0 N.m conforming to IEC 60947-1 Housing material: Polycarbonate Repeat accuracy: +/- 0.2 % for 10 s...999 h time delay range; +/- 0.5 % for 100 ms...10 s time delay range; +/- 0.7 % for 50...100 ms time delay range Temperature drift: +/- 0.05 %/°C Voltage drift: +/- 0.2 %/V Setting accuracy of time delay: +/- 1 % for 1...999 h time delay range at 25 °C; +/- 2 % for 1...3600 s time delay range at 25 °C; +/- 20 ms for 100 ms...10 s time delay range at 25 °C; +/- 30 ms for 50...100 ms time delay range at 25 °C Control signal pulse width: 100 ms with load in parallel; 60 ms no-load Insulation resistance: 100 MOhm at 500 V DC conforming to IEC 60664-1 Recovery time: 120 ms on de-energisation Power consumption in VA: 3 VA at 240 V AC Power consumption in W: 1.5 W at 240 V DC; 0.6 W at 24 V DC Switching capacity in VA: 2000 VA minimum switching current: 10 mA at 5 V Maximum switching current: 8 A Maximum switching voltage: 250 V Electrical durability: 100000 cycles for resistive load, 8 A at 250 V, AC Mechanical durability: 10000000 cycles Rated impulse withstand voltage: 5 kV 1.2/50 µs conforming to IEC 60664-1 power on delay: 100 ms Creepage distance: 4 kV/3 conforming to IEC 60664-1 Overvoltage category: III conforming to IEC 60664-1 Safety reliability data: MTTFd = 227.5 years 100 % duty cycle continuous operating condition at 30 °C Mounting position: Any position Mounting support: 35 mm DIN rail conforming to IEC 60715 status LED: LED Un: (steady), green for power ON; LED R1: (steady), amber for relay energised; LED R2: (steady), amber for relay energised; LED pairing: (steady), green for communication status; LED Un: (fast blinking), green for diagnosis mode; LED R1: (blinking), amber for timing in progress; LED R2: (blinking), amber for timing in progress Maximum communication distance: 10 mm Function available: A- Power on-delay relay-2 C/O; Ac- On-delay and off-delay relay w/ control signal-2 C/O; Ad- Pulse delayed relay w/ control signal-2 C/O; Ah- Pulse delayed relay (single cycle) w/ control signal-2 C/O; Ak- Asymmetrical on-delay and off -delay relay w/ control signal-2 C/O; At- Power on-delay relay w/ pause/summation (Y1)-2 C/O; B- Single interval relay w/ control signal-2 C/O; Bw- Double interval relay w/ control signal-2 C/O; C- Off-delay relay w/ control signal-2 C/O; D- Symmetrical flashing relay (starting pulse-off)-2 C/O; Di- Symmetrical flashing relay (starting pulse-on)-2 C/O; Dt- Symmetrical flashing relay (starting pulse-off) w/ pause/summation (Y1)-2 C/O; Dit- Symmetrical flashing relay (starting pulse-on) w/ pause/summation (Y1)-2 C/O; H- Interval relay-2 C/O; Ht- Interval relay w/ pause/summation (Y1)-2 C/O; Li- Asymmetrical flashing relay (starting pulse-on)-2 C/O; Lt- Asymmetrical fl ashing relay (starting pulse-off) w/ pause/summation (Y1)-2 C/O; Lit- Asymmetrical flashing relay (starting pulse-on) w/ pause/summation (Y1)-2 C/O; N- Safe-guard relay-2 C/O; O- Delayed Safe-guard relay-2 C/O; P- Pulse delayed relay w/ fixed pulse length-2 C/O; Pt- Pulse delayed relay w/ fixed pulse length and pause/summation-2 C/O; Qt- Star-delta relay (2 CO outputs w/ split common)-2 C/O; Qtt- Star-delta relay (2 CO outputs w/ split common) w/ pause/summation (Y1)-2 C/O; TI- Bistable relay w/ control signal on-2 C/O; Tt- Retriggerable bistable relay w/ control signal on-2 C/O; W- Interval relay w/ control signal off-2 C/O; L- Asymmetrical flashing relay (starting pulse-off)-2 C/O Operating system: Androidversion >= V7.0; IOSversion >= V14.5 Width: 22.5 mm Product weight: 0.0904 kg Number of functions: 28 Immunity to microbreaks: 10 ms Dielectric strength: 2.5 kV for 1 mA/1 minute at 50 Hz with between relay output and power supply with basic insulation; with basic insulation Standards: IEC 61000-6-1; IEC 61000-6-2; IEC 61000-6-4; EN 61812-1; IEC 61000-6-3 Directives: 2014/35/EU - low voltage directive; 2014/53/EU - radio equipment directive; 2014/30/EU - electromagnetic compatibility Product certifications: CE; CSA; KC; UL; CCC; EAC; DNV-GL Ambient air temperature for operation: -20…60 °C Ambient air temperature for storage: -40…70 °C IP degree of protection: IP40 housing: conforming to IEC 60529; IP40 front face: conforming to IEC 60529; IP20 terminals: conforming to IEC 60529 Pollution degree: 3 conforming to IEC 60664-1 Vibration resistance: 20 m/s² (f= 10…150 Hz) conforming to IEC 60068-2-6 Shock resistance: 15 gn not operating for 11 ms conforming to IEC 60068-2-27; 5 gn in operation for 11 ms conforming to IEC 60068-2-27 Relative humidity: 95 % at 25…55 °C Electromagnetic compatibility: Electrostatic discharge immunity test - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2; Electrostatic discharge immunity test - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2; Fast transients immunity test - test level: 1 kV level 3 (capacitive connecting clip) conforming to IEC 61000-4-4; Fast transients immunity test - test level: 2 kV level 3 (direct contact) conforming to IEC 61000-4-4; Surge immunity test - test level: 1 kV level 3 (differential mode) conforming to IEC 61000-4-5; Surge immunity test - test level: 2 kV level 3 (common mode) conforming to IEC 61000-4-5; Radiated radio-frequency electromagnetic field immunity test - test level: 10 V level 3 (0.15...80 MHz) conforming to IEC 61000-4-6; Electromagnetic field immunity test - test level: 10 V/m level 3 (80 MHz...1 GHz) conforming to IEC 61000-4-3; Immunity to microbreaks and voltage drops - test level: 30 % (500 ms) conforming to IEC 61000-4-11; Immunity to microbreaks and voltage drops - test level: 100 % (20 ms) conforming to IEC 61000-4-11; Radiated emission class B conforming to EN 55022; Conducted emission class A conforming to EN 55022; Electromagnetic field immunity test - test level: 3 V/m level 2 (1.4 GHz...2 GHz) conforming to IEC 61000-4-3; Electromagnetic field immunity test - test level: 1 V/m level 1 (2...2.7 GHz) conforming to IEC 61000-4-3 Number of Units in Package 1: 1 Number of Units in Package 2: 40 Number of Units in Package 3: 640 Country of origin: ID Warranty (in months): 18

HS Code

8536.90

• EAN 3606480936203
• SAP 1200008653
• Code 8534547
