Profile - STAV3 - 1.0M - Anthracite
Pricing
Request a quote
We reply within 24 hours
Product Description

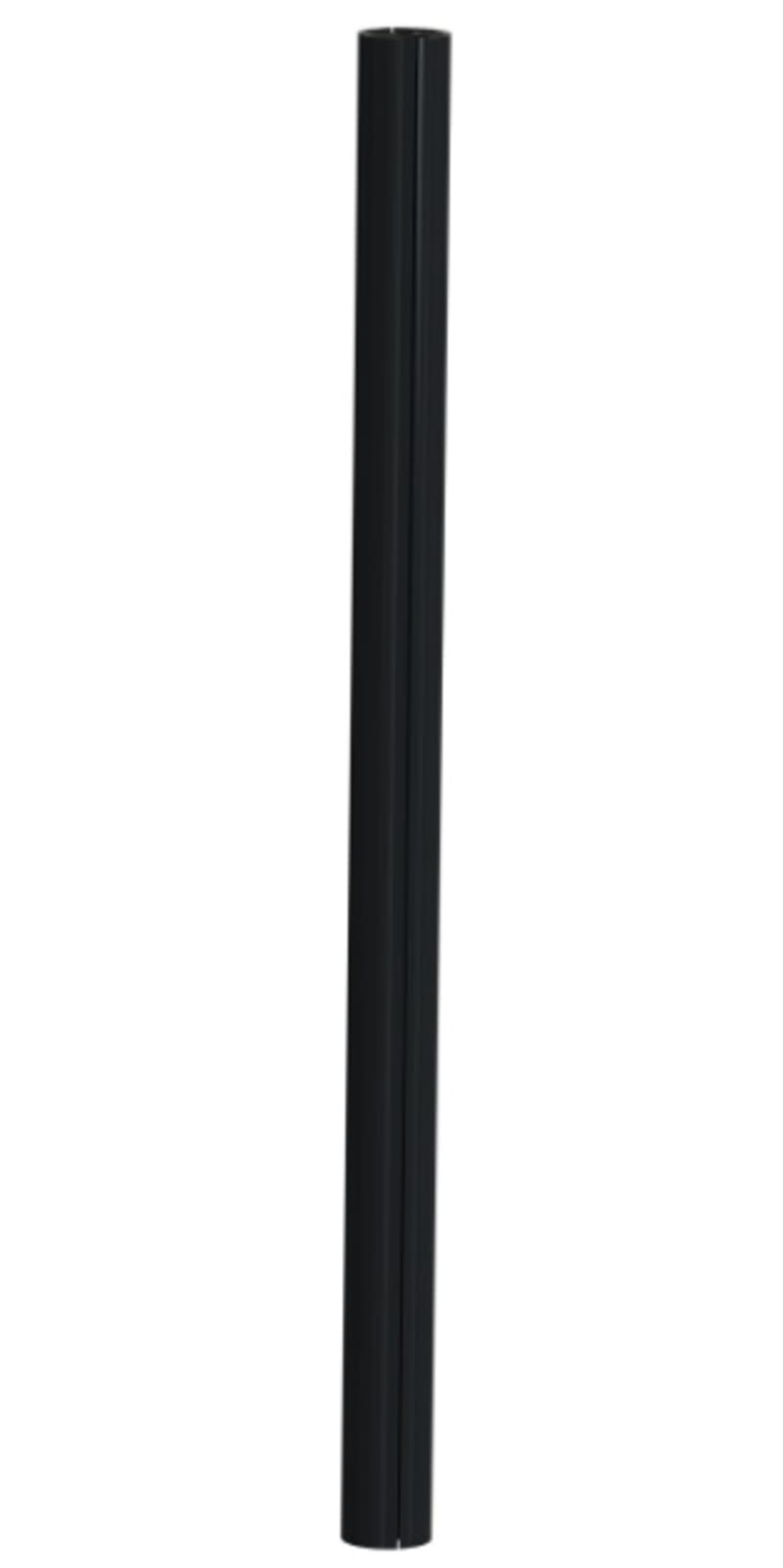

Schneider Electric INS45008 is a double-sided Stav3 installation column, 1.0 m tall, in anthracite. Round aluminium pillar 60 mm diameter with coated finish to RAL 7016 and halogen-free construction. Suitable for floor mounting with bottom cable entry and two usable cross-section partitions.
Technical Specifications
- Manufacturer part number (MPN)
- INS45008
- EAN / GTIN
- 3606489820664
- Sales unit
- pcs
- Pillar shape
- Round
- Model
- Double-sided
- Pre-wired
- No
- Adjustable
- No
- Column height
- 1000 mm
- Column depth
- 60 mm
- Column width
- 60 mm
- Diameter
- 60 mm
- Cover width
- 60 mm
- Cover depth
- 60 mm
- Type of fastening
- Screwing
- Place variable
- Yes
- Ceiling mounting
- No
- Cable entry
- Bottom
- Through-going profile
- Yes
- Material installation column
- Aluminium
- Material installation column halogen free
- Yes
- Surface protection column
- Coated
- Colour column
- Anthracite
- RAL-number column
- 7016
- Material cover halogen free
- Yes
- Cover surface
- Coated
- Colour top cover
- Anthracite
- RAL-number cover
- 7016
- Number of partitions
- 2
- Usable cross section
- 670 mm²
- Suitable for ceiling mounting
- No
- Suitable for floor mounting
- Yes
- Country of origin
- Türkiye
Standards & Compliance
- HS Code
- 7604.29
Cross References
- EAN 3606489820664
- SAP 1200495910
- Code 82625078
Product Documentation
