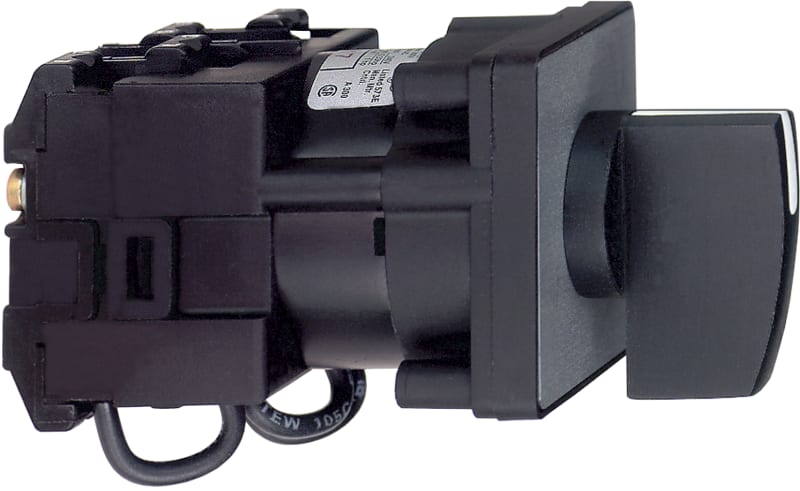

Schneider Electric Cam changeover switch, Harmony K, multifixing, 3 Poles, position 0, 30 degree, 20A, black marked 1-0-2 K2E003WLH

Schneider Electric K2E003WLH Drei.Ret.Vend.3-Pole 0 Still.

Manufacturer part number (MPN)

K2E003WLH

EAN / GTIN

3389110244410

Sales unit

pcs

Package quantity

20 pcs

Range of product

Harmony K

Product or component type

Complete cam switch

Component name

K2

[Ith] conventional free air thermal current

20 A

Product mounting

Front mounting

fixing mode

Multifixing

Presentation of legend

With metallic legend, 1 - 0 - 2 black marking

Cam switch function

Changeover switch

Off position

With Off position

Switching positions

0-45°-315°

IP degree of protection

IP40 conforming to IEC 60529

[Ui] rated insulation voltage

690 V (pollution degree 3) conforming to IEC 60947-1

[Ithe] conventional enclosed thermal current

16 A

Electrical durability

200000 cycles AC-23; 200000 cycles AC-3; 600000 cycles AC-15; 600000 cycles AC-21

Maximum operating rate

2.5 cyc/mn AC-21; 2.5 cyc/mn AC-23; 2.5 cyc/mn AC-3; 8.333 cyc/mn AC-15

Short-circuit current

10000 A

Short-circuit protection

20 A cartridge fuse, type gG

[Uimp] rated impulse withstand voltage

4 kV in isolating function; 6 kV conforming to IEC 947-1

Contact operation

Slow-break

positive opening

With

Electrical connection

Captive screw clamp terminals flexible, clamping capacity: 2 x 1.5 mm²; Captive screw clamp terminals solid, clamping capacity: 1 x 2.5 mm²

Mechanical durability

1000000 cycles

Standards

IEC 60947-3 for power circuit; IEC 60947-5-1 for control circuit; CENELEC EN 50013

Product certifications

CSA 240 V 3 hp 3 phases 2 pole(s); UL 240 V 0.33 hp 1 phase 2 pole(s); CSA 240 V 1 hp 1 phase; UL 240 V 1 hp 3 phases

Protective treatment

TC

Ambient air temperature for operation

-25…55 °C

Ambient air temperature for storage

-40…70 °C

Shock resistance

30 gn conforming to IEC 68-2-27

Vibration resistance

5 gn conforming to IEC 68-2-6 (f = 10…150 Hz)

Electrical shock protection class

Class II conforming to IEC 536; Class II conforming to NF C 20-030

Number of Units in Package 1

1

Number of Units in Package 2

40

Warranty (in months)

18

Model

Reverser

Rated permanent current Iu

20 A

Number of poles

3

Rated operation current Ie at AC-3, 400 V

8 A

Degree of protection (IP), front side

IP40

Type of electrical connection of main circuit

Screw connection

Type of control element

Long rotary handle

Suitable for floor mounting

No

Suitable for front mounting

Yes

Country of origin

Czechia

HS Code

8536.50
