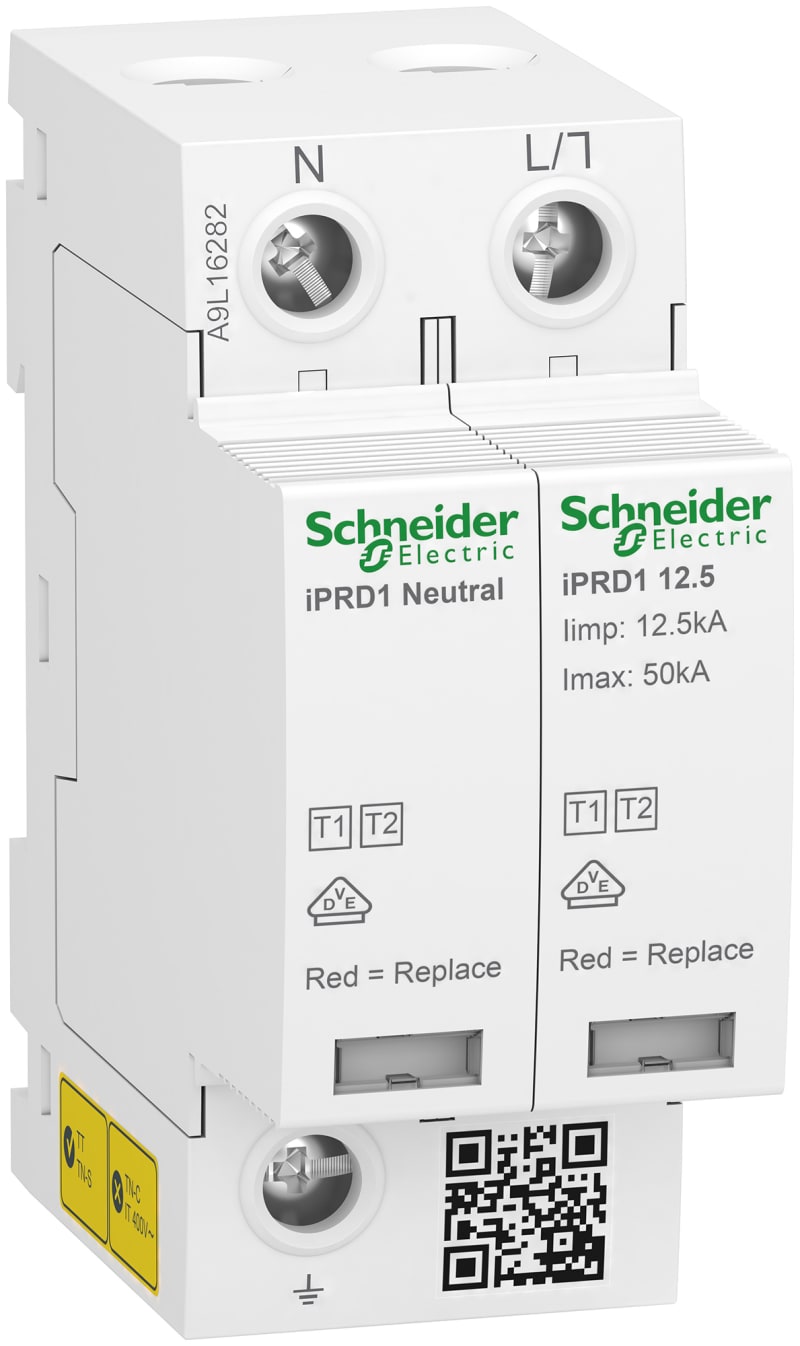

Schneider Electric Modular surge arrester with pluggable cartridge, ACTI9 IPRD1 12.5R, 1 P + N, 350 V, with remote transfert A9L16282

Schneider Electric A9L16282 Modular surge protection device, Acti9 iPRD1 12.5r, 1 P + N, 350 V, with signal contact.

Manufacturer part number (MPN)

A9L16282

EAN / GTIN

3606481490209

Sales unit

pcs

Package quantity

6 pcs

Number of poles

1P+N

Range of product

IPRD1

Product name

Acti9 iPRD1

Product or component type

Surge arrester with pluggable cartridge

Device short name

iPRD1 12.5

Device application

Distribution

Standards

EN 61643-11:2012; IEC 61643-11:2011

Quality labels

CE; EAC; VDE

Poles description

1P + N

Remote signalling

With

Signal contacts composition

1 SD (1 C/O)

Surge arrester type

Electrical distribution network

Earthing system

TN-S; TT

Surge arrester class type

Type 1 + 2

Surge arrester technology

MOV + GDT

[Ue] rated operational voltage

230 V AC (+/- 10 %) at 50/60 Hz

Nominal discharge current

20 kA

Maximum discharge current

50 kA

[Iimp] impulse current

Common mode: 50 kA N/PE; Differential mode: 12.5 kA L/N

[Uc] maximum continuous operating voltage

Differential mode: 350 V L/N; Common mode: 255 V N/PE

Maximum [Up] voltage protection level

1.5 kV type 1 + 2

Residual current

0.003 mA N/PE

[Out] temporary overvoltage

337 V L/N 5 s withstand; 1200 V N/PE 200 ms safe failure mode

Disconnector device type

Associated fuse gG 160 A 120 kA standard; Associated circuit breaker Compact NSX160E 80 A 25 kA standard

Local signalling

Operating: mechanical indicator (white); End of life: mechanical indicator (red)

Mounting mode

Clip-on (DIN rail)

9 mm pitches

4

Height

89 mm

Width

36 mm

Depth

69 mm

Product weight

290 g

Colour

White (RAL 9003)

Material

PA6

Connections - terminals

Tunnel type terminal (phase) 10…25 mm² flexible; Tunnel type terminal (phase) 10…35 mm² rigid; Tunnel type terminal (earth) 16…25 mm² flexible; Tunnel type terminal (earth) 16…35 mm² rigid

Wire stripping length

14 mm

Tightening torque

3.5 N.m

Impulse current

12.5 kA

Compatibility code

IPRD1

Market segment

Residential; Small commercial

IK degree of protection

IK05 conforming to IEC 62262

Pollution degree

3

Relative humidity

5…95 %

Operating altitude

2000 m

Ambient air temperature for operation

-25…60 °C

Ambient air temperature for storage

-40…80 °C

Number of Units in Package 1

1

Number of Units in Package 2

6

Number of Units in Package 3

18

Warranty (in months)

18

Mounting method

DIN rail (top hat rail) 35 mm

Construction size

4 modular spacing

Voltage protection level

1.5 kV

Max. continuous voltage AC

350 V

Nominal voltage AC

230 V

Test class

Type 1 + 2

Voltage protection level L-N

1.5 kV

Signalling at the device

Optical

Degree of protection (IP)

IP20

Voltage protection level N-PE

1.5 kV

Integrated backup fuse

No

Max. conductor cross section solid (solid, stranded)

35 mm²

Max. conductor cross section flexible (fine-strand)

25 mm²

System configuration DC

No

System configuration IT

No

System configuration TN

No

System configuration TN-C

No

System configuration TT

Yes

System configuration other

No

Voltage switching spark gap technology

No

Country of origin

China

HS Code

8536.30
