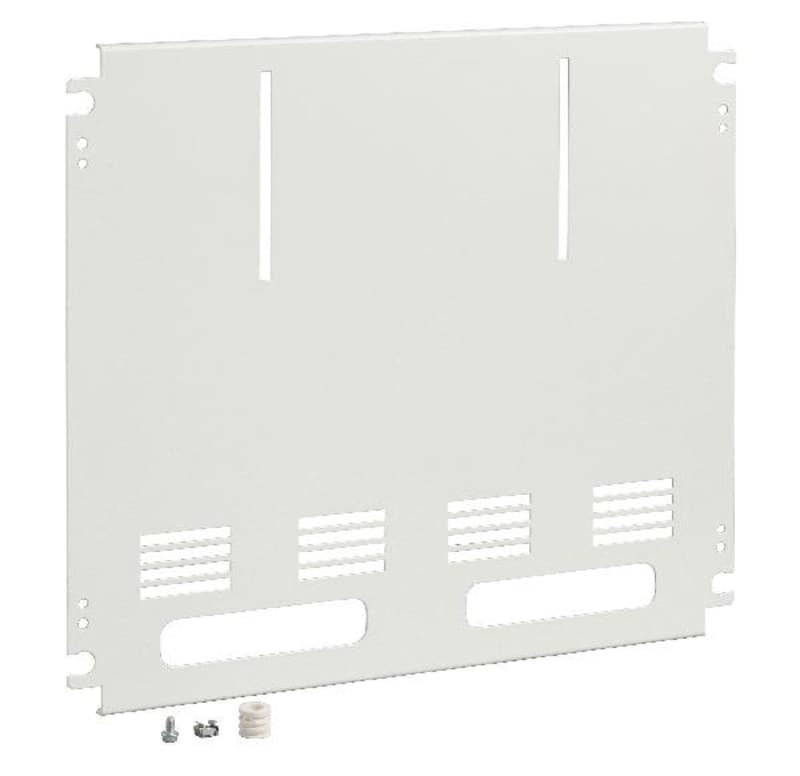

Mounting plate 3-PHASE meter PrismaSeT G B600 H450

Schneider Electric LVS03152 Mounting plate for 2 pcs 3-phase mustlere- PrismaSeT G-B600mm-H450-8modules.

Manufacturer part number (MPN)

LVS03152

EAN / GTIN

3606481871060

Sales unit

pcs

Package quantity

10 pcs

Range

PrismaSeT

Range of product

PrismaSeT G

Product or component type

Mounting plate

Accessory / separate part category

Installation accessory

Range compatibility

PrismaSeT PrismaSeT G enclosure; PrismaSeT PrismaSeT P cubicle

installation description

Floor-standing enclosure - width 600 mm; Wall-mounted enclosure - width 600 mm; Cubicle - width 650 mm depth 400 mm; Pack enclosure - width 555 mm

Installed device

Power meters: kilowatt-hour meters - vertical installation

Poles description

2 x 4P: kilowatt-hour meters vertical installation; 2 x 3P: kilowatt-hour meters vertical installation

Number of vertical modules [50 mm]

8 module(s): kilowatt-hour meters in 600 mm Widefloor-standing enclosure; 8 module(s): kilowatt-hour meters in 600 mm Widewall-mounted enclosure; 9 module(s): kilowatt-hour meters in 600 mm Widefloor-standing enclosure; 9 module(s): kilowatt-hour meters in 600 mm Widewall-mounted enclosure; 9 module(s): kilowatt-hour meters in 650 mm Widecubicle; 9 module(s): kilowatt-hour meters in 555 mm WidePack enclosure

Standards

IEC 61439-2

Product certifications

ASTA

Material

Sheet steel

Protective treatment

Electrophoresis treatment and hot-polymerised polyester epoxy powder

Surface finish

Matt; Textured

Colour

White (RAL 9003)

Width

600 mm

Height

400 mm

Product weight

2.28 kg

Functional unit

600 mm PrismaSeT G floor-standing enclosure power meters kilowatt-hour meters vertical 4P 2 8 50 mm; 600 mm PrismaSeT G wall-mounted enclosure power meters kilowatt-hour meters vertical 4P 2 8 50 mm; 600 mm PrismaSeT G floor-standing enclosure power meters kilowatt-hour meters vertical 4P 2 9 50 mm; 600 mm PrismaSeT G wall-mounted enclosure power meters kilowatt-hour meters vertical 4P 2 9 50 mm; 650 mm 400 mm PrismaSeT P cubicle power meters kilowatt-hour meters vertical 4P 2 9 50 mm

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

2.000 cm

Package 1 Width

42.200 cm

Package 1 Length

47.300 cm

Package 1 Weight

2.342 kg

Unit Type of Package 2

BB1

Number of Units in Package 2

10

Package 2 Height

17.000 cm

Package 2 Width

51.500 cm

Package 2 Length

80.500 cm

Package 2 Weight

24.520 kg

Unit Type of Package 3

P12

Number of Units in Package 3

100

Package 3 Height

100.000 cm

Package 3 Width

80.000 cm

Package 3 Length

120.000 cm

Package 3 Weight

256.500 kg

Warranty (in months)

18

Perforated

No

Surface protection

Powder coating

Country of origin

Czechia

HS Code

8538.90

• EAN 3606481871060
• SAP 1200546883
• Code 82879472
