Product Description

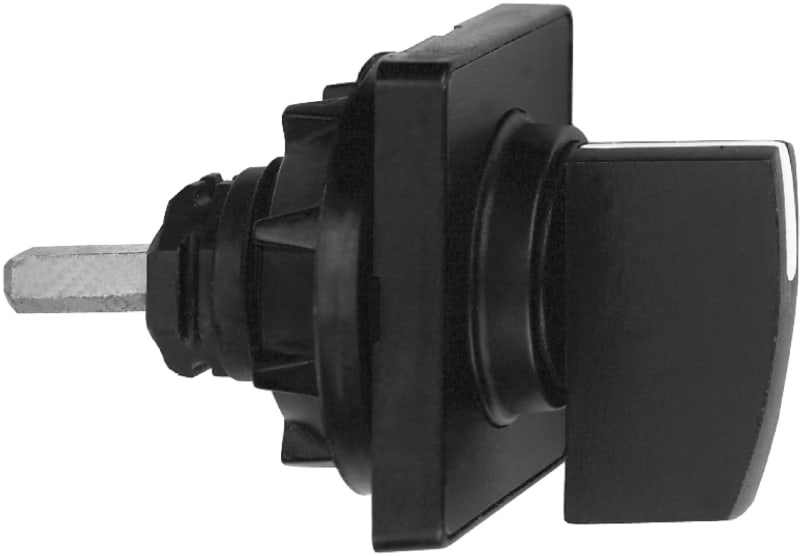

Schneider Electric KAC1H Selector switch For Cam Switch.
Technical Specifications
- Manufacturer part number (MPN)
- KAC1H
- EAN / GTIN
- 3389110980486
- Sales unit
- pcs
- Package quantity
- 60 pcs
- Range of product
- Harmony Series K
- Product or component type
- Cam switch operating head
- Component name
- KAC
- Product compatibility
- Front mounting bodies 12 and 20 A by Ø 22 mm hole
- Cam switch head type
- With front plate 45 x 45 mm
- Type of operator
- Black handle, length = 35 mm
- Rotary handle padlocking
- Without
- Presentation of legend
- With matt black legend
- Mechanical durability
- 1000000 cycles
- CAD overall width
- 45 mm
- CAD overall height
- 45 mm
- CAD overall depth
- 77 mm
- Length
- 35 mm
- Product weight
- 0.048 kg
- Compatibility code
- KAC
- Protective treatment
- TC
- Ambient air temperature for operation
- -25…55 °C
- Ambient air temperature for storage
- -40…70 °C
- Shock resistance
- 30 gn conforming to IEC 68-2-27
- Vibration resistance
- 5 gn conforming to IEC 68-2-6 (f = 10…150 Hz)
- IP degree of protection
- IP65 conforming to IEC 529; IP65 conforming to NF C 20-010
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 7.100 cm
- Package 1 Width
- 7.100 cm
- Package 1 Length
- 8.500 cm
- Package 1 Weight
- 57.000 g
- Unit Type of Package 2
- S03
- Number of Units in Package 2
- 60
- Package 2 Height
- 30.000 cm
- Package 2 Width
- 30.000 cm
- Package 2 Length
- 40.000 cm
- Package 2 Weight
- 4.064 kg
- Unit Type of Package 3
- P06
- Number of Units in Package 3
- 480
- Package 3 Height
- 75.000 cm
- Package 3 Width
- 60.000 cm
- Package 3 Length
- 80.000 cm
- Package 3 Weight
- 42.524 kg
- Country of origin
- CZ
- Warranty (in months)
- 18
- Hole diameter
- 22.5 mm
- Suitable for lighting
- No
- Spring-return
- No
- Colour front ring
- Black
- Degree of protection (IP), front side
- IP65/IP67
- Material front ring
- Plastic
- With front ring
- Yes
- Construction type lens
- Square
- Type of control element
- Wing knob
- Colour control element
- Black
- Switching function latching
- No
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3389110980486
- SAP 1000028976
- Code 8210750
