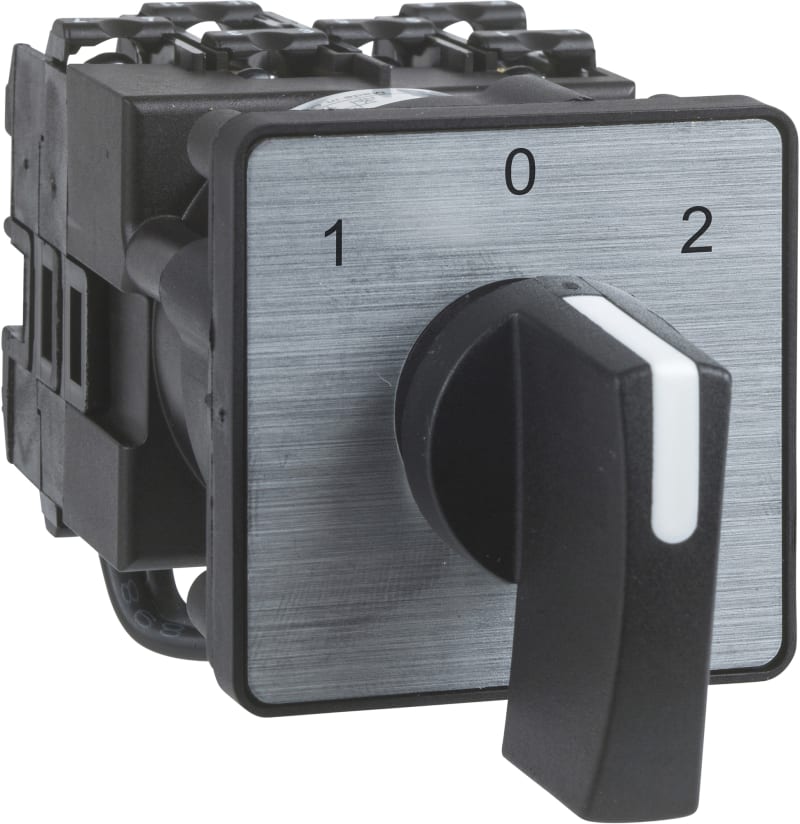

Schneider Electric cam changeover switch - 3-Pole - 45° - 20 A - screw mounting K2F003ULH

Schneider Electric K2F003ULH Cam Switch selector switch 2 pos + 0.

Manufacturer part number (MPN)

K2F003ULH

EAN / GTIN

3389110979800

Sales unit

pcs

Package quantity

10 pcs

Number of poles

3

Range of product

Harmony K

Product or component type

Complete cam switch

Component name

K2

[Ith] conventional free air thermal current

20 A

Product mounting

Front mounting

fixing mode

Multifixing

Cam switch head type

With front plate 45 x 45 mm

Type of operator

Black handle, length = 35 mm

Rotary handle padlocking

Without

Presentation of legend

With metallic legend, 2 - 0 - 1 black marking

Cam switch function

Changeover switch

Return

Without

Off position

With Off position

Poles description

3P

Switching positions

Right: 0° - 45°; Left: 0° - 315°

IP degree of protection

IP40 conforming to IEC 60529

Switching angle

45 °

[Ui] rated insulation voltage

690 V (pollution degree 3) conforming to IEC 60947-1

[Ithe] conventional enclosed thermal current

16 A

Electrical durability

200000 cycles AC-23; 200000 cycles AC-3; 600000 cycles AC-15; 600000 cycles AC-21

Maximum operating rate

2.5 cyc/mn AC-21; 2.5 cyc/mn AC-23; 2.5 cyc/mn AC-3; 8.333 cyc/mn AC-15

Short-circuit current

10000 A

Short-circuit protection

20 A cartridge fuse, type gG

[Uimp] rated impulse withstand voltage

4 kV in isolating function; 6 kV conforming to IEC 947-1

Contact operation

Slow-break

positive opening

With

Electrical connection

Captive screw clamp terminals flexible, clamping capacity: 2 x 1.5 mm²; Captive screw clamp terminals solid, clamping capacity: 1 x 2.5 mm²

Mechanical durability

1000000 cycles

CAD overall width

45 mm

CAD overall height

45 mm

CAD overall depth

97 mm

Product weight

0.17 kg

Standards

IEC 60947-3 for power circuit; IEC 60947-5-1 for control circuit; CENELEC EN 50013

Product certifications

CSA 240 V 3 hp 3 phases 2 pole(s); UL 240 V 0.33 hp 1 phase 2 pole(s); CSA 240 V 1 hp 1 phase; UL 240 V 1 hp 3 phases

Protective treatment

TC

Ambient air temperature for operation

-25…55 °C

Ambient air temperature for storage

-40…70 °C

Shock resistance

30 gn conforming to IEC 68-2-27

Vibration resistance

5 gn conforming to IEC 68-2-6 (f = 10…150 Hz)

Electrical shock protection class

Class II conforming to IEC 536; Class II

Number of Units in Package 1

1

Number of Units in Package 2

10

Number of Units in Package 3

320

Country of origin

CZ

Warranty (in months)

18

Model

Reverser

Rated permanent current Iu

20 A

Rated operation current Ie at AC-3, 400 V

8 A

With zero (off) position

Yes

With retraction in 0-position

No

Degree of protection (IP), front side

IP40

Type of electrical connection of main circuit

Screw connection

Type of control element

Long rotary handle

Suitable for floor mounting

No

Suitable for front mounting

Yes

Suitable for distribution board installation

No

Suitable for intermediate mounting

Yes

Complete device in housing

Yes

HS Code

8536.50

• EAN 3389110979800
• SAP 1200502640
• Code 82626531
