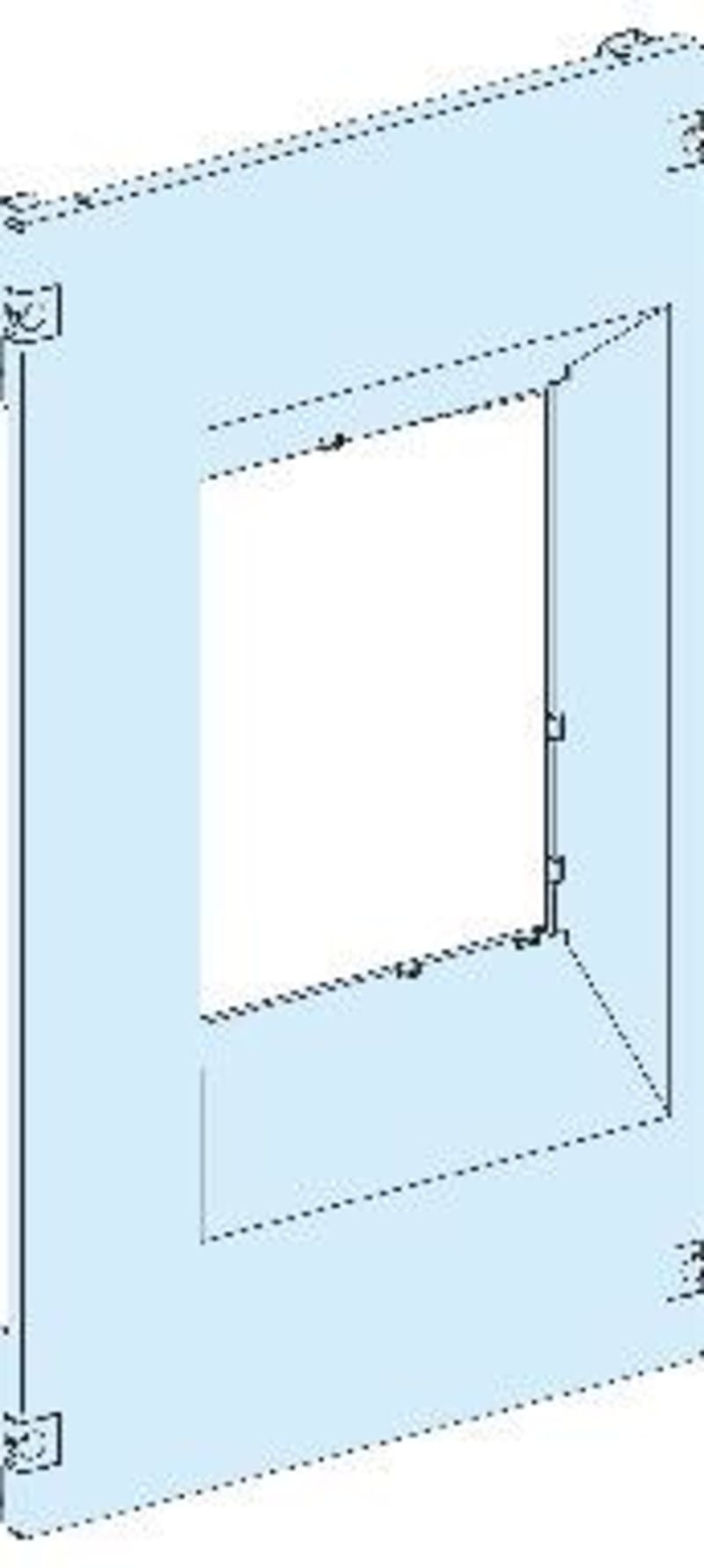

Front plate NS630B-1600-FAST-400MM-PRISMA P
Part numberLVS03697EAN / GTIN3606481866370HS code8538.90
Enclosures
Enclosure Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS03697 Front plate for NS630B-1600-3P/4P-vertical mounting-fixed-mounted-in 400mm section-PrismaSeT P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03697
- EAN / GTIN
- 3606481866370
- Sales unit
- pcs
- Package quantity
- 3 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Front plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT P cubicle
- Type of front plate
- Cut-out
- Installed device
- ComPact: fixed NS1250 - control: toggle - vertical installation; ComPact: fixed NS1250 - control: direct front rotary handle - vertical installation; ComPact: fixed NS1600 - control: toggle - vertical installation; ComPact: fixed NS1600 - control: direct front rotary handle - vertical installation; ComPact: fixed NS630b...1000 - control: toggle - vertical installation; ComPact: fixed NS630b...1000 - control: direct front rotary handle - vertical installation; ComPact: fixed NS1250 - control: motor mechanism - vertical installation; ComPact: fixed NS1600 - control: motor mechanism - vertical installation; ComPact: fixed NS630b...1000 - control: motor mechanism - vertical installation
- Poles description
- 1 x 3P: mounting plate support: NS1250 vertical installation; 1 x 4P: mounting plate support: NS1250 vertical installation; 1 x 3P: mounting plate support: NS1600 vertical installation; 1 x 4P: mounting plate support: NS1600 vertical installation; 1 x 3P: mounting plate support: NS630b...1000 vertical installation; 1 x 4P: mounting plate support: NS630b...1000 vertical installation
- Operating position
- Horizontal
- Enclosure/cubicle description
- Cubicle duct - width 400 mm depth 400 mm
- Connection position
- Direct connection
- Number of vertical modules [50 mm]
- 11
- Standards
- IEC 61439-2; IEC 61439-1
- Product certifications
- ASTA
- Material
- Steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Matt; Textured
- Colour
- White (RAL 9003)
- Width
- 321 mm
- Height
- 550 mm
- Product weight
- 2.24 kg
- Quantity per set
- Set of 1
- functional unit
- 400 mm 400 mm PrismaSeT P cubicle ComPact NS1250 fixed toggle vertical 3P 1 direct 36; 400 mm 400 mm PrismaSeT P cubicle ComPact NS1250 fixed toggle vertical 4P 1 direct 36; 400 mm 400 mm PrismaSeT P cubicle ComPact NS1250 fixed direct front rotary handle vertical 3P 1 direct 36; 400 mm 400 mm PrismaSeT P cubicle ComPact NS1250 fixed direct front rotary handle vertical 4P 1 direct 36; 400 mm 400 mm PrismaSeT P cubicle ComPact NS1250 fixed motor mechanism vertical 3P 1 direct 36; 400 mm 400 mm PrismaSeT P cubicle ComPact NS1250 fixed motor mechanism vertical 4P 1 direct 36; 400 mm 400 mm PrismaSeT P cubicle ComPact NS1600 fixed toggle vertical 3P 1 direct 36; 400 mm 400 mm PrismaSeT P cubicle ComPact NS1600 fixed toggle vertical 4P 1 direct 36; 400 mm 400 mm PrismaSeT P cubicle ComPact NS1600 fixed direct front rotary handle vertical 3P 1 direct 36; 400 mm 400 mm PrismaSeT P cubicle ComPact NS1600 fixed direct front rotary handle vertical 4P 1 direct 36; 400 mm 400 mm PrismaSeT P cubicle ComPact NS1600 fixed motor mechanism vertical 3P 1 direct 36; 400 mm 400 mm PrismaSeT P cubicle ComPact NS1600 fixed motor mechanism vertical 4P 1 direct 36; 400 mm 400 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed toggle vertical 3P 1 direct 36; 400 mm 400 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed toggle vertical 4P 1 direct 36; 400 mm 400 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed direct front rotary handle vertical 3P 1 direct 36; 400 mm 400 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed direct front rotary handle vertical 4P 1 direct 36; 400 mm 400 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed motor mechanism vertical 3P 1 direct 36; 400 mm 400 mm PrismaSeT P cubicle ComPact NS630b...1000 fixed motor mechanism vertical 4P 1 direct 36
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 8.000 cm
- Package 1 Width
- 32.200 cm
- Package 1 Length
- 55.500 cm
- Package 1 Weight
- 2.270 kg
- Unit Type of Package 2
- S04
- Number of Units in Package 2
- 3
- Package 2 Height
- 30.000 cm
- Package 2 Width
- 40.000 cm
- Package 2 Length
- 60.000 cm
- Package 2 Weight
- 7.530 kg
- Unit Type of Package 3
- P12
- Number of Units in Package 3
- 24
- Package 3 Height
- 74.000 cm
- Package 3 Width
- 80.000 cm
- Package 3 Length
- 120.000 cm
- Package 3 Weight
- 68.480 kg
- Country of origin
- RO
- Warranty (in months)
- 18
- Suitable for enclosure building width
- 400 mm
- Number of height units
- 11
- Surface finishing
- Powder coating
- Suitable for enclosure building height
- 2000 mm
