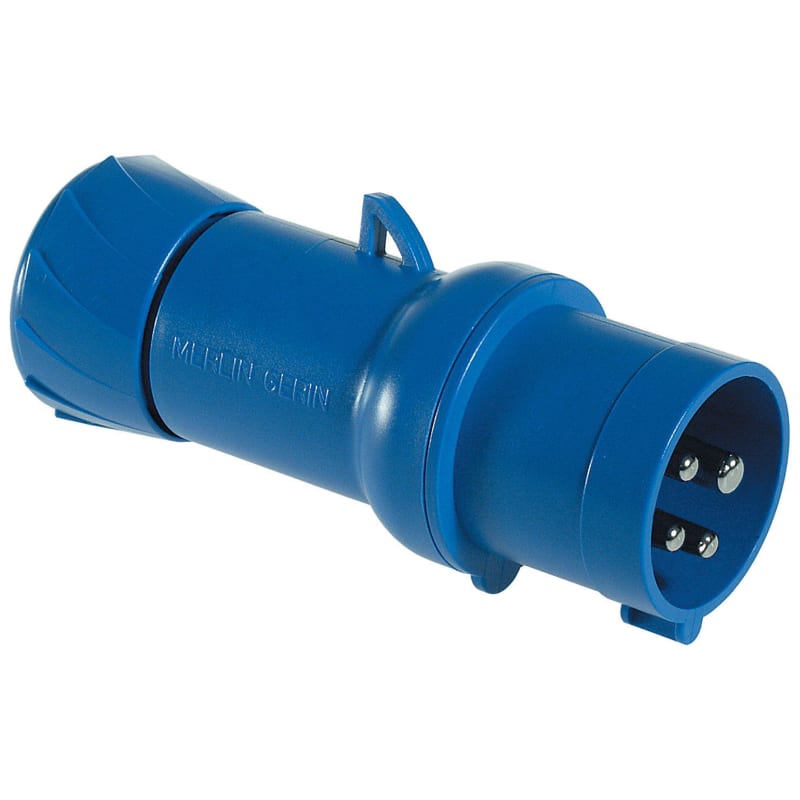

Schneider Electric PratiKa wander plug - straight - 32 A - 3P + E - 200...250 V AC - IP44 PKX32M424
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric PKX32M424 PratiKa plug - straight - 32 A - 3P + E - 200.250 V AC - IP44.
Technical Specifications
- Manufacturer part number (MPN)
- PKX32M424
- EAN / GTIN
- 3303432009441
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Voltage
- 230 V
- IP rating
- IP44
- Rated current
- 32 A
- Range
- PratiKa
- Product or component type
- Wander plug
- Device short name
- PratiKa plug
- Plug, socket category
- Low voltage
- Poles description
- 3P + E
- Network type
- AC
- Outlet standard
- Industrial
- Plug, socket, control station shape
- Straight
- [In] rated current
- 32 A
- [Ue] rated operational voltage
- 200...250 V
- Network frequency
- 50/60 Hz
- Ground lug clockwise position
- 9 h
- Plug, socket material
- Housing: self-extinguishing engineering polymer
- Contacts material
- Sleeves: brass
- Connections - terminals
- Fast connection
- Cable cross section
- 2.5…6 mm²
- Cable outer diameter
- 11.5…21 mm
- cable entry
- Fair lead; Cable gland
- Thread type
- Pg 21
- Product weight
- 0.236 kg
- Height
- 152 mm
- Width
- 76 mm
- Depth
- 76 mm
- Colour
- Grey (RAL 7035)
- Voltage colour
- Blue
- Standards
- IEC 60309-1; IEC 60309-2
- IP degree of protection
- IP44 conforming to IEC 60529
- IK degree of protection
- IK08 conforming to EN 62262
- Fire resistance
- 850 °C conforming to IEC 60695-2-11
- Relative humidity
- 50 % at 40 °C; 70 % at 30 °C; 90 % at 20 °C
- Operating altitude
- 2000 m
- Ambient air temperature for operation
- 35 °C ( 86400 s ) ; -25…40 °C
- Warranty (in months)
- 18
- Number of poles
- 4
- Material
- Plastic
- Surface treatment contacts
- Nickel-plated
- IEC-amperage
- 32 A
- Connection system
- Screwless terminal
- Insert direction
- Straight
- Phase inverter
- No
- Contact material
- CuZn
- Degree of protection (IP)
- IP44
- Military model
- No
- Clock hour position
- 9 h
- Identification colour
- Blue
- Voltage according to EN 60309-2
- 230 V (50+60 Hz) blue
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 3303432009441
- SAP 1200197936
- Code 82139747
