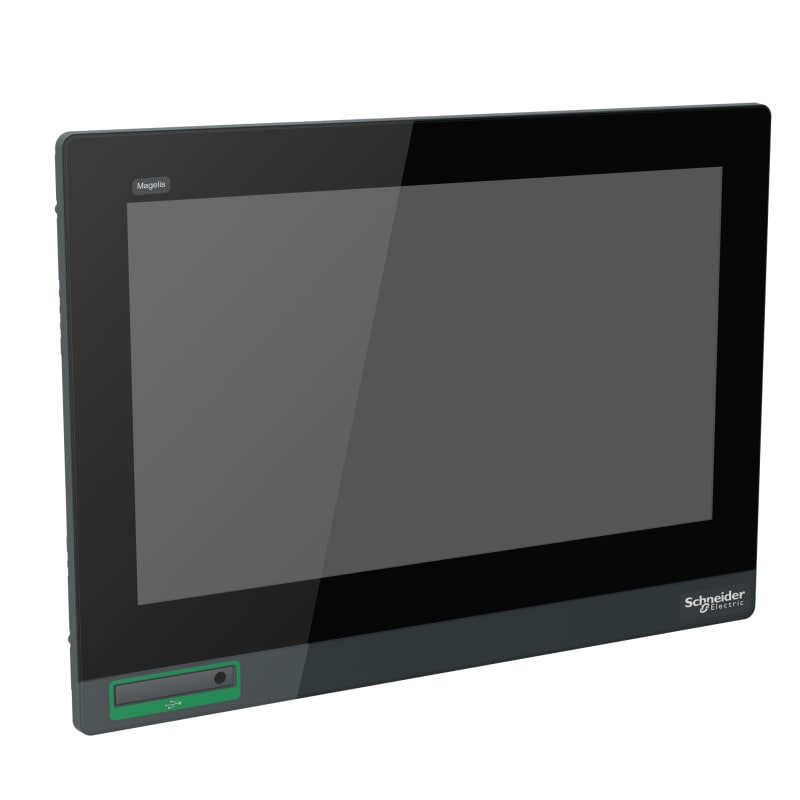

Schneider Electric Flat screen, Harmony GTU, 15 W Touch Smart Display FWXGA HMIDT752

Schneider Electric HMIDT752 15W Touch Display FWXGA.

Manufacturer part number (MPN)

HMIDT752

EAN / GTIN

3606481203465

Sales unit

pcs

Package quantity

14 pcs

Power

15 W

Range of product

Harmony GTU

Terminal type

Touchscreen display

Product or component type

Flat screen

[Us] rated supply voltage

12...24 V DC power supply

Supply voltage limits

10.8…28.8 V

Power consumption in W

17 W

Inrush current

30 A

Integrated connection type

USB 2.0 type A; USB 2.0 type mini B

Touchscreen resolution

2048 x 2048

Pixel resolution

1366 x 768

Display size

15.6 inch

Aspect ratio

4:3

Display type

Colour TFT LCD

Display resolution

1366 x 768 pixels FWXGA

Display colour

16 million colours

Backlight lifespan

50000 hours

Touch panel

Multi-touch projected capactive technology (PCT) 50000000 cycles

Function available

Brightness sensor

Type of cooling

Natural convection

Type of installation

Indoor installation

Cut-out dimensions

396 (+ 1/- 0) x 277 (+ 1/- 0) mm

Width

414 mm

Height

295 mm

Depth

69 mm

Product weight

5 kg

IP degree of protection

Front panel: IP66; Front panel: IP67

NEMA degree of protection

NEMA 4X front panel

Standards

UL 508; ANSI/ISA 12-12-01; Class I division 2 CSA C22.2 No 213; CSA C22.2 No 142; IEC 61132-2

Product certifications

KC; CE; RCM; CULus; UKCA; UKEX

Ambient air temperature for operation

0…55 °C conforming to IEC 61131-2

Ambient air temperature for storage

-20…60 °C

Relative humidity

10…90 % non-condensing

Operating altitude

2000 m

Vibration resistance

3.5 mm constant amplitude (f = 5…9 Hz) conforming to IEC 61131-2; 9.8 m/s² (f = 9…150 Hz) conforming to IEC 61131-2

Shock resistance

147 m/s² conforming to IEC 61131-2

Electromagnetic compatibility

Electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2

Number of Units in Package 1

1

Number of Units in Package 2

16

Country of origin

ID

Warranty (in months)

18

Power consumption

17 W

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

No

Certified for UL hazardous location group B (hydrogen)

No

Certified for UL hazardous location group C (ethylene)

No

Certified for UL hazardous location group D (propane)

No

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

No

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Supply voltage DC

24 V

Voltage type (supply voltage)

DC

With SW interfaces

No

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

Yes

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

No

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

Type of display

TFT

Colour display

Yes

Number of colours of the display

16000000

Number of grey-scales/blue-scales of display

16000000

Screen diagonal

15 inch

Number of pixels, horizontal

1366

Number of pixels, vertical

768

With numeric keyboard

No

With alpha numeric keyboard

No

Touch technology

Resistive touch

With touch screen

Yes

With message indication

No

With message system (incl. buffer and confirmation)

No

Process value representation (output) possible

Yes

Process default value (input) possible

No

With recipes

No

With printer output

Yes

Number of online languages

10

Additional software components, loadable

No

Degree of protection (IP), front side

IP67

Operating temperature

0–50 °C

Suitable for rail mounting

No

Wall mounting/direct mounting

No

Suitable for safety functions

No

Width of the front

414 mm

Height of the front

295 mm

Built-in depth

69 mm

HS Code

8528.59

• EAN 3606481203465
• SAP 1200118780
• Code 81983732
