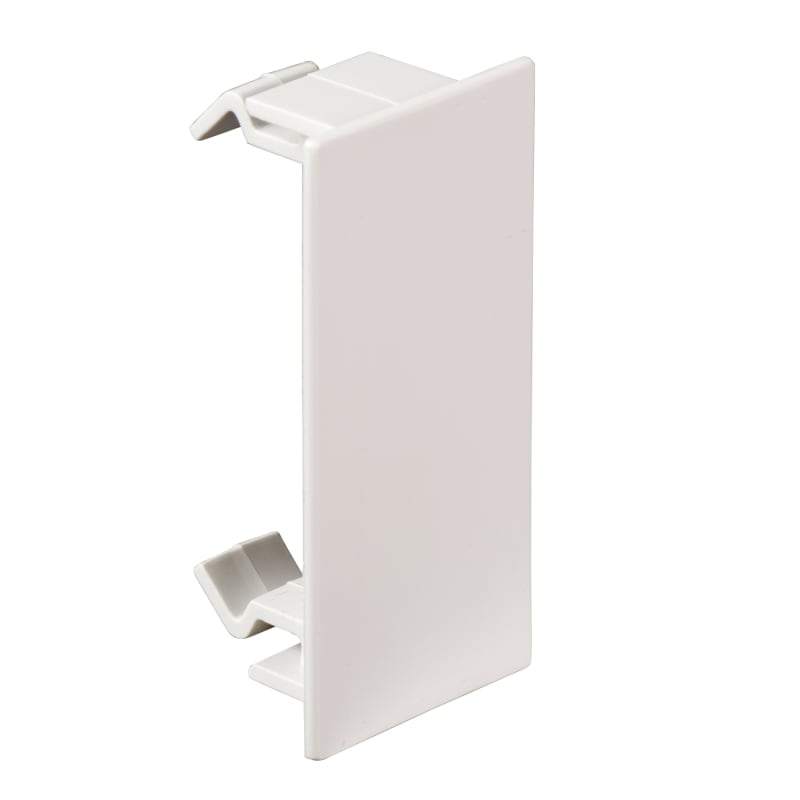

Schneider OptiLine 45 ISM10903P Joint Cover PC/ABS Halogen-Free 75-185mm
Pricing
Request a quote
We reply within 24 hours
Product Description
The Schneider Electric ISM10903P is an OptiLine 45 joint cover piece for the front cover of trunking widths from 75 to 185 mm at 55 mm depth. Snap-fit assembly in polar white halogen-free PC/ABS with IP40 and IK07 ratings for indoor cable management. Supplied in sets of five.
Technical Specifications
- Manufacturer part number (MPN)
- ISM10903P
- EAN / GTIN
- 3606480681929
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range of product
- OptiLine 45
- Cabling installation system
- Trunking
- product type
- Joint cover piece for front cover
- colour
- Polar white (RAL 9003)
- quantity package 1 / unit
- Set of 5
- Trunking material
- Plastic
- Trunking dimension
- 75 x 55 mm; 95 x 55 mm; 140 x 55 mm; 165 x 55 mm; 185 x 55 mm
- fixing mode
- Snap-fitted
- product material
- PC/ABS
- Length
- 23 mm
- Height
- 47 mm
- Width
- 20 mm
- Standards
- 73/23/EEC; 93/68/EEC; EN 50085-1:2005; EN 50085-1:2013/A1; EN 50085-2-1:2006; EN 50085-2-1:2011/A1
- operating temperature
- -25…60 °C
- IP degree of protection
- IP40
- IK degree of protection
- IK07
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Number of Units in Package 3
- 500
- Warranty (in months)
- 18
- Model
- Symmetric
- Halogen free
- Yes
- Suitable for depth of wall duct
- 55 mm
- Material quality
- Polycarbonate (PC)/ABS
- Material
- Plastic
- Impact strength
- IK07
- Degree of protection (IP)
- IP40
- Suitable for wall duct width
- 75–185 mm
- With potential equalization
- No
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 3925.90
Cross References
- EAN 3606480681929
- SAP 1200536260
- Code 82696528
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Flat screen, Harmony GTU, 15 W Touch Smart Display FWXGA HMIDT752
Schneider Electric
Schneider Electric Modular multifunction 3-Phase supply control relay, 5 A, 1 CO, 208...480 V AC RM17TA00
Schneider Electric
Jumper link 2 pole for 16mm² - red
NSYTRAL162
Schneider Electric
Schneider Electric Power cabinet, Schneider StarCharge Fast 720, 480kW, upgradable up to 720kW EVD1S480
Schneider Electric
Schneider Electric Modular 1-Phase voltage control relay, 8 A, 2 CO, 1…100 V AC/DC, 24…240 V AC/DC RM22UA32MR
Schneider Electric
M340 KIT EARTHING, Rack 8 MOD.
BMXXSP0800
Schneider Electric
Schneider Electric TeSys GV4 - magnetic circuit breaker - 50A 3P - with EverLink GV4L50N
Schneider Electric

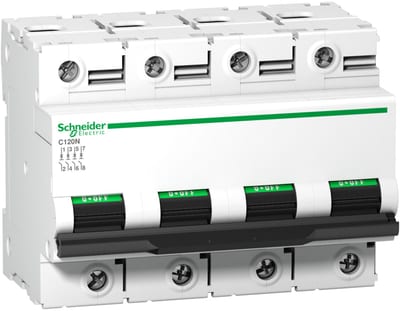

Schneider Electric Miniature circuit breaker (MCB), ACTI9 C120N, 4P, 100A, B curve, 10000A (IEC/EN 60898-1), 10KA (IEC/EN 60947-2) A9N18354
