VOLTMET.VEND.FAS/FAS 0 Still.

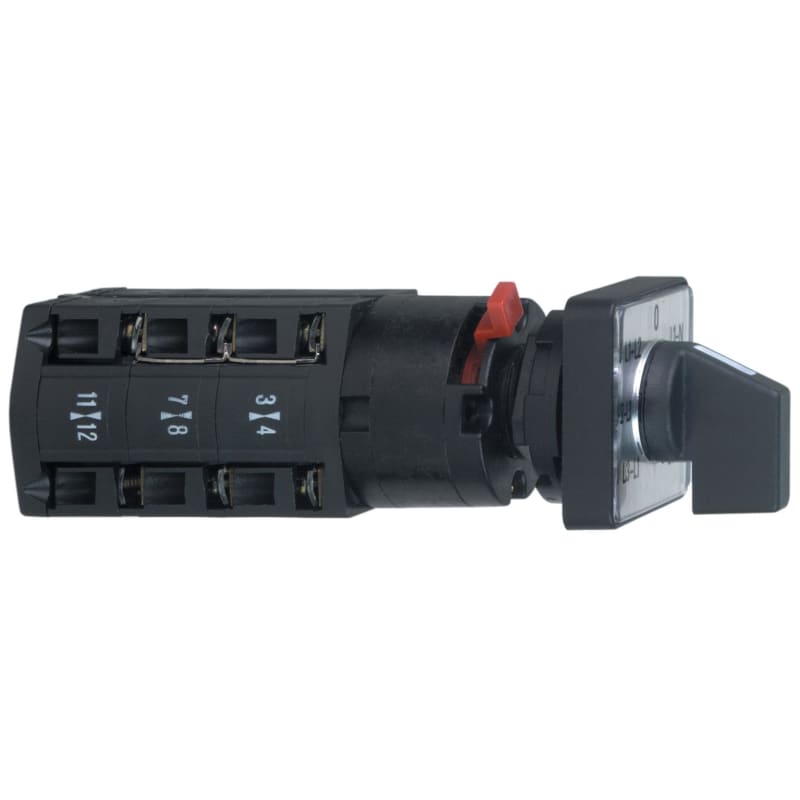

Schneider Electric K10D024MCH Cam Switch volt fas/fas 0 still.

Manufacturer part number (MPN)

K10D024MCH

EAN / GTIN

3389110076752

Sales unit

pcs

Package quantity

65 pcs

Range of product

Harmony K

Product or component type

Complete cam switch

Component name

K10

[Ith] conventional free air thermal current

10 A

Product mounting

Front mounting

fixing mode

Ø 16 or 22 mm hole

Cam switch head type

With front plate 30 x 30 mm

Type of operator

Black handle

Rotary handle padlocking

Without

Presentation of legend

With metallic legend, 0 - L1L2 - L2L3 - L3L1 black marking

Cam switch function

Voltmeter switch

Return

Without

Type of measurement

Between 3 phases

Off position

With Off position

Switching positions

Right: 270° - 315° - 0° - 45°

IP degree of protection

Contact block: IP20; Operating head: IP65 conforming to IEC 60529

Switching angle

45 °

[Ui] rated insulation voltage

440 V (pollution degree 3) conforming to IEC 60947-1

Rated operational power in W

1800 W AC-23A, 220/240 V 3 phases; 370 W AC-23A, 110/120 V 1 phase; 750 W AC-23A, 220/240 V 1 phase

Rated power in hp

1 hp at 220/240 V AC, 3 phases; 0.33 hp at 110/120 V AC, 1 phase; 0.75 hp at 110/120 V AC, 3 phases; 0.75 hp at 220/240 V AC, 1 phase

[Ie] rated operational current AC

10 A at 400 V AC-1; 10 A at 400 V AC-21A; 3 A at 240 V AC-15; 6 A at 120 V AC-15

[Ie] rated operational current DC

10 A at 24 V resistive load; 0.3 A at 220 V resistive load; 0.7 A at 110 V resistive load

Electrical durability

100000000 cycles

Short-circuit protection

10 A cartridge fuse, type gG

[Uimp] rated impulse withstand voltage

4 kV conforming to IEC 60947-1

Contact operation

Slow-break

Electrical connection

Captive screw clamp terminals, clamping capacity: 2 x 1.5 mm²

Mechanical durability

1000000 cycles

CAD overall width

30 mm

CAD overall height

30 mm

CAD overall depth

88 mm

Product weight

0.045 kg

Standards

CENELEC EN 50013; EN/IEC 60947-3; EN/IEC 60947-5-1

Product certifications

CULus

Protective treatment

TC

Ambient air temperature for operation

-20…55 °C

Ambient air temperature for storage

-40…70 °C

Electrical shock protection class

Class II conforming to IEC 60536

Number of Units in Package 1

1

Number of Units in Package 2

65

Warranty (in months)

18

Measurement between phases possible

Yes

Measurement between phase and neutral conductor possible

No

With zero (off) position

Yes

Device construction

Front installation

Suitable for distribution board

No

With control element

Yes

Degree of protection (IP)

IP65

Country of origin

Austria

HS Code

8536.50
