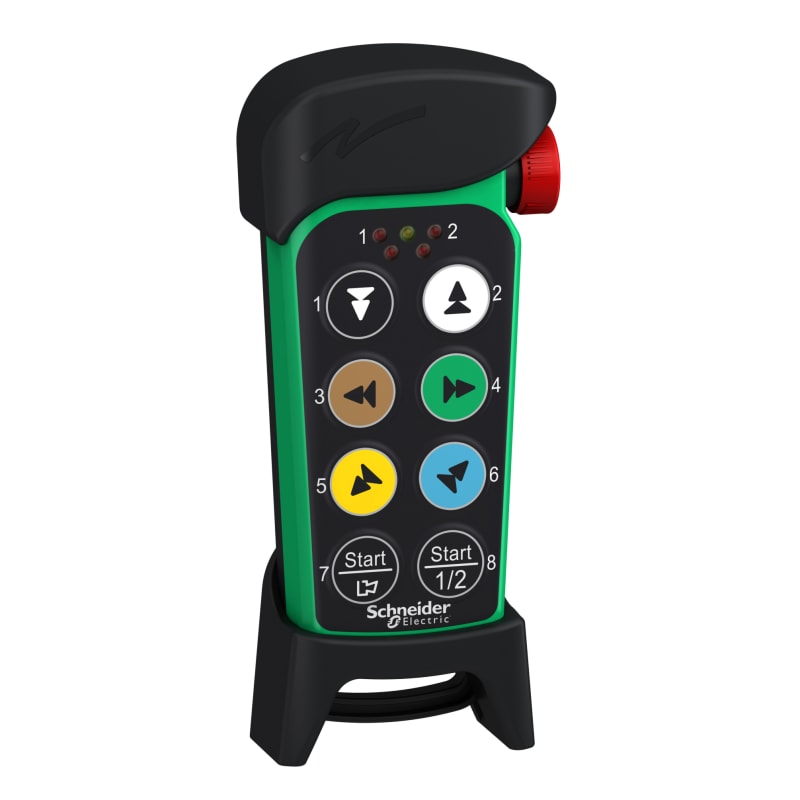

Schneider Electric ZART8LS Harmony eXLhoist Compact Remote Control with 6 Motion Buttons
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ZART8LS is a hand-held Harmony eXLhoist Compact wireless transmitter with 6 configurable motion push-buttons, 2 configurable auxiliary push-buttons, 5 LEDs and an emergency stop. Zigbee 2.4 GHz, 100 m free-field range, IP65, Li-Ion powered with 150 h autonomy. Ambient operating range -20 to 55 degrees C.
Technical Specifications
- Manufacturer part number (MPN)
- ZART8LS
- EAN / GTIN
- 3606481389107
- Sales unit
- pcs
- Package quantity
- 18 pcs
- Range of product
- Harmony eXLhoist
- Product or component type
- Hand-held remote control
- Device short name
- ZART
- Control button type
- 6 configurable motion push-button; 2 configurable auxiliary push-button
- Material
- Protective cover: EPDM rubber; Push-button cover: polyurethane; Enclosure: ABS + PC
- Display type
- 5 LEDs
- operating distance
- 50 m
- Communication network type
- Wireless: Zigbee
- Transmission frequency
- 2.4 GHz
- Maximum sensing distance
- 100 m in free field
- Response time
- < 500 ms at simplex
- Charging time
- 10800 s; 0 s
- Autonomy
- 150 h Li-Ion (Lithium-Ion); 100 h
- Mechanical durability
- 1000000 cycles
- Width
- 85 mm
- Height
- 193 mm
- Depth
- 43 mm
- Product weight
- 0.3 kg
- Radio agreement
- IC; FCC
- IP degree of protection
- IP65
- Ambient air temperature for operation
- -20…55 °C
- Ambient air temperature for storage
- -20…45 °C
- Operating altitude
- 0...2000 m
- Storage altitude
- 0…3000 m
- Relative humidity
- 0…95 % at -20…60 °C operating
- Product certifications
- CE
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 18
- Country of origin
- CN
- Warranty (in months)
- 18
- Accessory
- Yes
Standards & Compliance
- HS Code
- 8526.92
Cross References
- EAN 3606481389107
- SAP 1200455876
- Code 82518867
Product Documentation
