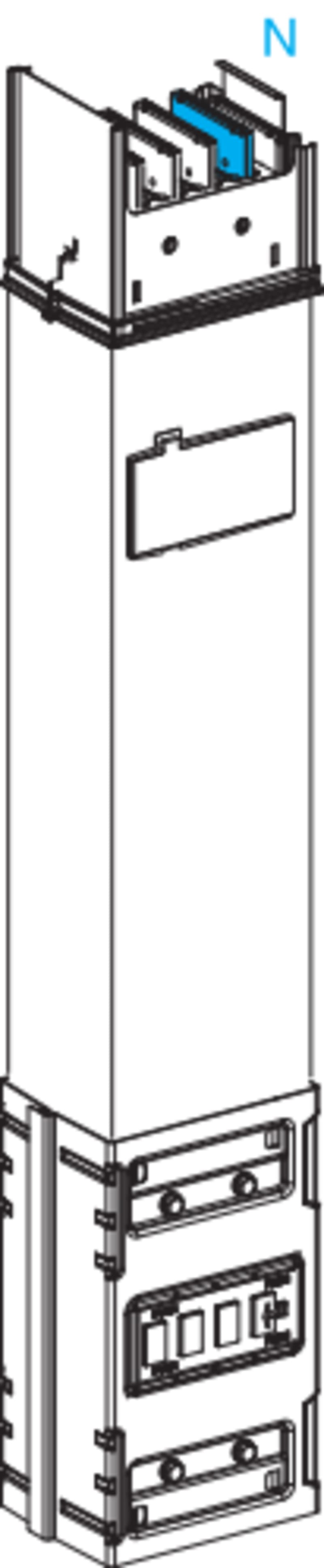

Ladders 800-1000A 0,8M 1 Outlet

Schneider Electric KSA1000ED4081 Ladders 800-1000A 0,8M 1 outlet.

Manufacturer part number (MPN)

KSA1000ED4081

EAN / GTIN

3606480003783

Sales unit

pcs

Range

Canalis

Device short name

KSA

Offer type

Rising main

Product or component type

Busbar trunking

Busbar description

Vertical distribution length

Product compatibility

Canalis KSA busbar trunking 500…1000 A

Conductors material

Aluminium

Busbar trunking polarity

3L + N + PE

Number of tap-off outlets

1

[Ie] rated operational current

1000 A at 35 °C

IP degree of protection

IP55 conforming to IEC 60529

mounting mode

By screws

Dimension type

Fix

Length

0.8 m

Colour

White (RAL 9001)

Number of poles

4

Neutral position

Right

Mounting position

Vertical

[Ue] rated operational voltage

230...690 V

Network frequency

50/60 Hz

[Uimp] rated impulse withstand voltage

8 kV

[Ui] rated insulation voltage

690 V

[Icw] rated short-time withstand current

37.4 kA

[Ipk] rated peak withstand current

78.7 kA

Electrical connection

Lubricated sliding contact

Width

113 mm

Height

146 mm

Product weight

16.8 kg

Radiated magnetic field

1.27 µT

Thermal stress limit

1758000 kA².s

THDI

0…15 % 1000 A; 15…33 % 800 A; 33…100 % 630 A

Maximum voltage drop

<0.005 V with power factor = 1 at 50 Hz with 1A for 100 m long; <0.007 V with power factor = 0.9 at 50 Hz with 1A for 100 m long; <0.007 V with power factor = 0.8 at 50 Hz with 1A for 100 m long; <0.008 V with power factor = 0.7 at 50 Hz with 1A for 100 m long

Standards

IEC 61439-1; IEC 61439-6

IK degree of protection

IK08 conforming to IEC 62262

Ambient air temperature for operation

35 °C (without derating); 55 °C (with derating factor)

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

12.500 cm

Package 1 Width

17.000 cm

Package 1 Length

103.000 cm

Package 1 Weight

19.480 kg

Unit Type of Package 2

P2M

Number of Units in Package 2

4

Package 2 Height

150.000 cm

Package 2 Width

200.000 cm

Package 2 Length

120.000 cm

Package 2 Weight

89.920 kg

Country of origin

FR

Warranty (in months)

18

Number of conductors (without earthing)

4

Rated current AC 50 Hz

1000 A

Rated voltage AC 50 Hz

230–690 V

Number of tap-off units

1

Expansion equalization

Yes

Fireproof bulkhead

No

RAL-number

9001

Degree of protection (IP)

IP55

HS Code

8536.90

• EAN 3606480003783
• SAP 1200721732
• Code 83832382
