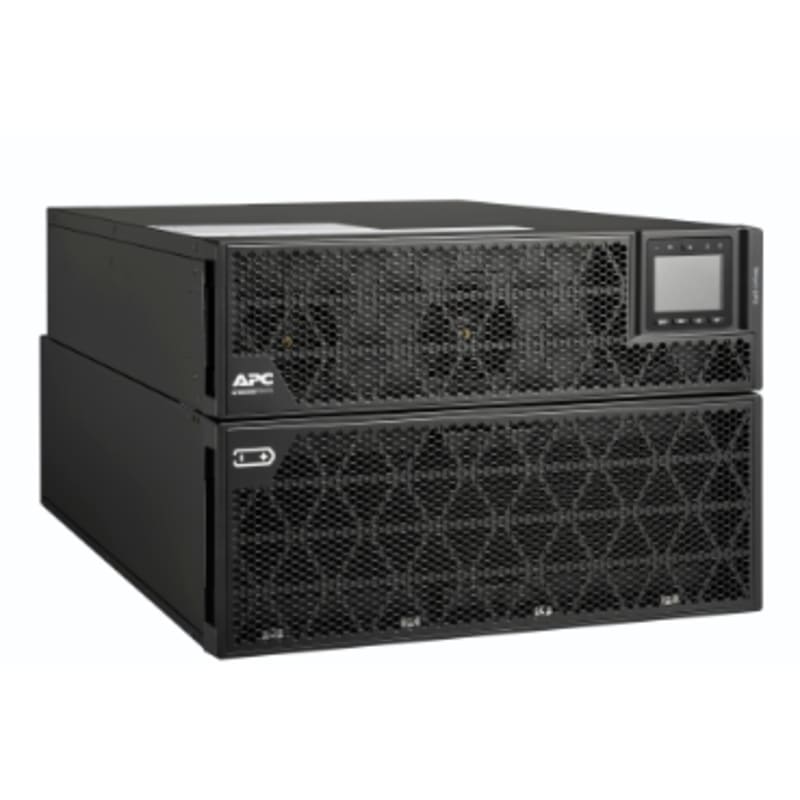

SRTG 15KVA 230V RM (SRTG15KXLI)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric SRTG15KXLI APC -UPS On-Line, 15kVA/15kW, Rack/Tower, 230V/400V, HW(3P+N+E)(1P+N+PE), NMC, without rail kit.
Technical Specifications
- Manufacturer part number (MPN)
- SRTG15KXLI
- EAN / GTIN
- 0731304411888
- Sales unit
- pcs
- Voltage
- 230 V
- Main input voltage
- 230 V AC 1 phase; 400 V AC 3 phases
- Other input voltage
- 380...415 V; 220...240 V
- Maximum input current
- 66 A
- Input harmonic distortion
- Less than 5 % for full load
- Load power factor
- From 0.9 leading to 1 lagging
- Switching current capacity
- 100 A
- Efficiency at full load
- 160...285 V full load; 100...285 V half load
- Input connection
- 1 hard wire 5 wire (3P + N + E); 1 hard wire 3-wire (1P + N + E)
- Input frequency
- 40...70 Hz auto-sensing
- Output voltage
- 230 V AC 1 phase; 400 V AC 3 phases
- Other output voltage
- 230 V
- Rated power in W
- 15000 W
- Rated power in VA
- 15000 VA
- Output connection
- 1 IEC 60320
- Bypass type
- Internal bypass (automatic and manual)
- Crest factor
- 3 : 1
- Harmonic distortion
- Less than 2 %
- Maximum configurable power in VA
- 15000 VA
- Maximum configurable power in W
- 15000 W
- Output overload operation
- 60 seconds at 125% and 30 seconds at 150%
- UPS topology
- On-Line
- Waveform type
- Its wave
- Efficiency
- 94.5 %
- Output frequency
- 50/60 Hz +/- 4 Hz sync to mains
- Replacement battery
- APCRBC172
- Run Time
- View Runtime Graph
- Additional information
- Configurable for 380 : 400 or 415 V 3 Phase nominal output voltage; Configurable for 220 : 230 or 240 nominal output voltage
- Battery type
- Lead-acid external included
- Emergency power off
- Yes
- Free slot
- 0
- Preinstalled device
- Network management card 3 with environmental monitoring
- Alarm
- Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm
- UPS connectivity
- Serial port; USB port; Pre-installed network management card 3
- Surge energy rating
- 600 J
- Noise filtering
- Full time multi-pole noise filtering : 0.3% IEEE surge light-through : zero clamping response time : meets UL 1449
- Number of rack unit
- 7U
- Color
- Black (RAL 9005)
- Height
- 306 mm
- Width
- 440 mm
- Depth
- 835 mm
- Product weight
- 142.5 kg
- Mounting location
- Front
- Mounting preference
- Lower
- Mounting mode
- Rack-mounted
- Two post mountable
- 0
- USB compatible
- Yes
- Mounting position
- Horizontal
- Provided equipment
- 1 x USB cable; 1 x RJ45 cable; 2 x rack mounting brackets; 2 x stabilization/wall mounting feet; 2 x installation manual; 1 x C13-C14 power cord; 1 x external battery pack; 1 x battery cable
- Number of power module filled slots
- 0
- Number of power module free slots
- 0
- Redundant
- No
- Range of product
- Smart-UPS On-Line
- Product or component type
- Uninterruptible power supply (UPS)
- Product certification
- CE; UKCA; TISI
- Standard
- EN/IEC 62040-1:2019/A11:2021; EN/IEC 62040-2:2006/AC:2006; EN/IEC 62040-2:2018
- Ambient air temperature for operation
- 0…40 °C
- Ambient air temperature for storage
- -15…45 °C
- Storage altitude
- 0…15000 m
- IP protection
- IP20
- Relative humidity
- 0…95 % non-condensing
- Storage relative humidity
- 0…95 % non-condensing
- Acoustic level
- 58 dBA
- Heat dissipation
- 2866 Btu/h
- Operating altitude
- 0...3000 m
- Battery voltage
- +/- 192 V
- Extendable runtime
- 1
- Included battery module
- 0
- Empty battery slot
- 0
- Typical recharge time
- 4 h
- RBC quantity
- 2
- Battery life
- 3…5 year(s)
- Battery charging power
- 2160 W rated
- Number of Units in Package 1
- 1
- Country of origin
- CN
- Warranty (in months)
- 24 Battery|36 UPS
Standards & Compliance
- HS Code
- 8504.40
Cross References
- EAN 0731304411888
- SAP 1200723099
- Code 83853046
