Image not available for this product
Euro utt 2P 10A screw 1 mod al
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NU303130 Euro outlet 2P 10A screw terminal 1 module aluminium.
Technical Specifications
- Manufacturer part number (MPN)
- NU303130
- EAN / GTIN
- 3606489453794
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Product type
- Euro socket outlet 2P (unearthed), New Unica
- Mounting
- Flush-mounted
- Rated current
- 10 A
- Rated voltage
- 230 V
- Number of modules
- 1
- Terminals
- Screw terminals, 0...4 mm2
- Contact material
- CuZn37
- Colour / finish
- Aluminium
- Impact protection
- IK04
- Standard
- UNE 20315-1-1:1994
- Number of poles
- 2P
- Nominal current
- 10 A
- Nominal voltage
- 230 V
- Mounting method
- Flush-mounted
- Assembly arrangement
- Basic element with central cover plate
- Colour
- Aluminium
- Model
- CEE 7/1 unearthed
- Halogen free
- Yes
- Number of units
- 1
- Lockable
- No
- With hinged lid
- No
- Connection type
- Screwed terminal
- With signal lamp
- No
- Number of socket outlets
- 1
- Number of phases
- 1
- With enhanced contact protection
- Yes
- Frequency
- 50–60 Hz
- With on/off switch
- No
- Protective contact
- No
- Label space/information surface
- No
- Eject-mechanism
- No
- Material quality
- Thermoplastic
- Rotated central insert
- No
- Overvoltage protection
- No
- Fault current protection
- No
- Special power supply
- None
- Insulated mounting
- No
- Material
- Plastic
- Type of fastening
- Snap mounting (engagement)
- Imprint/indication
- None
- RAL-number (similar)
- 9003
- Impact strength
- IK04
- Concurrently switching neutral conductor
- No
- Transparent
- No
- Surface finishing
- Glossy
- With miniature fuse
- No
- With loop through function
- No
- Suitable for degree of protection (IP)
- IP3X
- Device width
- 22.5 mm
- Device height
- 45 mm
- Device depth
- 39.3 mm
- With function lighting
- No
- With orientation lighting
- No
- With built-in USB power supply
- No
- IFTTT support available
- No
- Number of active contacts (round)
- 2
- Protective earth pin round
- Yes
- Min. depth of built-in installation box
- 40 mm
- With Wi-Fi signal repeater
- No
- Compatible with Apple HomeKit
- No
- Compatible with Google Assistant
- No
- Compatible with Amazon Alexa
- No
- Metallic colour
- Yes
- With built-in bluetooth speaker
- No
- Number of loop throughs
- 1
- Socket outlets phase-separated
- No
- Anti-bacterial treatment
- No
- Country of origin
- Spain
Standards & Compliance
- Standard
- UNE 20315-1-1:1994
- Material
- CuZn37 (contacts)
- HS Code
- 8536.69
Cross References
- EAN 3606489453794
- SAP 1200478248
- Code 82564112
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric switch ACTI9 iSW - 1 pole - 20 A - 250V A9S61120
Schneider Electric
TeSys GV auxiliary contact Snap-In 1NO+1NC
GVAE11A
Schneider Electric

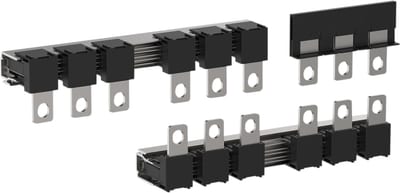

Y/D kit for LC1G115-225
LA9GQQ330
Schneider Electric

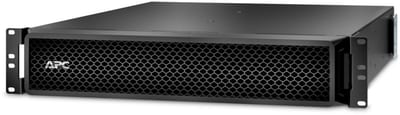

APC SRT 72V Batt.pk 2,2KVA Rack
SRT72RMBP
Schneider Electric

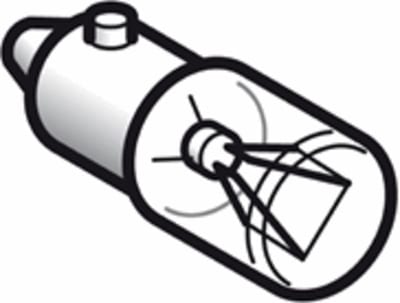

Schneider Electric clear incandescent bulb with BA9S base - 12 V / 2.6 W DL1CE012
Schneider Electric

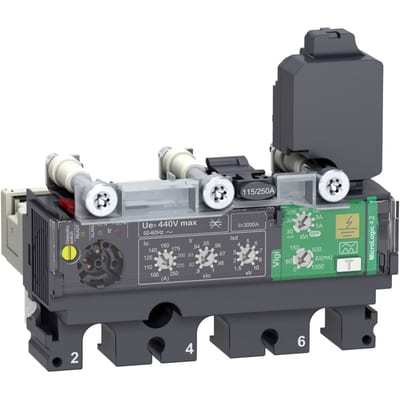

Schneider Electric Trip unit MicroLogic Vigi 4.2, ComPacT NSX100/160/250, 3 poles, electronic basic and earth leakage protections, 40A C1034V040
Schneider Electric

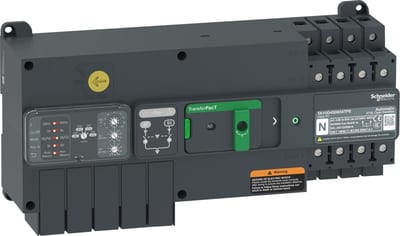

Schneider Electric transfer switch, TransferPacT automatic, 63A, 400V, 4P, rotary, frame 100A TA10D4S0634TPE
