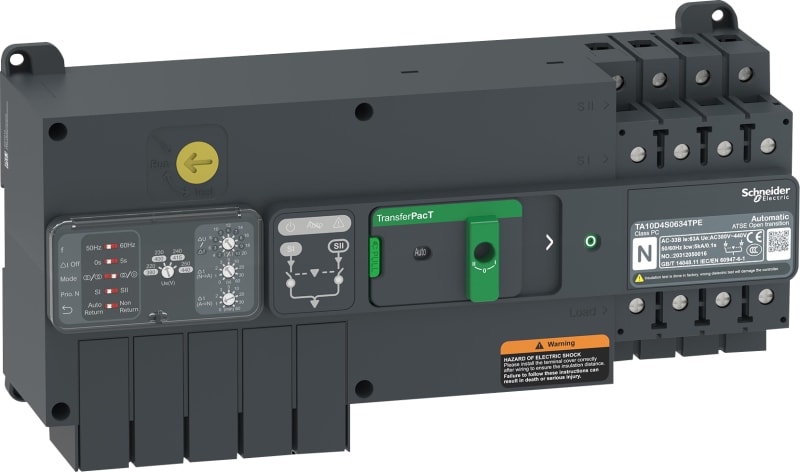

Schneider Electric transfer switch, TransferPacT automatic, 63A, 400V, 4P, rotary, frame 100A TA10D4S0634TPE

Schneider Electric TA10D4S0634TPE Changeover unit-automatic-TransferPacT-Automatic-In=63A-400V-4P-user interface rotary handle-100A frame.

Manufacturer part number (MPN)

TA10D4S0634TPE EAN / GTIN: 3606481065780 Sales unit: pcs Range of product: TransferPacT Product or component type: Automatic transfer switch Device application: Change source of supply Poles description: 4P Network type: AC Network frequency: 50/60 Hz Downside connection: Screwed mounting mode: Fixed Upside connection: Screwed Contact position indicator: Yes [Icm] rated short-circuit making capacity: 15 kA switch-disconnector alone 400 V AC at 50 Hz; 75 kA with upstream protection circuit breaker 400 V AC at 50 Hz Suitability for isolation: Yes Transfer switch class: PC Number of contact position: 3 Signal contacts composition: 1 NO + 2 NC; 1 NC + 2 NO; 2 NO Utilization category: AC-33B [Ue] rated operational voltage: 400 V AC 50/60 Hz Control type: Rotary knob; Selector switch Operating mode: Automatic; Manual Mounting support: Plate; DIN rail Locking options description: Padlock in OFF position Rated duty: Uninterrupted [Ui] rated insulation voltage: Switch: 800 V; Controller: 500 V [Uimp] rated impulse withstand voltage: Switch: 6 kV; Controller: 6 kV [Ie] rated operational current: 63 A Mechanical interlocking: With mechanical interlocking Mechanical durability: 8000 cycles Connection pitch: 18 mm [Icw] rated short-time withstand current: 5 kA during 0.1 s Height: 147 mm Width: 310 mm Depth: 94 mm Product weight: 3.4 kg [Ith] conventional free air thermal current: 63 A at 60 °C Standards: IEC 60947-6-1 Product certifications: CE; CB; CCC IP degree of protection: Front face: IP40 auto mode; Inside the enclosure: IP20 manual mode Ambient air temperature for operation: -25…70 °C Ambient air temperature for storage: -40…85 °C Pollution degree: 3 Unit Type of Package 1: PCE Number of Units in Package 1: 1 Package 1 Height: 13.600 cm Package 1 Width: 21.100 cm Package 1 Length: 36.700 cm Package 1 Weight: 3.890 kg Country of origin: CN Warranty (in months): 18 Rated permanent current Iu: 63 A Number of poles: 4 With zero (off) position: Yes Housing material: Plastic With retraction in 0-position: No Degree of protection (IP), front side: IP20 Number of auxiliary contacts as change-over contact: 3 Type of electrical connection of main circuit: Screw connection Suitable for floor mounting: No Suitable for front mounting: No Suitable for distribution board installation: Yes Complete device in housing: Yes

HS Code

8536.50

• EAN 3606481065780
• SAP 1200586028
• Code 82956276
