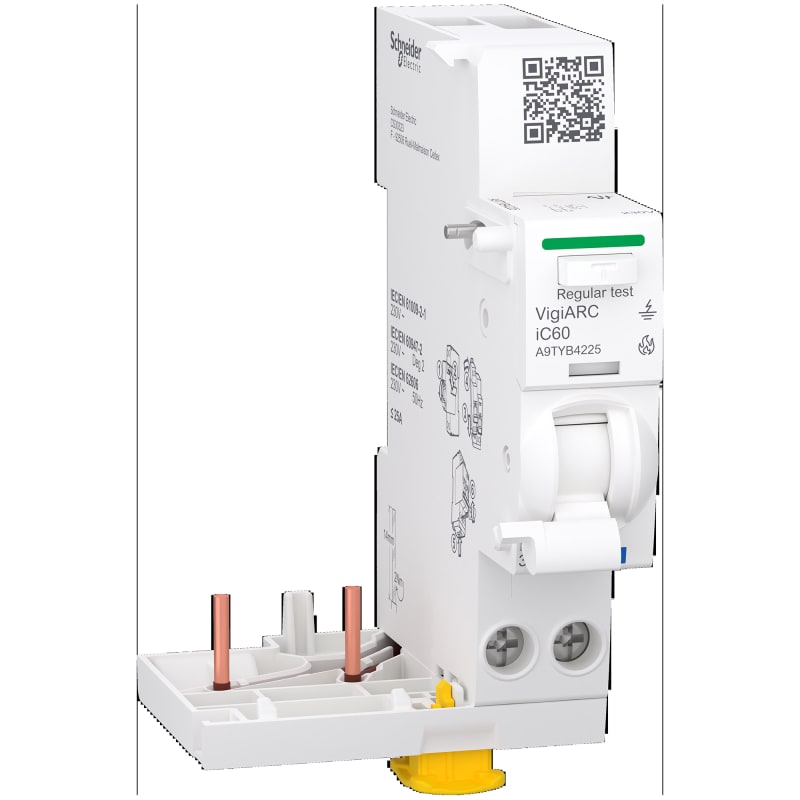

Schneider Electric Arc fault detection with residual current protection add-on block, ACTI9 VigiARC IC60, 2P, 25A, 30MA, type A-SI A9TYB4225

Schneider Electric A9TYB4225 Vigi iC60L - arc-fault protection- and residual current module - 2P - 25A A-SI 30 mA.

Manufacturer part number (MPN)

A9TYB4225

EAN / GTIN

3606481906021

HS code

8536.90

Sales unit

pcs

Package quantity

17 pcs

Range of product

Acti9

Product or component type

Arc fault detection with residual current protection add-on block

Product name

Acti9 VigiARC iC60

Device short name

VigiARC iC60

Poles description

2P

Neutral position

Left

[In] rated current

25 A

Network type

AC

Network frequency

50 Hz

[Ue] rated operational voltage

230 V AC

Residual current tripping technology

Voltage independent

Earth-leakage sensitivity

30 mA

Earth-leakage protection class

Type A-SI (Super Immunised)

Earth-leakage protection time delay

Instantaneous

Electrical data recording

Date and time; Maintenance indicators

9 mm pitches

2

Device location in system

Outgoer

[Ui] rated insulation voltage

250 V AC

Threshold tripping voltage

275 V for +/- 5 V

[Uimp] rated impulse withstand voltage

4 kV

Local signalling

ON, OFF, fault trip; LED arc fault diagnostic

mounting mode

Clip-on

Mounting support

DIN rail

Colour

White (RAL 9003)

Mechanical durability

20000 cycles

Electrical durability

10000 cycles > 25 A; 20000 cycles <= 25 A

Connections - terminals

Tunnel type terminals1…10 mm² flexible; Tunnel type terminals1…16 mm² rigid

Wire stripping length

14 mm

Tightening torque

2 N.m

Height

91 mm

Width

54 mm

Depth

73 mm

Product weight

102 g

Product compatibility

Single terminal

IP degree of protection

IP20 conforming to IEC 60529

Pollution degree

2

Tropicalisation

Severity B conforming to IEC 60068-2-30 for 28 d

Operating altitude

2000 m

Ambient air temperature for operation

-25…40 °C

Ambient air temperature for storage

-40…80 °C

Standards

EN/IEC 62606; EN/IEC 61009-1; EN/IEC 61009-2-1

Quality labels

IMQ

Number of Units in Package 1

1

Number of Units in Package 2

17

Warranty (in months)

18

HS Code

8536.90
