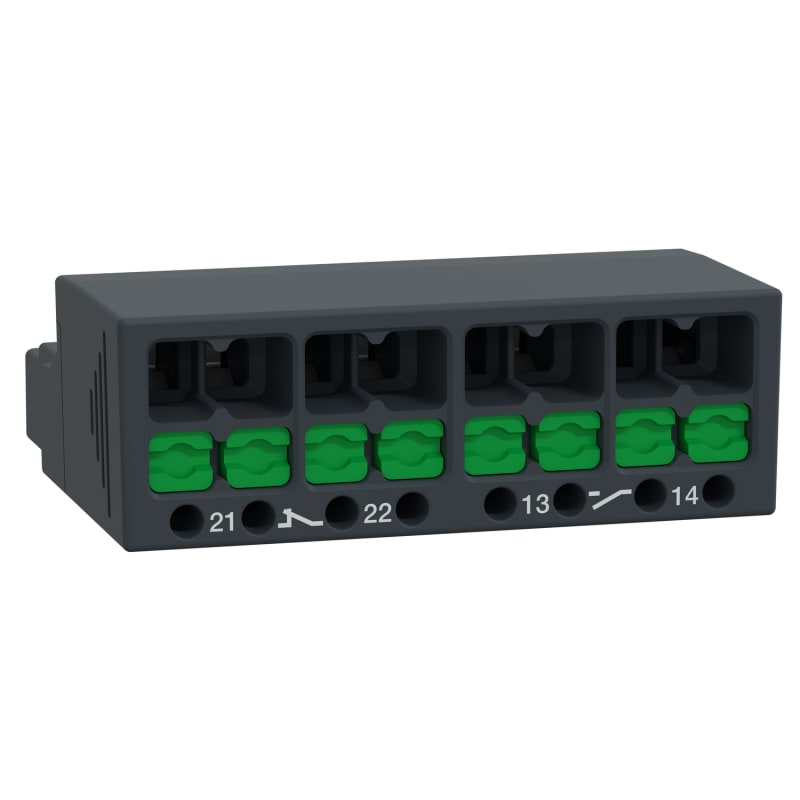

TeSys GV auxiliary contact Snap-In 1NO+1NC
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric GVAE11A Auxiliary Contact Block, TeSys Deca,1NO+1NC, front mounting, Snap-In terminals,for GV2.
Technical Specifications
- Manufacturer part number (MPN)
- GVAE11A EAN / GTIN: 3606487541936 Sales unit: pcs Package quantity: 15 pcs Contact configuration: 1 NO + 1 NC Range: TeSys; TeSys Deca Device short name: GVAE Product or component type: Auxiliary contact block Product compatibility: GV2P; GV2L; GV2ME; GV2LE; GV2RT; GV3P; GV3L; GV2LM Mounting location: Front side Pole contact composition: 1 NO + 1 NC Connections - terminals: Snap-in terminal: 2 cable(s) 0.5…2.5 mm² - solid; Snap-in terminal: 2 cable(s) 0.5…4 mm² - flexible without cable end; Snap-in terminal: 2 cable(s) 0.5…2.5 mm² - flexible with cable end; Snap-in terminal: 2 cable(s) (20 AWG...12 AWG) - solid; Snap-in terminal: 2 cable(s) (20 AWG...10 AWG) - stranded [Ui] rated insulation voltage: 300 V conforming to UL 508; 300 V conforming to CSA C22.2 No 14; 250 V conforming to IEC 60947-1 [Ue] rated operational voltage: 24...240 V AC; 24...60 V DC [Ith] conventional free air thermal current: 2.5 A Mechanical durability: 100000 cycles minimum switching current: 5 mA minimum switching voltage: 17 V Protection type: GG fuse 10 A; GB2CB06 circuit breaker 10 A maximum Rated operational power in VA: 120 VA at 110…120 V AC-15 - electrical durability: 100000 cycles; 120 VA at 230…240 V AC-15 - electrical durability: 100000 cycles; 48 VA at 24 V AC-15 - electrical durability: 100000 cycles; 60 VA at 48 V AC-15 - electrical durability: 100000 cycles Rated operational power in W: 15 W at 48 V DC-13 - electrical durability: 100000 cycles; 24 W at 24 V DC-13 - electrical durability: 100000 cycles; 9 W at 60 V DC-13 - electrical durability: 100000 cycles Height: 15.5 mm Width: 45 mm Depth: 41 mm Product weight: 25 g Colour: Dark grey Environmental characteristic: Normal environment Standards: EN/IEC 60947-5-1; UL 60947-4-1; CSA C22.2 No 60947-4-1; IEC/EN 60335-1:Clause 30.2; IEC/EN 60335-2-40:Annex JJ Product certifications: CB Scheme; CE; UKCA; CCC; cULus Number of Units in Package 1: 1 Country of origin: CZ Warranty (in months): 18
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606487541936
- SAP 1200879533
- Code 84149652
Product Documentation
