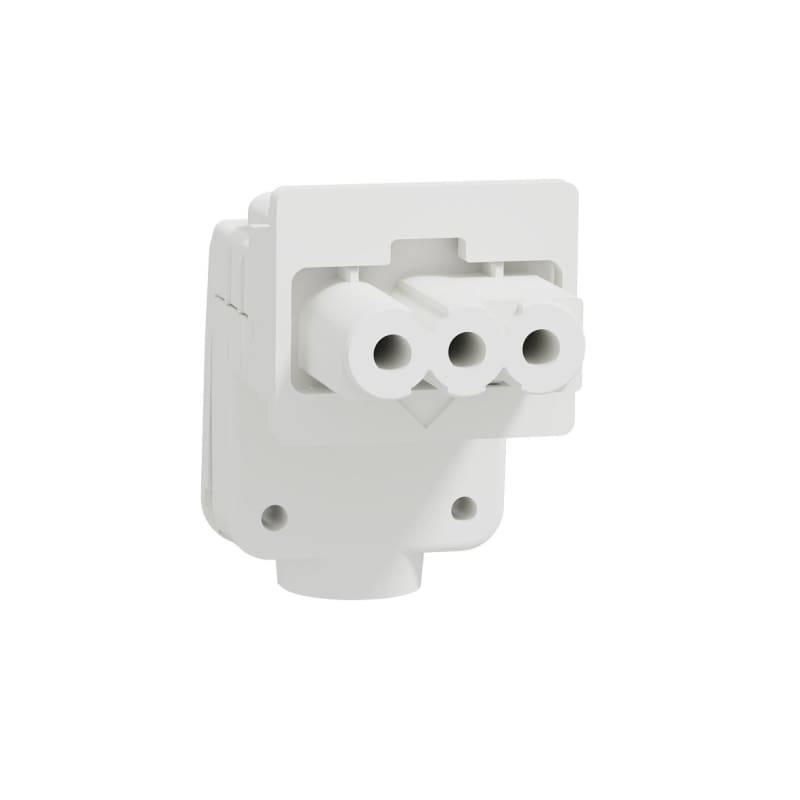

Connector mini female vinkl 5ST
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric INS44306 Connector Mini Female Angled 5 pcs.
Technical Specifications
- Manufacturer part number (MPN)
- INS44306
- EAN / GTIN
- 3606489820374
- Sales unit
- pcs
- Package quantity
- 36 pcs
- Rated voltage
- 250 V
- Rated current
- 16 A
- Number of poles
- 3
- Degree of protection (IP)
- IP20
- Connection type
- Screw connection
- Model
- Plug
- Cable diameter
- 5.5–8.5 mm
- Connection cross section (fine-strand)
- 1.5–2.5 mm²
- Number of connections per pole
- 1
- Pole codification
- 1, 2, PE
- Mechanical coding
- Yes
- Type of locking
- Integrated in plug-in connector
- With strain relief
- Yes
- Max. continuous temperature resistance contact part
- 100 °C
- Housing material
- Polyamide (PA)
- Halogen free
- Yes
- Fire load
- 0.06 kWh
- Contact material
- CuZn
- Surface treatment contacts
- Silver-plated
- Pollution degree
- 2
- Rated surge voltage
- 4 kV
- Length
- 35 mm
- Height
- 32 mm
- Width
- 24 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.69
Cross References
- EAN 3606489820374
- SAP 1200478224
- Code 82563074
Product Documentation
More from Schneider Electric
Schneider Electric
ICV40H RCBO 1PN C 13A 30MA
A9DC4613
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX500 TM DC EP, 50KA/1500VDC, 4 poles, TM-DC trip unit 500A C50F4TM500D3
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX100HB2, 100KA/690VAC, 3 poles, MicroLogic 2.2M trip unit 50A C10W32M050
Schneider Electric
Schneider Electric set of 2 PanelSeT SF side plates of the centred fixed rack - 1800X800 mm NSYRC18
Schneider Electric
Schneider Electric Circuit breaker frame, ComPacT NS630BLB, 200KA at 415VAC, 630A, 4P, fixed, manually operated, without control unit C063B4FM
Schneider Electric

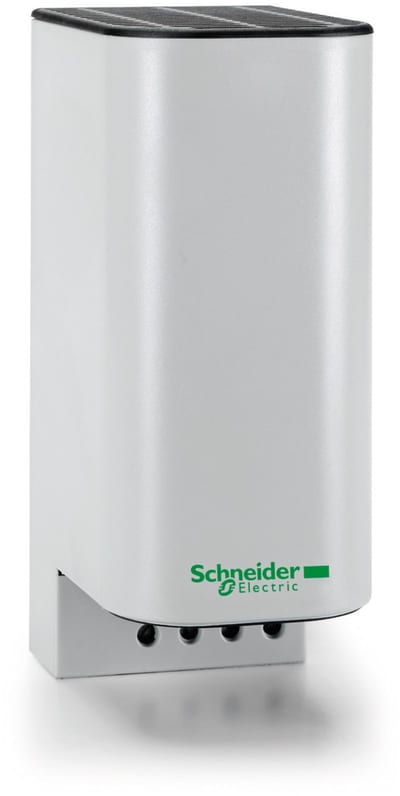

Schneider Electric ClimaSys PTC heating resistance 100W, 12-24V insulate NSYCR100WU1C
Schneider Electric

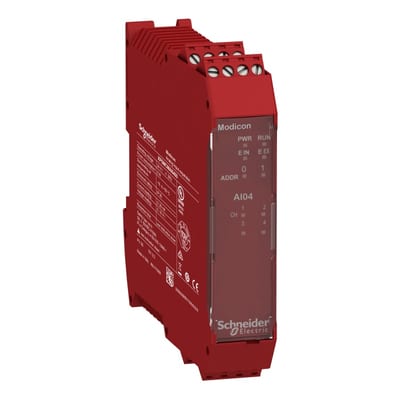

Schneider Electric 4 analog Input expansion screw term XPSMCMAI0400
Schneider Electric

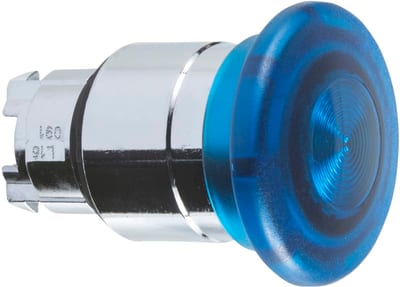

Illuminated mushroom pushbutton, momentary, blue
