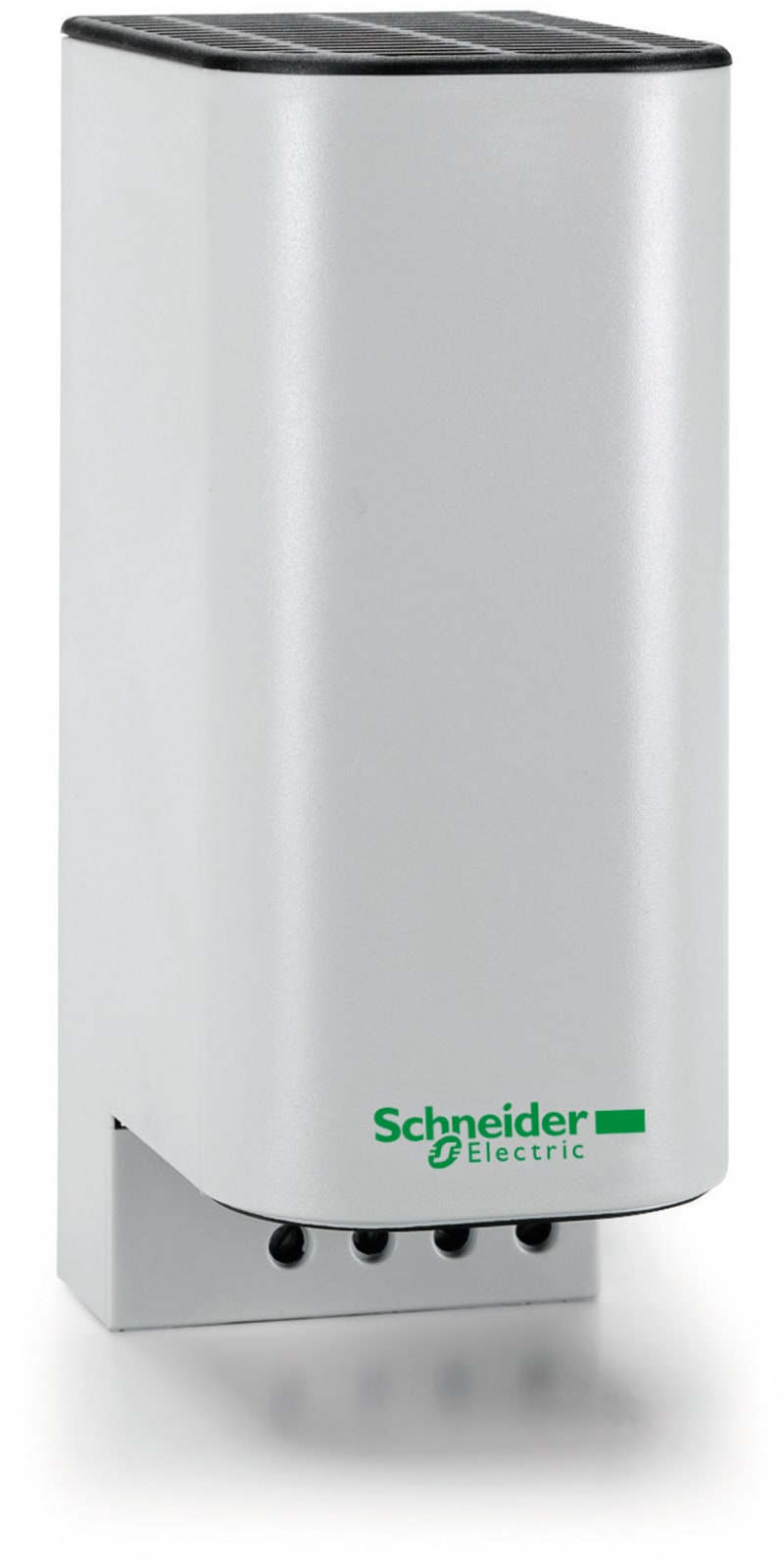

Schneider Electric ClimaSys PTC heating resistance 100W, 12-24V insulate NSYCR100WU1C
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYCR100WU1C Heating element 102W 12-36V DC, ClimaSys.
Technical Specifications
- Manufacturer part number (MPN)
- NSYCR100WU1C
- EAN / GTIN
- 3606480152313
- Sales unit
- pcs
- Voltage
- 12-36 V
- Range
- ClimaSys
- Product name
- ClimaSys CR
- Product or component type
- Resistance heater
- Power range
- 100 W
- Input voltage
- 12...24 V AC/DC 50/60 Hz
- Electrical connection
- 4 screw terminals 2.5 mm²
- Operating position
- Vertical
- Ambient air temperature for operation
- -40…70 °C
- IP degree of protection
- IP20
- Electrical insulation class
- Class II
- Product certifications
- VDE
- Material
- Body: extruded aluminium; Cover: plastic
- Height
- External: 150 mm
- Width
- External: 60 mm
- Depth
- External : 90 mm
- Condition of use
- Electrical protection is needed; Heaters must be installed with a thermal controller; Air sealed enclosure
- fixing mode
- By clips
- Mounting support
- 35 mm DIN rail
- Number of Units in Package 1
- 1
- Country of origin
- DE
- Warranty (in months)
- 18
- Voltage type
- DC
- With room temperature controller
- No
- With fan
- No
- Degree of protection (IP)
- IP20
- Rated power
- 100 W
- Operating voltage DC
- 12–24 V
- Continuous heating power at 10 °C
- 100 W
Standards & Compliance
- HS Code
- 8516.29
Cross References
- EAN 3606480152313
- SAP 1000089001
- Code 8581299
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric 4 analog Input expansion screw term XPSMCMAI0400
Schneider Electric
Illuminated mushroom pushbutton, momentary, blue
ZB4BW463
Schneider Electric
Schneider Electric Illuminated monolithic push button, Harmony XB6E, rectangle red flush, 16mm, spring return, 24V DC, 1CO XB6EDW4B1P
Schneider Electric
Schneider Electric Circuit breaker frame, ComPacT NS1000N, 50KA at 415VAC, 1000A, 3P, withdrawable, manually operated, without control unit C100N3WM
Schneider Electric
Schneider Electric Interface plug-in relay, 8 A, 2 CO, 120 V AC RSB2A080F7
Schneider Electric
Schneider Electric Harmony, Solid state relay, 35 A, DIN rail mount, zero voltage switching, input 4...32 V DC, output 48...600 V AC SSD1A335BDC2
Schneider Electric
Soft starter 9A 200-480V TESYS
ATSU01N209LT
Schneider Electric
Schneider Electric TeSys F - specific contactor coil - 110...115 V AC 40...400 Hz low consumption LX9FG110
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy NSYCR100WU1C?
- NSYCR100WU1C can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is NSYCR100WU1C.
- What is the HS code for NSYCR100WU1C?
- The customs tariff (HS) code for NSYCR100WU1C is 8516.29.
- Who manufactures NSYCR100WU1C?
- NSYCR100WU1C is a Schneider Electric product in the Enclosures range.
- Is a datasheet available for NSYCR100WU1C?
- Yes — the NSYCR100WU1C datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for NSYCR100WU1C?
- The minimum order quantity is 1.
- Is NSYCR100WU1C available?
- Yes — NSYCR100WU1C is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
