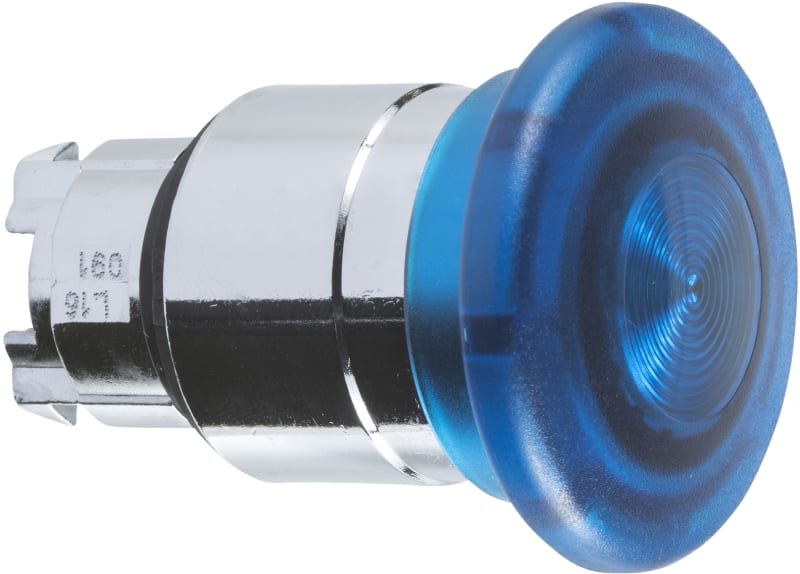

Illuminated mushroom pushbutton, momentary, blue
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ZB4BW463 illuminated mushroom pushbutton, momentary, blue.
Technical Specifications
- Manufacturer part number (MPN)
- ZB4BW463
- EAN / GTIN
- 3389110666519
- Sales unit
- pcs
- Package quantity
- 40 pcs
- Range of product
- Harmony XB4
- Product or component type
- Head for illuminated push-button
- Device short name
- ZB4
- Product compatibility
- Universal LED
- Bezel material
- Chromium plated metal
- Head type
- Standard
- Mounting diameter
- 22.5 mm
- Sale per indivisible quantity
- 1
- Shape of signaling unit head
- Round
- Type of operator
- spring return
- Operator profile
- Blue mushroom Ø 40 mm, unmarked
- Cap/operator or lens colour
- Blue
- CAD overall width
- 40 mm
- CAD overall height
- 40 mm
- CAD overall depth
- 53 mm
- Product weight
- 0.051 kg
- Resistance to high pressure washer
- 7000000 Pa at 55 °C, distance : 0.1 m
- Mechanical durability
- 10000000 cycles
- Electrical composition code
- M1 for <6 contacts using single blocks in front mounting with integral LED; M2 for <6 contacts using single and double blocks in front mounting with integral LED; M6 for <2 contacts using single blocks in front mounting with inte
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3389110666519
- SAP 1000037723
- Code 8517764
Product Documentation
More from Schneider Electric
Schneider Electric

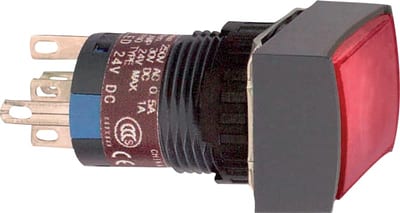

Schneider Electric Illuminated monolithic push button, Harmony XB6E, rectangle red flush, 16mm, spring return, 24V DC, 1CO XB6EDW4B1P
Schneider Electric

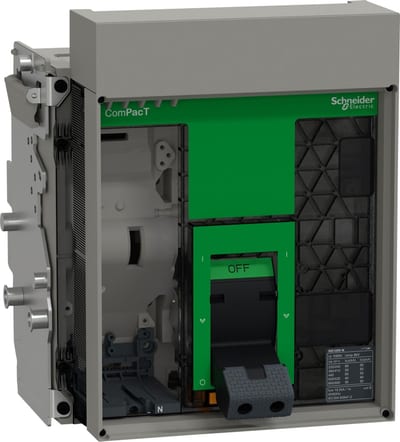

Schneider Electric Circuit breaker frame, ComPacT NS1000N, 50KA at 415VAC, 1000A, 3P, withdrawable, manually operated, without control unit C100N3WM
Schneider Electric

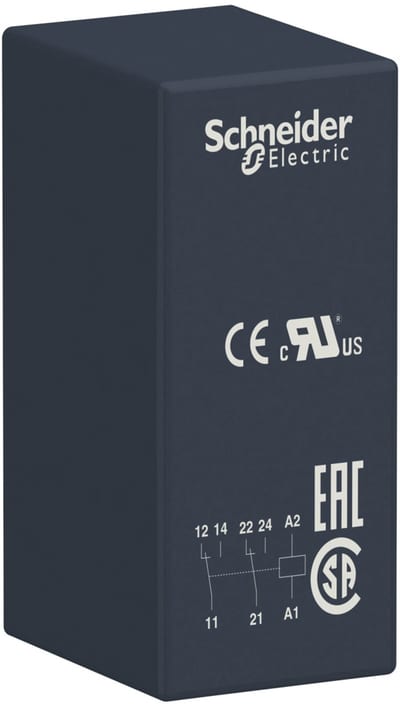

Schneider Electric Interface plug-in relay, 8 A, 2 CO, 120 V AC RSB2A080F7
Schneider Electric

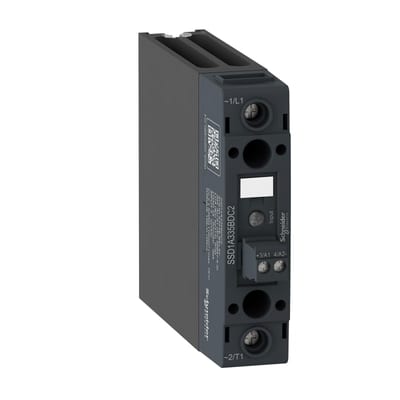

Schneider Electric Harmony, Solid state relay, 35 A, DIN rail mount, zero voltage switching, input 4...32 V DC, output 48...600 V AC SSD1A335BDC2
Schneider Electric

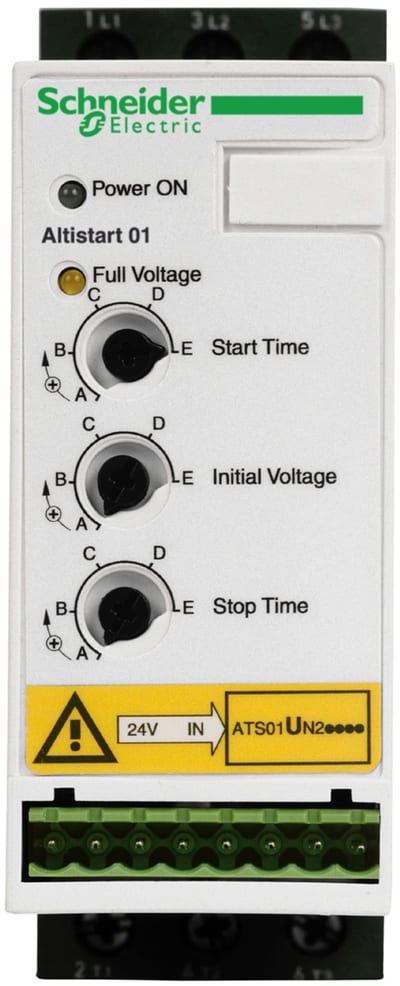

Soft starter 9A 200-480V TESYS
ATSU01N209LT
Schneider Electric

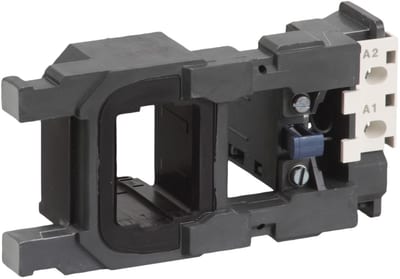

Schneider Electric TeSys F - specific contactor coil - 110...115 V AC 40...400 Hz low consumption LX9FG110
