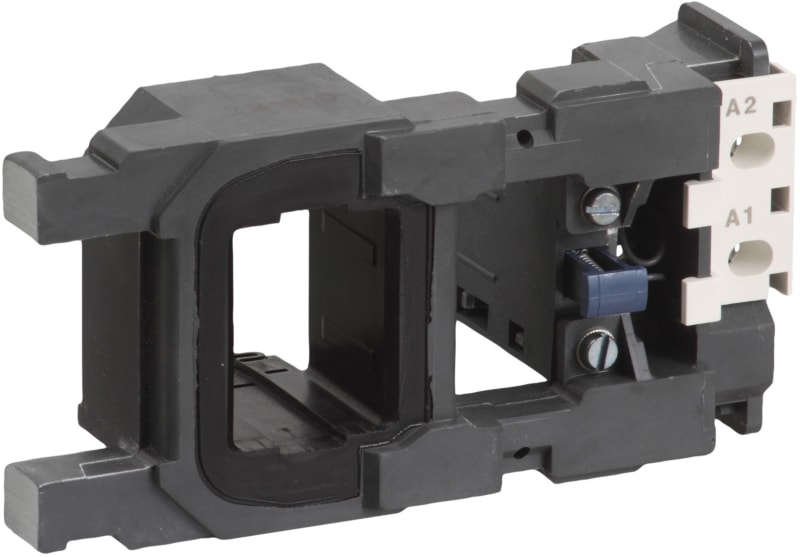

Schneider Electric TeSys F - specific contactor coil - 110...115 V AC 40...400 Hz low consumption LX9FG110
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LX9FG110 coil LC1F185/F225 110VAC.
Technical Specifications
- Manufacturer part number (MPN)
- LX9FG110
- EAN / GTIN
- 3389110083996
- Sales unit
- pcs
- Package quantity
- 18 pcs
- Voltage
- 110 V
- Frequency
- 50/60 Hz
- Range
- TeSys
- Product or component type
- Specific contactor coil
- Device short name
- LX9FG
- Range compatibility
- TeSys TeSys F LC1F contactor
- Product compatibility
- LC1F185; LC1F225
- Control circuit type
- AC at 40...400 Hz low consumption
- [Uc] control circuit voltage
- 110...115 V AC 40...400 Hz
- Inductance of closed circuit
- 1.46 H
- Average resistance
- 10.4 Ohm inrush at 20 °C; 411 Ohm holding at 20 °C
- Operating time
- 130 ms opening; 35 ms closing
- Mechanical durability
- 10 Mcycles
- Maximum operating rate
- 2400 cyc/h 55 °C
- Coil technology
- Without built-in suppressor module
- Control circuit voltage limits
- Operational: 0.85...1.1 Uc (at 55 °C); Drop-out: 0.2...0.55 Uc (at 55 °C)
- Inrush power in VA
- 950…1180 VA 40...400 Hz (at 20 °C)
- Hold-in power consumption in VA
- 8.9…10.9 VA 40...400 Hz (at 20 °C)
- Heat dissipation
- 8…9.8 W
- Ambient air temperature for operation
- -5…55 °C
- Product weight
- 0.55 kg
- Warranty (in months)
- 18
- Rated control supply voltage AC 50 Hz
- 110–115 V
- Rated control supply voltage AC 60 Hz
- 110–115 V
- Voltage type for actuating
- AC
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 8505.90
Cross References
- EAN 3389110083996
- SAP 1000059860
- Code 8912797
Product Documentation
