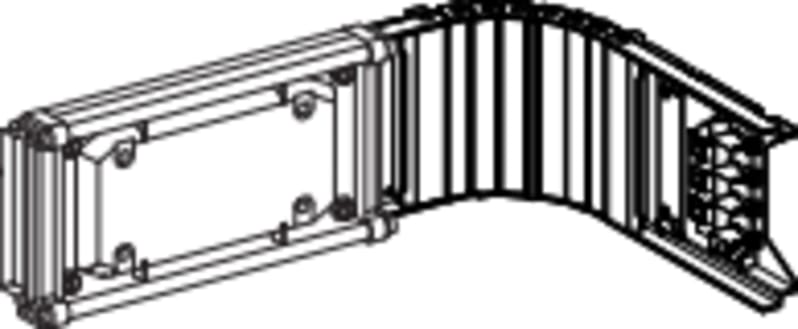

Flexible Angle 100A (KNA100DL4)

Schneider Electric KNA100DL4 Flexible Angle 100A.

Manufacturer part number (MPN)

KNA100DL4

EAN / GTIN

3606480003028

Sales unit

pcs

Package quantity

4 pcs

Rated current

100 A

Range of product

Canalis

Product name

KN

Product or component type

Flexible element

Busbar description

Flexible elbow

Device application

Low power distribution

Direction change type

2 dimensions

[Ie] rated operational current

100 A at 35 °C

[Ue] rated operational voltage

230...500 V

Network frequency

50/60 Hz

Number of circuits

1

Control type

Without

Colour

White (RAL 9001)

mounting mode

By screws

Thermal stress limit

1980 kA².s

Maximum radiated magnetic field

0.106 µT

[Uimp] rated impulse withstand voltage

6 kV

[Ui] rated insulation voltage

500 V

[Icw] rated short-time withstand current

1.4 kA

[Ipk] rated peak withstand current

14 kA

THDI

0…15 % 100 A; 15…33 % 80 A; 33…100 % 63 A

Operating angle

80…180 °

Length

355 mm

Product weight

1.3 kg

Standards

IEC 61439-1; IEC 61439-6

IP degree of protection

IP55 conforming to IEC 60529

IK degree of protection

IK08 conforming to IEC 62262

Ambient air temperature for operation

0…35 °C without derating

Number of Units in Package 1

1

Number of Units in Package 2

4

Country of origin

FR

Warranty (in months)

18

Model

Elbow box

Flexible

Yes

Number of poles

4

Number of conductors (without earthing)

4

Rated current AC 50 Hz

100 A

Rated voltage AC 50 Hz

230–500 V

RAL-number

9001

Degree of protection (IP)

IP55

HS Code

8536.90

• EAN 3606480003028
• SAP 1000571969
• Code 81084342
