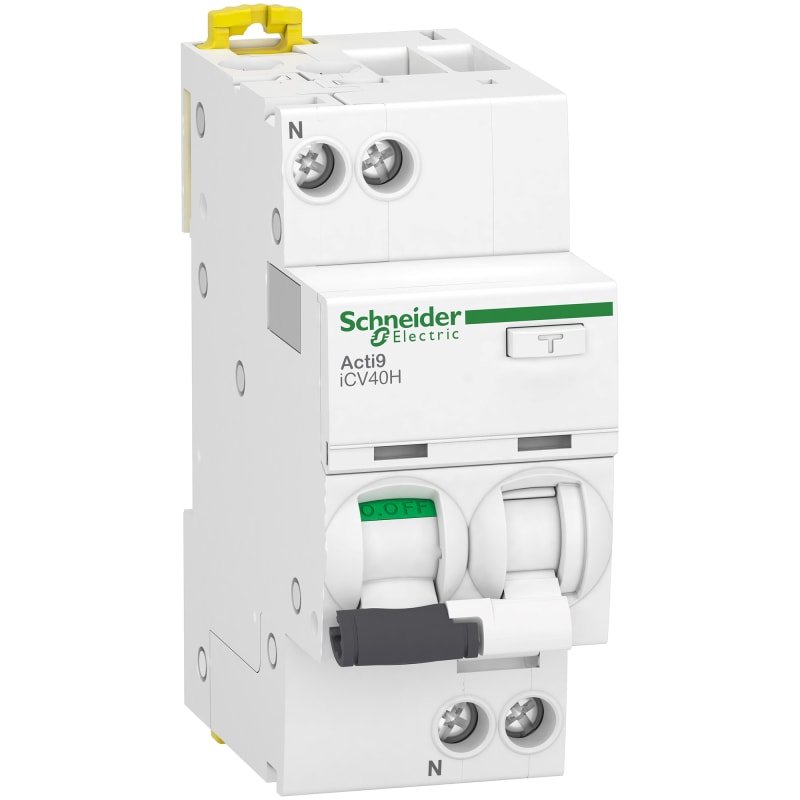

ICV40H RCBO 1PN C 13A 30MA

Schneider Electric A9DC4613 — Acti9 iC60 RCBO. Residual current circuit breaker with overcurrent per IEC 61009, DIN-rail modular. Acti 9 residual current circuit breaker with overcurrent for TN system - iCV40H RCBO 1PN C 13A 30mA - I2=1,45.

Manufacturer part number (MPN)

A9DC4613

EAN / GTIN

3606489444594

HS code

8536.90

Sales unit

pcs

Package quantity

6 pcs

Rated current

13 A

Power loss

3.6 W

Number of poles (total)

2

Number of protected poles

1

Rated voltage

230 V

Rated insulation voltage Ui

400 V

Rated impulse withstand voltage Uimp

4 kV

Rated fault current

0.03 A

Leakage current type

A

Rated short-circuit breaking capacity according to EN 60898

10 kA

Current limiting class

3

Rated short-circuit breaking capacity according to EN 61009

10 kA

Disconnection characteristic

Undelayed

Surge current capacity

0.25 kA

Voltage type

AC

Frequency

50/60 Hz

Release characteristic

C

Concurrently switching neutral conductor

Yes

With interlocking device

Yes

Overvoltage category

3

Pollution degree

3

Ambient temperature during operating

-25–60 °C

Width in number of modular spacings

2

Built-in depth

44 mm

Anti-nuisance tripping version

No

Degree of protection (IP)

IP20

Connectable conductor cross section solid-core

1–16 mm²

Connectable conductor cross section multi-wired

1–10 mm²

Flush-mounted installation

No

Mounting method

DIN rail

Country of origin

Spain

HS Code

8536.90

• EAN 3606489444594
• SAP 1200232105
• Code 82180708
