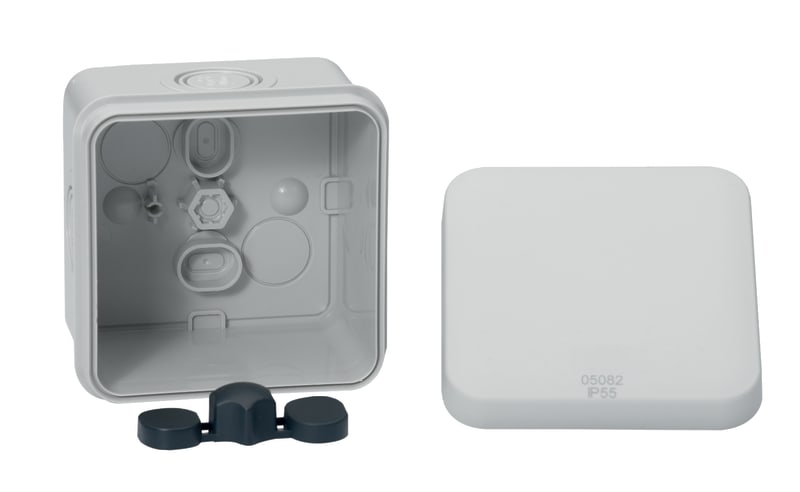

Schneider Electric Mureva BOX - junction box - knock-out 4XM16/20 - 65X65X45 mm ENN05082
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ENN05082 Mureva Box - boîte dérivation - entrées 4x16/20mm - int 65x65x45 ext 74x74x54mm.
Technical Specifications
- Manufacturer part number (MPN)
- ENN05082
- EAN / GTIN
- 3295150050822
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Dimensions
- 65×65×45
- product range
- Mureva BOX
- product type
- Junction box
- quantity per package
- 5 pieces
- Main colour tint
- Grey
- Mounting
- Surface
- cable entry
- Knock-out
- Fixing mode
- Clip-on: cover
- Inner dimensions
- 65 x 65 x 45 mm
- number of cable entries
- 4 x M16/20
- Material
- ABS (acrylonitrile butadiene-styrene): body; PP (polypropylene): cover
- Electrical insulation class
- Class II conforming to IEC 536
- Height
- 45 mm
- Width
- 74 mm
- Depth
- 74 mm
- Product weight
- 0.052 kg
- Colour tint
- Grey (RAL 7035)
- operating temperature
- -25…40 °C
- IP-Class
- IP55 conforming to IEC 60529
- IK-Class
- IK07 conforming to EN 50102
- glow wire temperature
- 650 °C
- Standards
- EN 60670; CE
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 5
- Number of Units in Package 3
- 175
- Warranty (in months)
- 18
- Model
- Junction box
- RAL-number (similar)
- 7035
- Max. conductor cross section
- 20 mm²
- Equipped with
- None
- Shape
- Square
- Mounting method
- Wall-/ceiling mounting
- For tube diameter
- 20 mm
- Length
- 74 mm
- Number of inlets
- 4
- Type of housing feed-through
- Preembossing
- Surface protection
- Untreated
- Colour
- Grey
- Degree of protection (IP)
- IP55
- Cover model
- Blind cover
- Cover attachment
- Snapped on
- Circuit integrity
- None
- For Ex-zone gas
- None
- For Ex-zone dust
- None
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3295150050822
- SAP 1200058144
- Code 81900012
