Schneider Electric Linergy TR Vertical Jumper 2-Pole 2-Level Screw
Pricing
Request a quote
We reply within 24 hours
Product Description

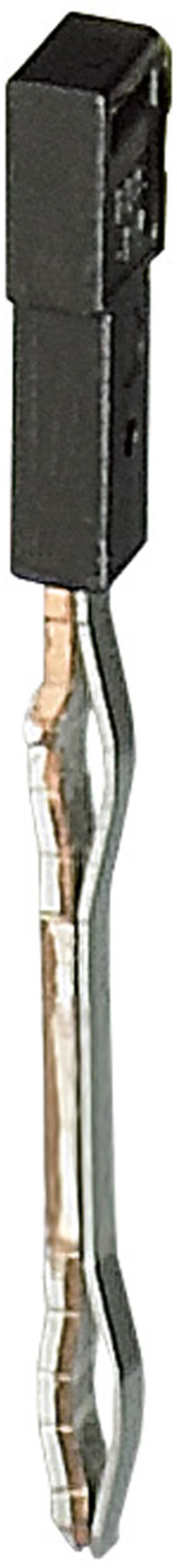

Schneider Electric NSYTRALV24 Linergy TR vertical connector for two-level TRV screw pass-through terminal blocks, two-pole. Bridges two adjacent terminals with contact protection at 30 A rated current. Supplied as a set of 50 pieces.
Technical Specifications
- Manufacturer part number (MPN)
- NSYTRALV24
- EAN / GTIN
- 3606480533532
- Sales unit
- pcs
- Package quantity
- 50 pcs
- Range
- Linergy
- Product name
- Linergy TR
- Product or component type
- Vertical bridge
- Device short name
- TRA
- Accessory / separate part category
- Connection accessory
- Product compatibility
- TRV screw terminal - passthrough terminal block
- Cable cross section
- 2.5…4 mm²
- number of connections
- 2
- Number of measurement input
- 4
- Quantity per set
- Set of 50
- Product weight
- 1.1 g
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 50
- Number of Units in Package 3
- 4000
- Country of origin
- CN
- Warranty (in months)
- 18
- Mounting method
- Pluggable
- Colour
- Black
- Model
- Vertical connector
- Insulated
- No
- Number of bridged clamps
- 2
- With contact protection
- Yes
- Rated current In
- 30 A
- Explosion-tested version 'Ex e'
- No
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480533532
- SAP 1000402102
- Code 81069208
Product Documentation
