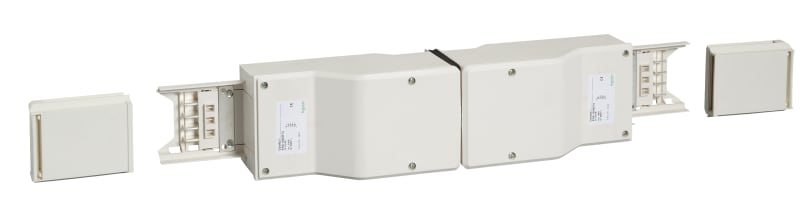

Center feed 63A (KNT63ABT4)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric KNT63ABT4 Center feed 63A.
Technical Specifications
- Manufacturer part number (MPN)
- KNT63ABT4
- EAN / GTIN
- 3606480003400
- Sales unit
- pcs
- Rated current
- 63 A
- Range of product
- Canalis
- Product name
- KN
- Device short name
- KNT
- Product compatibility
- Canalis KNT busbar trunking 40…63 A
- Product or component type
- Feed unit
- Conductors material
- Aluminium
- [Ie] rated operational current
- 63 A
- [Ue] rated operational voltage
- 230...500 V
- Number of circuits
- 1
- Protection type
- Without protection
- Control type
- Remote control
- Colour
- White (RAL 9001)
- Provided equipment
- End cover
- Mounting location
- Central
- mounting mode
- By clips
- Mounting support
- Busbar
- Connections - terminals
- Terminal block for 16 mm² flexible; Terminal block for 25 mm² rigid
- Width
- 535 mm
- Depth
- 71 mm
- Height
- 92 mm
- Product weight
- 1.47 kg
- Standards
- IEC 61439-6
- IP degree of protection
- IP55 conforming to IEC 60529
- IK degree of protection
- IK08 conforming to IEC 62262
- Number of Units in Package 1
- 1
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Single
- RAL-number
- 9001
- Number of poles
- 4
- Length
- 535 mm
- Degree of protection (IP)
- IP55
- Power supply position
- Centre
- Rated voltage AC 50 Hz
- 230–500 V
- Rated current AC 50 Hz
- 63 A
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480003400
- SAP 1200270025
- Code 82238210
Product Documentation
