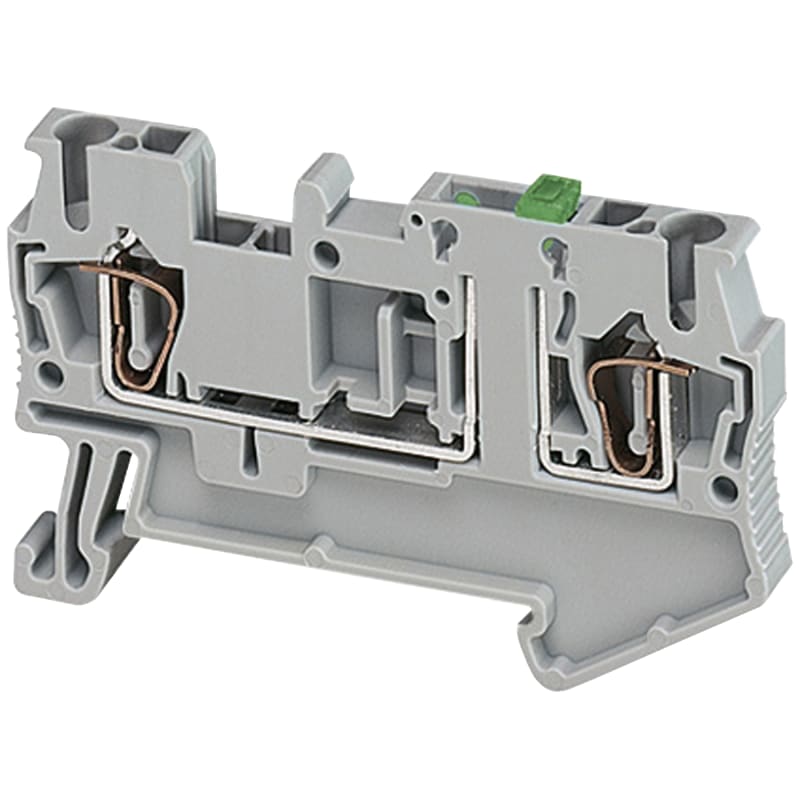

Schneider Electric NSYTRR22SC Linergy TR Blade Disconnect Terminal 2.5 mm² Grey 2P

Schneider Electric NSYTRR22SC is a Linergy TR single-level blade disconnect terminal block with spring-cage connections, rated 2.5 mm² in grey for two-pole applications. It clips onto DIN rail and accepts 0.08-2.5 mm² flexible or 0.8-4 mm² solid conductors, with a 10 mm stripping length. Operational voltage is 400 V per EN/IEC 60947-7-1 with 20 A rated current, in a polyamide 6/6 insulating case.

Manufacturer part number (MPN)

NSYTRR22SC

EAN / GTIN

3606480532900

Sales unit

pcs

Package quantity

50 pcs

Conductor cross-section

2.5 mm²

Range

Linergy

Product name

Linergy TR

Product or component type

Terminal block

Device short name

TRR

Terminal block type

Blade disconnect

Terminal block level

1

mounting mode

Clip-on

Nominal cross section

2.5 mm²

Length

60.5 mm

Colour

Grey

Quantity per set

Set of 50

Width

5.2 mm

Height

36.5 mm

Connections - terminals

1 x spring terminal: upstream; 1 x spring terminal: downstream

number of connections

2

Connection position

Top

Number of measurement input

2

Cable cross section

0.08…2.5 mm², flexible without cable end; 0.8…4 mm², solid

Wire stripping length

10 mm

Tool type

Disconnection: flat screwdriver; Connection: flat screwdriver

[Ue] rated operational voltage

300 V CSA; 400 V conforming to EN/IEC 60947-7-1; 600 V UL

[In] rated current

20 A conforming to EN/IEC 60947-7-1; 16 A CSA; 16 A UL

Material

Polyamide 6/6: insulating case

Dielectric loss

0.01 at 1 MHz conforming to IEC 60250; 0.01 at 1 MHz conforming to VDE 0303-T4

Dielectric constant

3.7 at 1 MHz

Resistivity

10000 MΩ.m conforming to IEC 60093; 10000 MΩ.m conforming to VDE 0303-T30

Surface resistance

1000 GΩ conforming to IEC 60093; 1000 GΩ conforming to VDE 0303-T30

Creep resistance

500 CTI (> 400 kB) conforming to IEC 60093; 500 CTI (> 400 kB) conforming to VDE 0303-T30

Flame retardance

V0, thickness0.8 mm conforming to UL 94

Product weight

8 g

Range compatibility

PrismaSeT G; PrismaSeT P; PrismaSet HD; PrismaSeT Pack 250; PanelSeT; Mureva; TeSys

Product compatibility

Spacial enclosures

Product certifications

CSA; UL

Dielectric strength

1000 V conforming to IEC 60243-1

Ambient air temperature for operation

-40…130 °C conforming to IEC 60216-1; -40…130 °C conforming to VDE 0304-T21

Number of Units in Package 1

1

Number of Units in Package 2

50

Number of Units in Package 3

200

Country of origin

DE

Warranty (in months)

18

Connectable conductor cross section solid-core

0.8–4 mm²

Connectable conductor cross section multi-wired

0.08–2.5 mm²

Rated current In

20 A

Rated voltage

400 V

Type of electrical connection 1

Spring clamp connection

Type of electrical connection 2

Spring clamp connection

Number of levels

1

Number of clamp positions per level

1

Internally connected stages

No

Mounting method

DIN rail (top hat rail) 35 mm

Material insulation body

Thermoplastic

Operating temperature

-40–130 °C

Width/grid dimension

5.2 mm

Depth

60.5 mm

Closing plate required

Yes

Type of slitting

Swivelling

Type of cross disconnection

Swivelling

With integrated test socket

No

HS Code

8536.90
