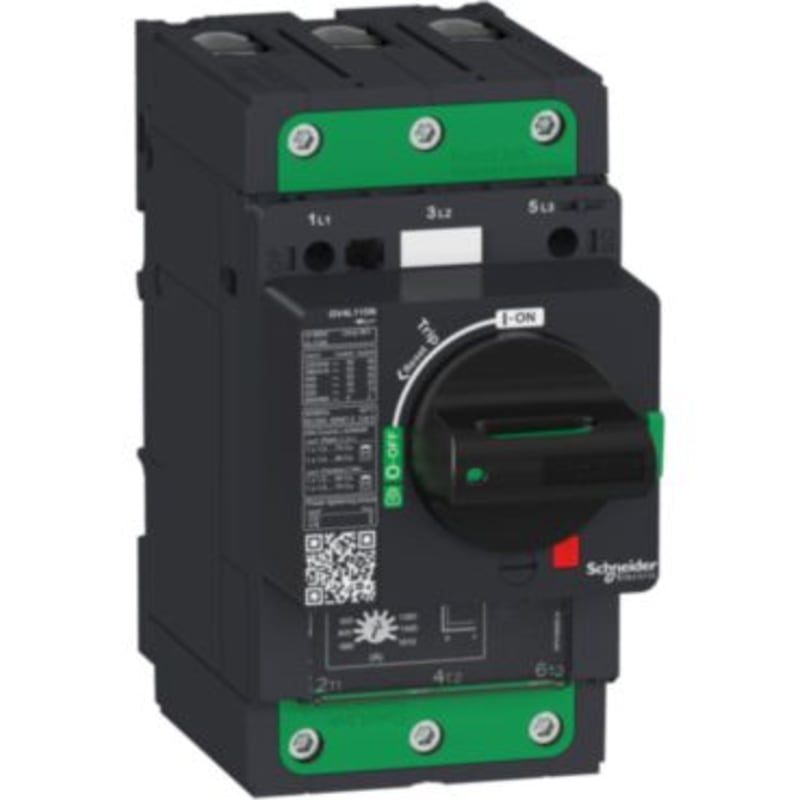

Schneider Electric Motor circuit breaker, TeSys GV4, 3P, 25A, Icu 25KA, magnetic, EverLink terminals GV4L25B

Schneider Electric GV4L25B Motor protection circuit breaker GV4L Magnetic 25A 25kA Elink.

Manufacturer part number (MPN)

GV4L25B

EAN / GTIN

3606481309471

HS code

8536.90

Sales unit

pcs

Package quantity

3 pcs

Rated current

25 A

Range

TeSys Deca

Range of product

TeSys GV4

Device short name

GV4L

Product name

TeSys GV4

Product or component type

Motor circuit breaker

Device application

Motor protection

Trip unit technology

Magnetic; Electronic

Poles description

3P

Utilisation category

Category A conforming to IEC 60947-2; AC-3 conforming to IEC 60947-4-1

Operating position

Any position

Motor power kW

7.5 kW at 660...690 V AC 50/60 Hz; 5.5 kW at 400...415 V AC 50/60 Hz; 7.5 kW at 500 V AC 50/60 Hz; 9 kW at 660...690 V AC 50/60 Hz; 11 kW at 660...690 V AC 50/60 Hz; 7.5 kW at 400...415 V AC 50/60 Hz; 9 kW at 400...415 V AC 50/60 Hz; 11 kW at 400...415 V AC 50/60 Hz; 9 kW at 500 V AC 50/60 Hz; 11 kW at 500 V AC 50/60 Hz; 15 kW at 500 V AC 50/60 Hz; 15 kW at 660...690 V AC 50/60 Hz; 18.5 kW at 660...690 V AC 50/60 Hz

Breaking capacity

50 kA Icu at 220...240 V AC 50/60 Hz conforming to IEC 60947-2; 25 kA Icu at 380...415 V AC 50/60 Hz conforming to IEC 60947-2; 20 kA Icu at 440 V AC 50/60 Hz conforming to IEC 60947-2; 10 kA Icu at 500 V AC 50/60 Hz conforming to IEC 60947-2

Control type

Rotary handle

[In] rated current

25 A

Magnetic tripping current

150…350 A

[Ue] rated operational voltage

690 V AC 50/60 Hz conforming to IEC 60947-2

[Ui] rated insulation voltage

800 V AC 50/60 Hz conforming to IEC 60947-2

[Ith] conventional free air thermal current

115 A conforming to IEC 60947-4-1

[Uimp] rated impulse withstand voltage

8 kV conforming to IEC 60947-2

Power dissipation per pole

6.1 W

Mechanical durability

40000 cycles

Electrical durability

5000 cycles for AC-3 at 415 V opening; 5000 cycles for AC-3 at 415 V closing

maximum operating rate

25 cyc/h

Rated duty

Continuous conforming to IEC 60947-4-1

Connections - terminals

EverLink BTR screw connectors (top): 1 cable(s) 1.5…70 mm² - solid; EverLink BTR screw connectors (top): 1 cable(s) 1.5…50 mm² - flexible; EverLink BTR screw connectors (bottom): 1 cable(s) 2.5…95 mm² - solid; EverLink BTR screw connectors (bottom): 1 cable(s) 2.5…70 mm² - flexible

Tightening torque

9 N.m for cable 16…95 mm²; 5 N.m for cable 1.5…10 mm²

Mechanical robustness

Vibrations: +/- 1 mm 2...13.2 Hz conforming to IEC 60068-2-6; Vibrations: 0.7 gn 13.2...100 Hz conforming to IEC 60068-2-6; Shocks: 15 gn 11 ms conforming to IEC 60068-2-27

Height

155 mm

Width

81 mm

Depth

165 mm

Product weight

1.65 kg

Colour

Grey (RAL 7016)

Suitability for isolation

Yes conforming to IEC 60947-1

Standards

EN/IEC 60947-2; EN/IEC 60947-4-1

Product certifications

IEC; CCC; EAC; EU-RO MR

Climatic withstand

conforming to IACS E10

IK degree of protection

IK07 conforming to IEC 62262

Pollution degree

3

IP degree of protection

IP40 conforming to IEC 60529

Ambient air temperature for storage

-50…85 °C

Fire resistance

960 °C conforming to IEC 60695-2-11

Operating altitude

5000 m

Ambient air temperature for operation

-25…70 °C

Warranty (in months)

18

HS Code

8536.90

• EAN 3606481309471
• SAP 1200216134
• Code 82207286
