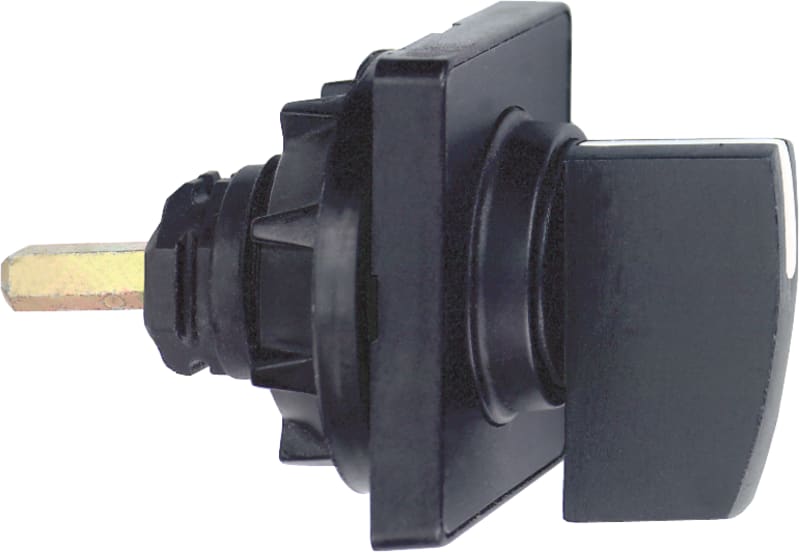

BETJ.DEL FOR Cam switch (KAA1S)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric KAA1S Betj.Del For Cam Switch.
Technical Specifications
- Manufacturer part number (MPN)
- KAA1S
- EAN / GTIN
- 3389110475647
- Sales unit
- pcs
- Package quantity
- 28 pcs
- Range of product
- Harmony Series K
- Product or component type
- Cam switch operating head
- Component name
- KAA
- Product compatibility
- Front mounting bodies 12 and 20 A by Ø 22 mm hole
- Cam switch head type
- With bezel Ø 29 mm, plastic with metallic finish
- Type of operator
- key 601A
- Rotary handle padlocking
- Without
- Presentation of legend
- With matt black legend
- Switching angle
- 45 °
- Mechanical durability
- 1000000 cycles
- CAD overall width
- 29 mm
- CAD overall height
- 29 mm
- CAD overall depth
- 69 mm
- Product weight
- 0.057 kg
- Compatibility code
- KAA
- Protective treatment
- TC
- Ambient air temperature for operation
- -25…55 °C
- Ambient air temperature for storage
- -40…70 °C
- Shock resistance
- 30 gn conforming to IEC 68-2-27
- Vibration resistance
- 5 gn conforming to IEC 68-2-6 (f = 10…150 Hz)
- IP degree of protection
- IP65 conforming to IEC 529; IP65 conforming to NF C 20-010
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 28
- Country of origin
- CZ
- Warranty (in months)
- 18
- Hole diameter
- 22.5 mm
- Suitable for lighting
- No
- Spring-return
- No
- Colour front ring
- Black
- Degree of protection (IP), front side
- IP65/IP67
- Material front ring
- Plastic
- With front ring
- Yes
- Construction type lens
- Round
- Type of control element
- Key
- Switching function latching
- No
Standards & Compliance
- HS Code
- 8536.50
Cross References
- EAN 3389110475647
- SAP 1000035822
- Code 8514474
