Rittal

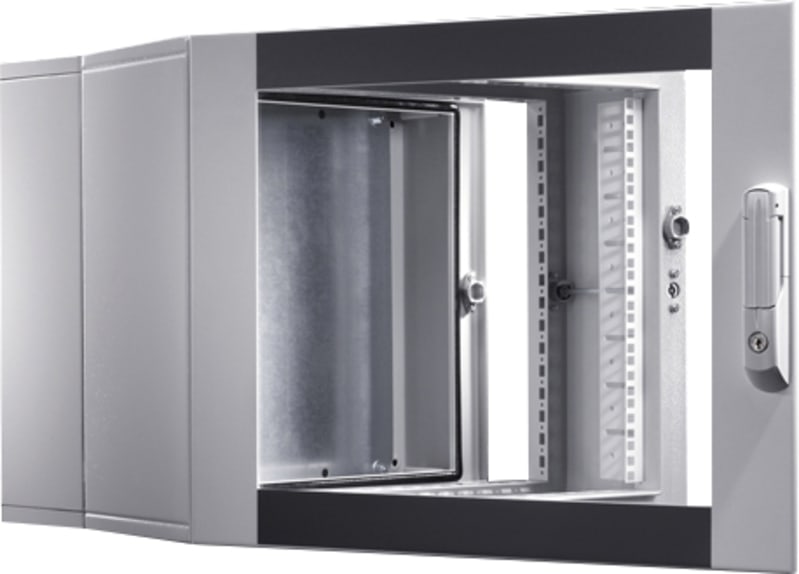

WALL-Mount Cabinet EL 6H 3DELT
Part number2246605EAN / GTIN4028177324312HS code9403.20
Office & Onboard Equipment
Server Racks
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 2246605 Manufacturer description: EL Wall-mounted enclosures, 3-part, 6 U, WHD: 600x345x373 mm, Protection category: IP 55, Designer glazed door. WALL-MOUNT CABINET EL 6H 3DELT.
Technical Specifications
- Manufacturer part number (MPN)
- 2246605
- EAN / GTIN
- 4028177324312
- Sales unit
- pcs
- Model designation
- EL 2246.605
- Product type
- Wall-mounted enclosures EL, 3-part
- Version
- Wall-mounted housing IT with mounting plate and profile rails, static installation
- Material
- Wall and hinged part: Carbon steel
- 1.5 mm; Viewing window
- Single-pane safety glass, 3 mm
- Surface finish
- Powder-coated
- General color
- RAL 7035
- Color
- Wall and hinged part: RAL 7035; Viewing door: RAL 7035/7015 (slate gray)
- Supply includes
- Wall section with flange (gland) plate, top and bottom, and mounting plate (supplied loose).; Hinged part with 25 mm pitch pattern in the front and rear frame, two 19" profile angles at the front, fixed in place; Designer viewing door; 1 enclosure key double bit no. 5; Mini-comfort handle for lock inserts; Security lock 3524 E
- Height units
- 6U
- Dimensions
- Width: 600 mm; Height: 345 mm; Depth: 373 mm
- Installation depth
- 320 mm
- Clearances
- Clearance width: 502 mm; Clearance height: 282 mm
- Depth hinged part
- 216 mm
- Dimensions of mounting plate (W x H)
- 485 mm x 299 mm
- Depth of wall section
- 135 mm
- IK code
- IK08
- Load capacity of hinged part
- 300 N
- Base material
- Carbon steel
- Protection category IP to EN 60 529
- IP 55
- Packaging unit
- 1 pc(s).
- Net weight
- 23.719 kg
- Gross weight
- 24.967 kg
- Customs tariff number
- 94032080
- ETIM 9
- EC002500
- ETIM 8
- EC002500
- ECLASS 8.0
- 27180208
- Mounting level
- Front side
- Type of profile rail
- None
- Number of doors
- 1
- Type of ventilation
- None
- Width
- 600 mm
- Height
- 345 mm
- Depth
- 373 mm
- Number of height units
- 6
- With roof plate
- No
- With earthing
- No
- With front door
- Yes
- With sidewall
- No
- Demountable
- No
- Surface finishing
- Powder coating
- Colour
- Grey
- RAL-number
- 7035
- Degree of protection (IP)
- IP55
- Country of origin
- United Kingdom
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 4028177324312
- SAP 1000365167
- Code 8418971
Product Documentation
Document preview: Rittal 2246605 — Data Sheet (OEM)
