Rittal
FlatBox 15HE, 700mm deep
Part number7507200EAN / GTIN4028177551466HS code9403.20
Office & Onboard Equipment
Server Racks
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

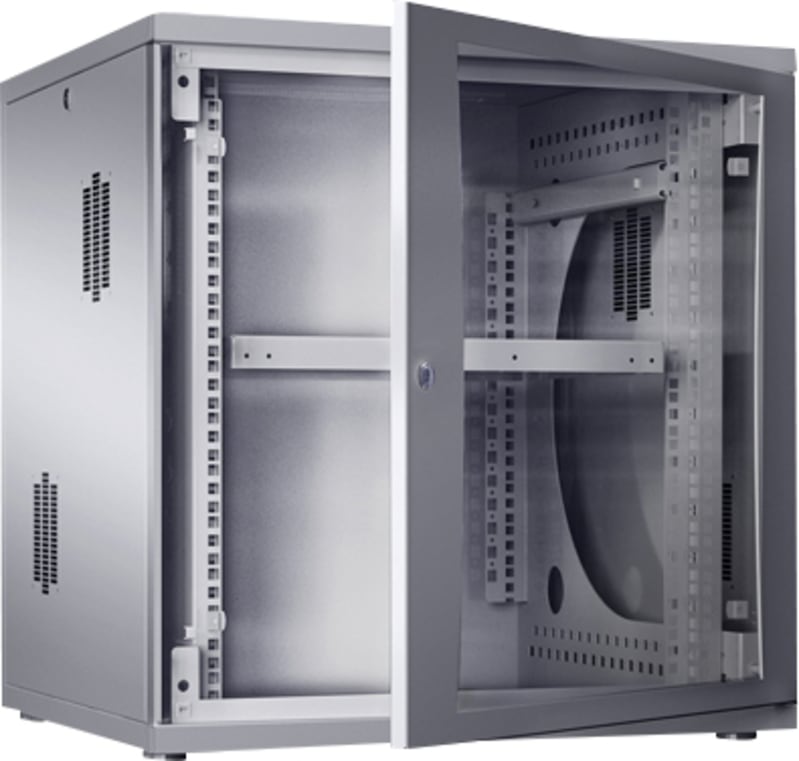

Rittal 7507200 Manufacturer description: DK FlatBox, WHD: 700x758x700 mm, 15 U, with 482.6 mm (19") mounting frame. FlatBox 15HE, 700mm deep.
Technical Specifications
- Manufacturer part number (MPN)
- 7507200
- EAN / GTIN
- 4028177551466
- Sales unit
- pcs
- Package quantity
- 30 pcs
- Model designation
- DK 7507.200
- Product type
- FlatBox
- Version
- with 19" mounting frame
- Material
- Carbon steel; Viewing window: Single-pane safety glass, 3 mm
- Surface finish
- Powder-coated
- Color
- RAL 7035
- Supply includes
- Flat-packed enclosure; 1 wall section; 2 basic supports; 2 roof/base plates, with cut-outs for cable entry via brush strips; 2 side panels, lockable; 1 glazed door, lockable, security lock 3524 E, door catch freely selectable; Connection components for tool-free, fast assembly; Grounding kit for system-compatible grounding of all enclosure parts; 19" mounting frame
- Height units
- 15 U
- Dimensions
- Width: 700 mm; Height: 758 mm; Depth: 700 mm
- Installation height for components
- 15 U
- Load capacity
- max. 750 N
- Base material
- Carbon steel
- Packaging unit
- 1 pc(s).
- Net weight
- 39.9 kg
- Gross weight
- 41.8 kg
- PCF/VE (cradle-to-gate)
- 160 kg CO2 eq (Cat B)
- Information regarding the PCF class
- Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared
- Customs tariff number
- 94032080
- ETIM 9
- EC002500
- ETIM 8
- EC002500
- ECLASS 8.0
- 27180208
- Mounting level
- Front side
- Type of profile rail
- L-shape
- Number of doors
- 1
- Type of ventilation
- Passive
- Width
- 700 mm
- Height
- 758 mm
- Depth
- 700 mm
- Number of height units
- 15
- Max. load capacity
- 75 kg
- With roof plate
- No
- With earthing
- Yes
- With front door
- Yes
- With sidewall
- Yes
- Demountable
- Yes
- Surface finishing
- Powder coating
- Colour
- Grey
- RAL-number
- 7035
- Degree of protection (IP)
- IP20
- Country of origin
- Spain
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 4028177551466
- SAP 1000692152
- Code 8616454
Product Documentation
Document preview: Rittal 7507200 — Data Sheet (OEM)
More from Rittal
Rittal
Floor-standing cabinet VX 800X1800X500
8885000
Rittal
Cablenipler HD M12X1,5
2410001
Rittal
System chassis VX 23X64 800
8617140
Rittal
Rittal 2562300 SZ Plastic Gland Plate with Membranes for AX, Size 2, 339x149 mm
Rittal
Rittal 2749100 FT Cam Lock for AX Operating Panel
Rittal

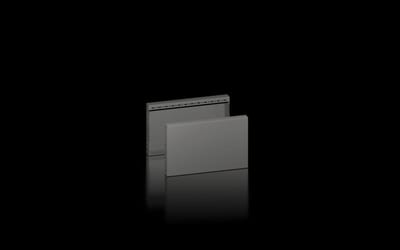

Base panels VX on the side 200X500
