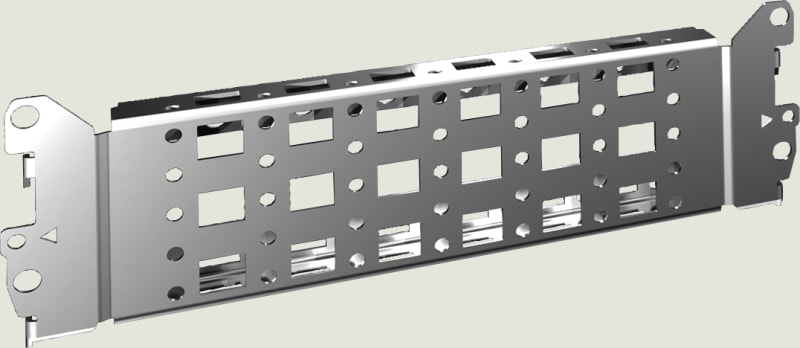

System chassis VX 23X64 800
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 8617140 Manufacturer description: VX Punched section, with mounting flange 23 x 64 mm, for inner mounting level, for W/H/D: 800 mm. System chassis VX 23x64.
Technical Specifications
- Manufacturer part number (MPN)
- 8617140
- EAN / GTIN
- 4028177829145
- Sales unit
- pcs
- Package quantity
- 4 pcs
- Model designation
- VX 8617.140
- Product type
- System chassis 23 x 64 mm
- Material
- Carbon steel
- Surface finish
- Zinc-plated
- Supply includes
- Assembly components
- Installation options VX
- In enclosure width/depth 800 mm, on the inner mounting level
- Installation options VX SE
- In enclosure width 800 mm, on the inner mounting level, in conjunction with adaptor rail for VX compatibility
- Installation options AX
- In enclosure width/height 800 mm, in conjunction with rail for interior installation AX and base configuration rail for AX
- Installation options AX stainless steel
- In enclosure width 800 mm, in conjunction with the base configuration rail
- Installation options AX plastic
- In enclosure width 800 mm, in conjunction with universal bracket
- Installation options PC
- In enclosure width 800 mm, in conjunction with adaptor rail for VX compatibility
- Installation options VX Base
- In base/plinth width/depth 800 mm on the base/plinth panels, in conjunction with base/plinth installation bracket
- Packaging unit
- 4 pc(s).
- Net weight
- 3.16 kg
- Gross weight
- 3.376 kg
- PCF/VE (cradle-to-gate)
- 17.61
- Customs tariff number
- 73269098
- ETIM 9
- EC002620
- ECLASS 8.0
- 27189234
- Width
- 64 mm
- Height
- 18 mm
- Depth
- 725 mm
- Country of origin
- France
Standards & Compliance
- HS Code
- 9403.99
Cross References
- EAN 4028177829145
- SAP 1200107190
- Code 81963955
Product Documentation
