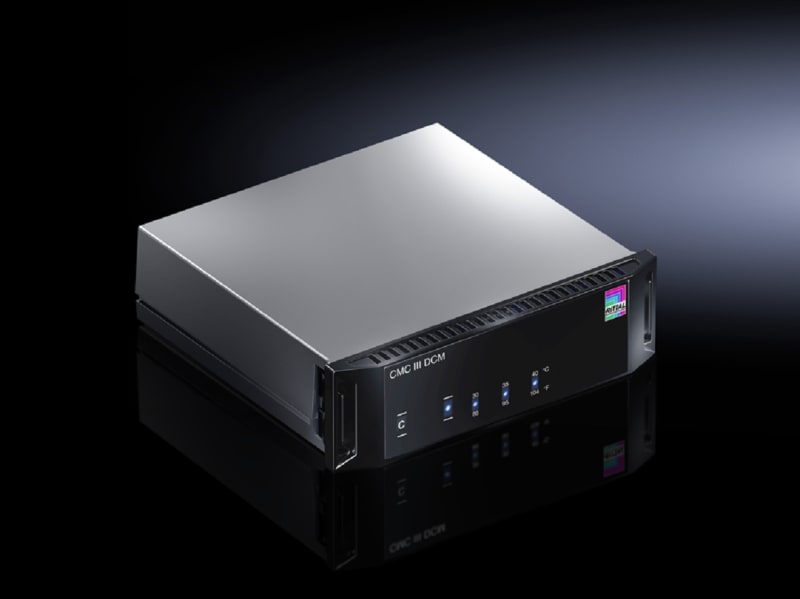

CMC III door Control Module DCM
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 7030501 Manufacturer description: DK CMC III Door Control Module DCM, control unit for the automatic door opening system, actuation of up to 2 door kits and 2 door kits extension for LCP, WHD: 138 x 40 x 132 mm. CMC III door Control Module DCM.
Technical Specifications
- Manufacturer part number (MPN)
- 7030501
- EAN / GTIN
- 4028177951570
- Sales unit
- pcs
- Model designation
- DK 7030.501
- Product type
- Door control module
- Technical specifications
- Maximum number of PU: 16; Maximum number of PU Compact: 4; 1. Rated voltage: 24 V (DC) 7030.060 for door control module and; VX IT glazed doors for ADO, redundant to the second Rated voltage; 2. Rated voltage: 24 V (DC) 7030.060 for Door Control Module and; VX IT glazed doors for ADO; 1 x Temperature sensor input; 3 x digital inputs: Alarm/front door flaps/rear door flaps; 1 x input for readers: Numerical coded lock/transponder reader for on-site function test of the ventilation flaps; 2 x outlets for VX IT glazed doors for ADO with integrated ventilation flaps, magnet system with damper integrated in the door; 2 x CAN bus CMC III: RJ45 for CAN bus cables
- Material
- Plastic
- Color
- Front: RAL 9005; Housing: RAL 7035
- Supply includes
- Basic system; Temperature sensor including connection cable (supplied loose); Incl. assembly parts for mounting on surfaces
- Packaging unit
- 1 pc(s).
- Net weight
- 0.4 kg
- Gross weight
- 0.66 kg
- Customs tariff number
- 85311095
- ETIM 9
- EC001770
- ECLASS 8.0
- 27390190
- Approvals
- UL + C-UL (listed)
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 9033.00
