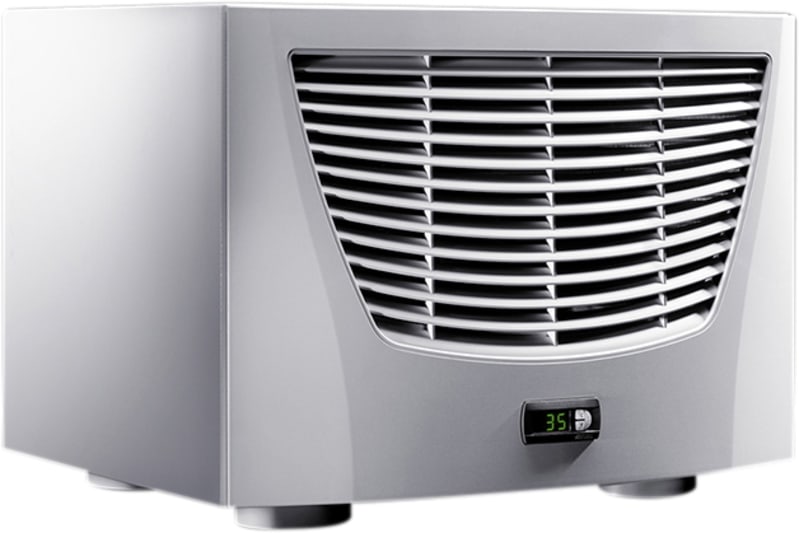

Rittal SK 3386.540 TopTherm Blue e Roof-Mounted Cooling Unit, 3000 W
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 3386540 is a SK TopTherm Blue e roof-mounted enclosure cooling unit with a 3000 W (10,236 BTU/h) refrigeration capacity, supplied for 400-460 V, 3-phase, 50/60 Hz mains. The carbon-steel housing measures 796 x 470 x 580 mm and uses R-513A refrigerant with an e-Comfort controller factory-set to +35 °C. A hydrophobic RiNano-coated condenser and integral condensate evaporation ensure reliable service in demanding industrial environments. Typical use is to remove heat loads from control cabinets housing frequency converters, PLC systems, and other heat-generating switchgear.
Technical Specifications
- Manufacturer part number (MPN)
- 3386540
- EAN / GTIN
- 4028177323308
- Sales unit
- pcs
- Model designation
- SK 3386.540
- Product type
- TopTherm Blue e Roof-Mounted
- Version
- roof-mounted
- Material
- Carbon steel
- Color
- RAL 7035
- Supply includes
- Condenser with hydrophobic RiNano coating; Integral electric condensate evaporation; Wired ready for connection (plug-in terminal strip); Drilling template; Fasteners
- Rated operating voltage
- 400 V, 3~, 50 Hz; 460 V, 3~, 60 Hz
- Air throughput (unimpeded air flow)
- External circuit: 3,450 m³/h; Internal circuit: 1,280 m³/h; External circuit: 2,030.6 cfm; Internal circuit: 753.4 cfm
- Energy efficiency ratio (EER) 50/60
- Refrigeration factor L35 L35 (EER) 50 Hz: 2.29
- Hz L35 L35
- Refrigeration factor L35 L35 (EER) 60 Hz: 2.13
- Dimensions
- Width: 796 mm; Height: 470 mm; Depth: 580 mm
- Protection category IP to EN 60 529
- External circuit, IP 34; Internal circuit, IP 54
- Refrigerant/cooling medium
- Refrigerant: R-513A; Quantity: 1.6 kg; Global Warming Potential (GWP): 631; CO2 equivalent (CO2e): 1.01 t; Refrigerant: R-513A; Quantity: 3.5 lb.
- Type of connection (electrical)
- Plug-in terminal strip
- Duty cycle
- 100 %
- Temperature control
- e-Comfort Controller (factory setting +35 °C)
- Operating temperature range
- 10 °C...55 °C; 50 °F...131 °F
- Storage temperature range
- -40 °C...70 °C; -40 °F...158 °F
- Setting range
- 20 °C...55 °C; 68 °F...131 °F
- Rated power Pel
- Rated power L35 L35/50 Hz: 1.31 kW; Rated power L35 L35/60 Hz: 1.55 kW; Rated power L35 L50/50 Hz: 1.49 kW; Rated power L35 L50/60 Hz: 1.76 kW
- Permissible operating pressure (p. max.)
- 28 bar; 406.1 PSI
- Packaging unit
- 1 pc(s).
- Net weight
- 83.7 kg
- Gross weight
- 84 kg
- Customs tariff number
- 84158200
- ETIM 9
- EC000855
- ETIM 8
- EC000855
- ECLASS 8.0
- 27180704
- Approvals
- 30 - KC Korea; UL + C-UL (listed); UL + C-UL - FTTA
- Width
- 796 mm
- Height
- 470 mm
- Depth
- 580 mm
- Voltage type
- AC
- With heating function
- No
- With temperature control
- Yes
- Function master/slave
- Yes
- Ambient temperature during operating
- 10–55 °C
- Operating voltage AC 50 Hz
- 360–440 V
- Operating voltage AC 60 Hz
- 360–440 V
- Total cooling capacity according to EN 14511 at 35/35 °C
- 3000 W
- Speed-regulated
- No
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 4028177323308
- SAP 1000111261
- Code 8983563
Product Documentation
More from Rittal
Rittal
Compact enclosure AX 600X1200X400
1261000
Rittal
Flexible Cable Conduit 29 mm / roll 25 m
2589000
Rittal
Ceiling Fans 873/965 m³/h
3140100
Rittal
Rittal SZ LED Connection Cable, Through-Wiring, 3-Pole, 100-240 V, 1 m, UL
2500530
Rittal
Rittal TS 8611.180 Security Lock Insert No. 3524 E with 2 Keys
8611180
Rittal
Plastic Enclosure AX m. window 800X1000X300
1479000
Rittal
HD wall-mount cabinet (AISI 304) 200X300X155
1302600
Rittal

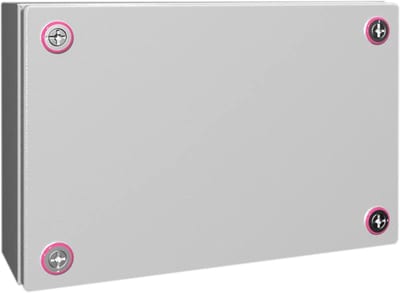

Junction box KX 300X200X120 (1531000)
