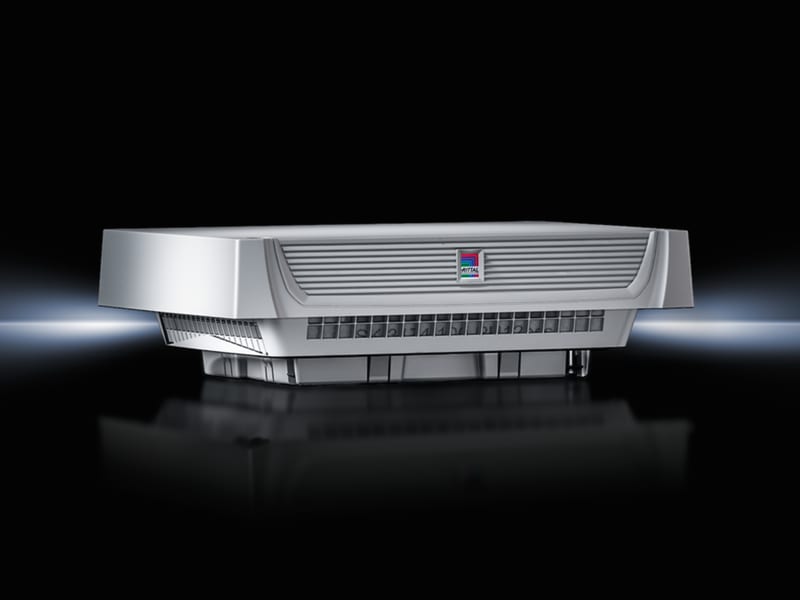

Ceiling Fans 873/965 m³/h
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 3140100 Manufacturer description: SK Roof-mounted fan TopTherm, 513.83/567.98 cfm 230 V, 1~, 50/60 Hz, WHD: 400 x 133 x 400 mm. The new the generation ceiling fans, et system for all sizes.
Technical Specifications
- Manufacturer part number (MPN)
- 3140100
- EAN / GTIN
- 4028177709140
- Sales unit
- pcs
- Model designation
- SK 3140.100
- Product type
- Roof-mounted fan, roof vent
- Version
- roof-mounted
- Material
- Plastic ABS
- Color
- RAL 7035
- Supply includes
- Complete unit ready to install, including pleated filter
- Fan
- Radial, capacitor motor
- Unimpeded air flow (with pleated filter)
- At 50 Hz: 809 m³/h; At 60 Hz: 868 m³/h; At 50 Hz: 476.16 cfm; At 60 Hz: 510.89 cfm
- Unimpeded air flow (without filter mats)
- At 50 Hz: 873 m³/h; At 60 Hz: 965 m³/h; At 50 Hz: 513.83 cfm; At 60 Hz: 567.98 cfm
- Rated operating voltage
- 220 V - 240 V, 1~, 50 Hz/60 Hz
- Rated power Pel
- At 50 Hz: 99 W; At 60 Hz: 130 W
- Dimensions
- Width: 400 mm; Height: 133 mm; Depth: 400 mm
- Installation depth
- 34.6 mm
- Mounting cut-out
- Width of opening: 258 mm; Depth of opening: 258 mm
- Protection category IP to IEC 60 529
- IP 21 without filter mat; IP 54 including pleated filter
- Protection category NEMA
- NEMA 12
- Operating temperature range
- -20 °C...55 °C; -4 °F...131 °F
- Storage temperature range
- -40 °C...70 °C; -40 °F...158 °F
- Noise pressure level
- At 50 Hz: 58 dB(A); At 60 Hz: 60 dB(A)
- Packaging unit
- 1 pc(s).
- Net weight
- 6 kg
- Gross weight
- 6.36 kg
- Customs tariff number
- 84145915
- ETIM 9
- EC000320
- ETIM 8
- EC000320
- ECLASS 8.0
- 27180716
- Approvals
- CSA; 30 - KC Korea; TÜV-certified safety; UL + C-UL - FTTA; UR + C-UR (recognized)
- Colour
- Grey
- Width
- 400 mm
- Height
- 133 mm
- Depth
- 400 mm
- RAL-number
- 7035
- Voltage type
- AC
- Suitable for 19 inch rack mounting
- No
- Number of fans
- 1
- EMC-version
- No
- With protective cover
- Yes
- With filter
- No
- Rated power
- 90 W
- Roof fan
- Yes
- Built as slide-in fan
- No
- Volume flow, freeblowing
- 873 m³/h
- Air circulator
- No
- Suitable for wall built-in
- No
- Noise emission
- 0 dB(A)
- Operating voltage AC 50 Hz
- 207–253 V
- Operating voltage AC 60 Hz
- 204–253 V
- Degree of protection (NEMA)
- 12
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8414.59
Cross References
- EAN 4028177709140
- SAP 1000746489
- Code 8440711
Product Documentation
More from Rittal
Rittal
Rittal SZ LED Connection Cable, Through-Wiring, 3-Pole, 100-240 V, 1 m, UL
2500530
Rittal
Rittal TS 8611.180 Security Lock Insert No. 3524 E with 2 Keys
8611180
Rittal
Plastic Enclosure AX m. window 800X1000X300
1479000
Rittal
HD wall-mount cabinet (AISI 304) 200X300X155
1302600
Rittal
Junction box KX 300X200X120 (1531000)
Rittal
Junction box KX 600X300X120 (1510000)
Rittal

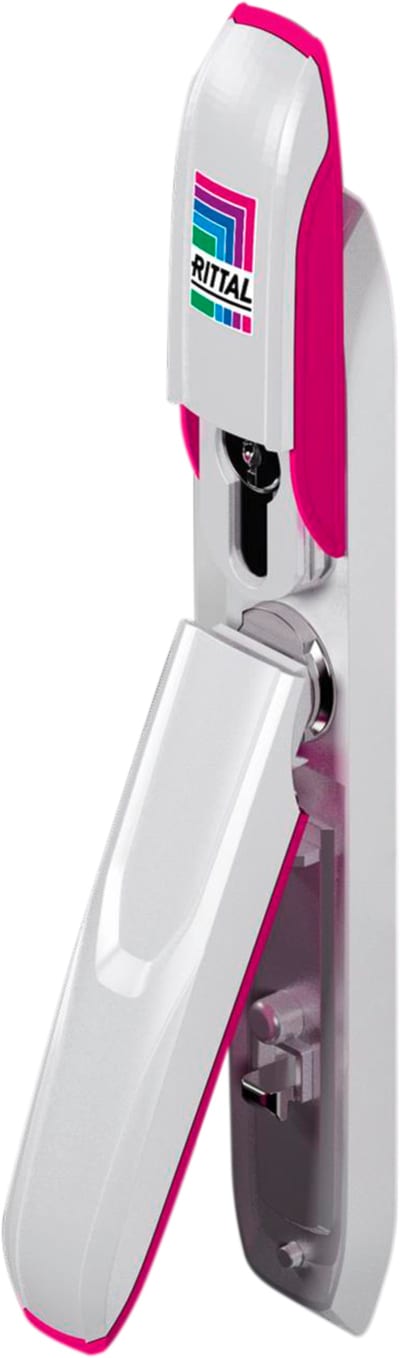

Rittal 2435100 AX Comfort Handle for Lock Inserts and Semi-Cylinders
Rittal

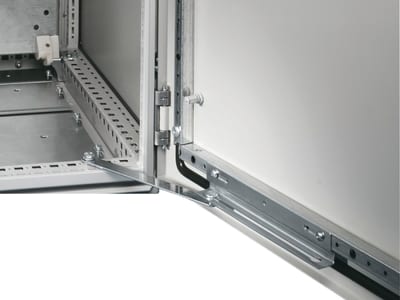

Rittal 4583000 SZ Door Stay for TS, SE, TP Universal Console and PC
