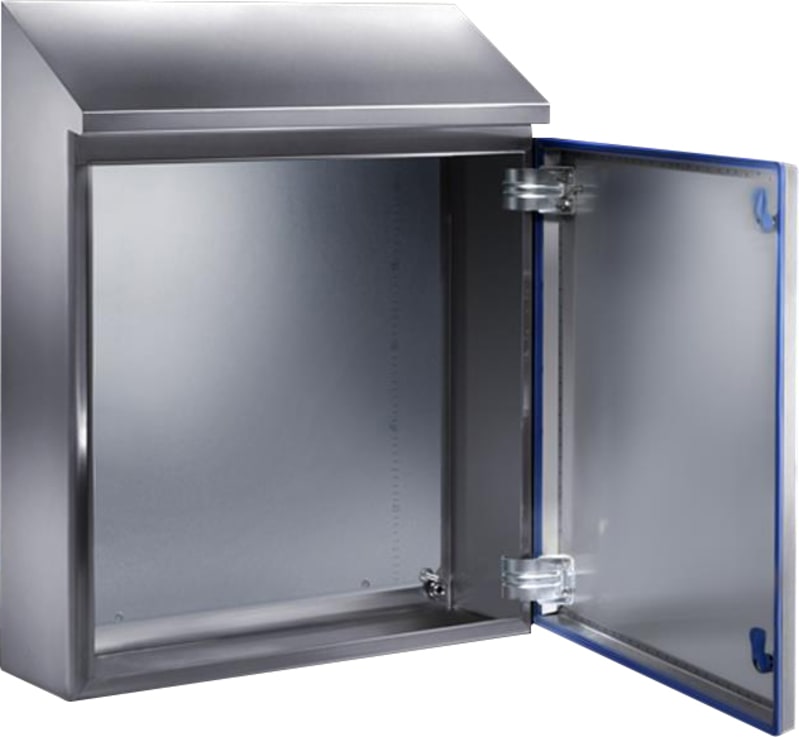

HD WALL-Mount Cabinet 1310600
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 1310600 Manufacturer description: HD Compact enclosure, WHD: 610x650(H1)x769(H2)x210 mm, Stainless steel 1.4301, with mounting plate, with hinged door and silicone seal. HD wall-mount cabinet (AISI 304).
Technical Specifications
- Manufacturer part number (MPN)
- 1310600
- EAN / GTIN
- 4028177567610
- Sales unit
- pcs
- Model designation
- HD 1310.600
- Product type
- Compact enclosure HD, single-door
- Version
- Hygienic Design Enclosures
- Product changes
- From June 2020, the compact enclosure HD, single-door, comes with the new compact enclosure AX mounting plate.
- Material
- Housing and door: Stainless steel 1.4301 (AISI 304); Mounting plate: Carbon steel; HD lock inserts: Stainless steel 1.4404 (AISI 316L); Seal: Silicone, compliant with FDA Guideline 21 CFR 177.2600
- Surface finish
- Housing and door: Brushed, grain 400, peak-to-valley height; < 0.8 µm; Mounting panel: Zinc-plated; Seal: Blue, dyed (RAL 5010)
- Supply includes
- Housing of all-round solid construction; Door with fitted seal; Door hinged on the right, may be swapped to the left; Mounting panel
- Dimensions
- Width: 610 mm; Height, front: 650 mm; Height rear: 769 mm; Depth: 210 mm
- Dimensions of mounting plate (W x H)
- 550 mm x 575 mm
- Door opening angle
- 125°
- IK code
- IK08
- Base material
- Stainless steel 1.4301 (AISI 304)
- Protection category IP to IEC 60 529
- IP 66; IP X9
- Protection category NEMA
- NEMA 1; NEMA 3; NEMA 3X; NEMA 4; NEMA 4X; NEMA 12; NEMA 13
- Type rating according to UL 50E
- Type 1; Type 3; Type 3X; Type 4; Type 4X; Type 12; Type 13
- Packaging unit
- 1 pc(s).
- Net weight
- 26.03 kg
- Gross weight
- 28.45 kg
- PCF/VE (cradle-to-gate)
- 85.63
- Customs tariff number
- 94032080
- ETIM 9
- EC000261
- ETIM 8
- EC000261
- ECLASS 8.0
- 27180101
- Approvals
- UL + C-UL (listed)
- Colour
- Stainless steel
- Width
- 610 mm
- Height
- 769 mm
- Depth
- 210 mm
- RAL-number
- 7001
- With mounting plate
- Yes
- Number of doors
- 1
- Number of locks
- 2
- Suitable for wall mounting
- Yes
- EMC-version
- No
- With glazed door
- No
- Couplable
- No
- Material quality
- Stainless steel 304 (V2A)
- Impact strength
- IK08
- Suitable for outdoor set-up
- No
- Suitable for metrical mounting
- No
- Mounting plate depth-adjustable
- No
- Connectable
- No
- With ventilation door
- No
- Wall fastening possible
- Yes
- With rear door
- No
- Suitable for wall built-in
- No
- Pitched roof
- Yes
- Pole fastening
- No
- Suitable for outdoor installation
- No
- Degree of protection (NEMA)
- 4X
- Max. permitted load of the enclosure according to IEC 62208
- 1500 N
- Max. permitted load of the door(s) according to IEC 62208
- 250 N
- Floor standing wall model
- No
- Freestanding
- No
- Corner model
- No
- Intermediate mounting
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 4028177567610
- SAP 1000252850
- Code 8107029
Product Documentation
More from Rittal
Rittal
Rittal SK 3386.540 TopTherm Blue e Roof-Mounted Cooling Unit, 3000 W
3386540
Rittal
Compact enclosure AX 600X1200X400
1261000
Rittal
Flexible Cable Conduit 29 mm / roll 25 m
2589000
Rittal
Ceiling Fans 873/965 m³/h
3140100
Rittal
Rittal SZ LED Connection Cable, Through-Wiring, 3-Pole, 100-240 V, 1 m, UL
2500530
Rittal

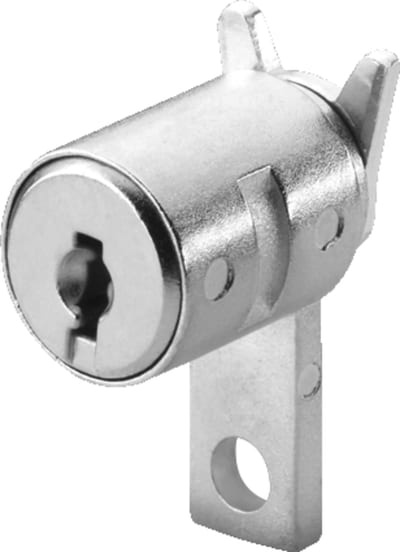

Rittal TS 8611.180 Security Lock Insert No. 3524 E with 2 Keys
8611180
Rittal

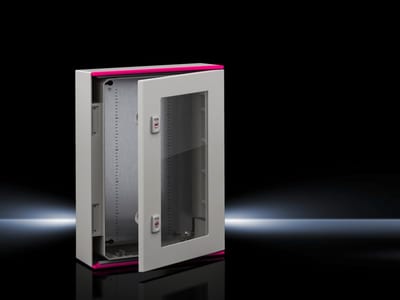

Plastic Enclosure AX m. window 800X1000X300
1479000
Rittal

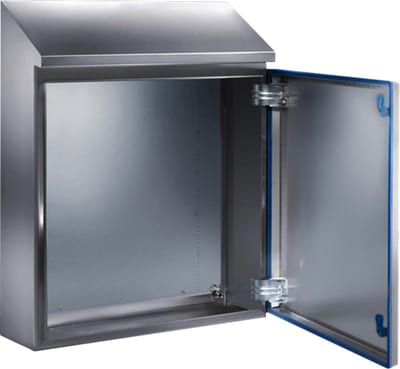

HD wall-mount cabinet (AISI 304) 200X300X155
