Rittal

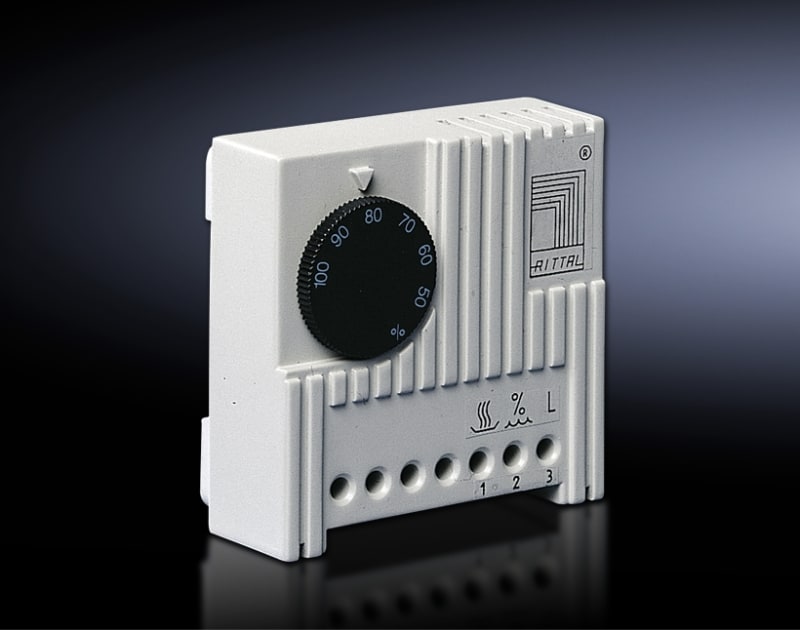

Hygrostat 50-100% AC/DC
Part number3118000EAN / GTIN4028177036734HS code7326.90
HVAC & Refrigeration
Thermostats & Controls
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 3118000 Manufacturer description: SK Hygrostat, 24-250 V, 1~, 24-48 V (DC), color RAL 7035, BHD: 71 x; 71 x 33.5 mm. HYGROSTAT 50-100% AC/DC.
Technical Specifications
- Manufacturer part number (MPN)
- 3118000
- EAN / GTIN
- 4028177036734
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Model designation
- SK 3118.000
- Product type
- Hygrostat
- Technical specifications
- Contact population: Single-pole change-over contact as a quick-break contact; Permissible contact load: AC ~ 5 (0.2) A (inductive load at cos φ =; 0.6)/DC = max. 20 W; Setting range: 50 – 100% relative humidity; Switching difference: approx. 4%
- Color
- RAL 7035
- Packaging unit
- 1 pc(s).
- Dimensions
- Width: 71 mm; Height: 71 mm; Depth: 33.5 mm
- Rated operating voltage
- 24 V - 250 V, 1~; 24 - 48 V (DC)
- Net weight
- 0.095 kg
- Gross weight
- 0.104 kg
- Customs tariff number
- 90321080
- ETIM 9
- EC004587
- ETIM 8
- EC004587
- ECLASS 8.0
- 27210708
- Approvals
- UL + C-UL (listed)
- Model
- Hygrostat
- Rated voltage
- 24 V
- Mounting method
- Screw mounting
- Type of switch function
- Change-over contact (NO/NC)
- With digital indication
- No
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 4028177036734
- SAP 1000110966
- Code 8982945
Product Documentation
Document preview: Rittal 3118000 — Data Sheet (OEM)
