Rittal 2565300 SZ Plastic Gland Plate with Membranes for AX, Size 5, 301x221 mm
Pricing
Request a quote
We reply within 24 hours
Product Description

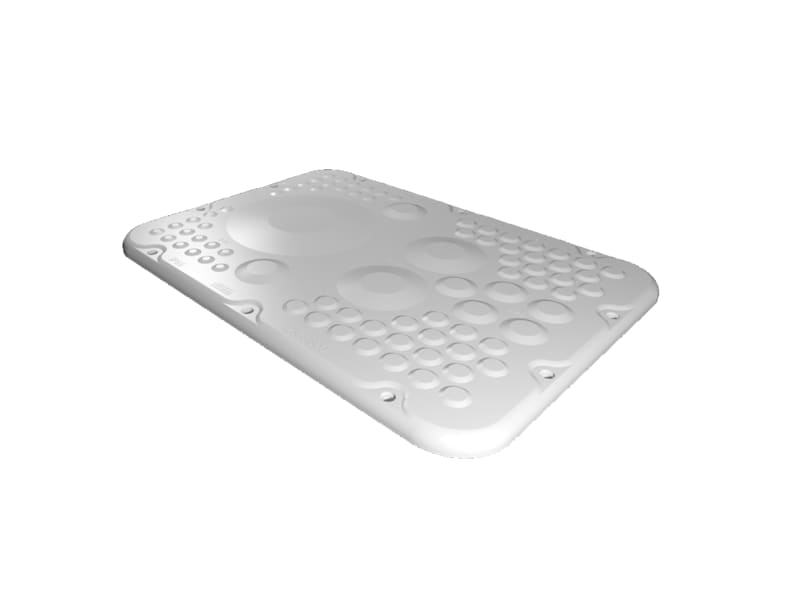

The Rittal 2565300 is an SZ plastic gland plate for the AX enclosure line, size 5, measuring 301 x 221 mm with 30 pre-formed membrane entries for cable diameters 5–11 mm. Moulded from UL 94-V0 plastic in a colour similar to RAL 7035, it maintains IP 66 and UL Type 1/12 protection when correctly installed. Suitable for retrofitting AX cabinets where sealed cable entry is required without individual glands.
Technical Specifications
- Manufacturer part number (MPN)
- 2565300 EAN / GTIN: 4028177935730 Sales unit: pcs Package quantity: 25 pcs Model designation: SZ 2565.300 Product type: Plastic Cable Gland Plates material: Plastic to UL 94-V0 Color: Similar to RAL 7035 Dimensions: Width: 301 mm; Depth: 221 mm Gland plate: Size: 5 Protection category IP to EN 60 529: IP 66 if correctly installed Type rating according to UL 50E: Type 1; Type 12 Quantity of cable entries and Ø: 30 x 5-11 Packaging unit: 1 pc(s). Net weight: 0.585 kg Gross weight: 0.59 kg Customs tariff number: 39269097 ETIM 9: EC000211 ETIM 8: EC000211 ECLASS 8.0: 27142421 Approvals: UL + C-UL - FTTA Width: 301 mm Depth: 221 mm Surface protection: Untreated Pre-stamping: No Thread type: None Number of connector holes: 80 Country of origin: Finland
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 4028177935730
- SAP 1200380135
- Code 82389176
Product Documentation
More from Rittal
Rittal
VX IT std 600X2000X600
5329121
Rittal
Ceiling Fans 500/525 m³/h
3139100
Rittal
PK Box grey cover 110X110X90 Rittal
9507000
Rittal
FlatBox 15HE, 700mm deep
7507200
Rittal
Floor-standing cabinet VX 800X1800X500
8885000
Rittal
Cablenipler HD M12X1,5
2410001
Rittal
System chassis VX 23X64 800
8617140
Rittal
Rittal 2562300 SZ Plastic Gland Plate with Membranes for AX, Size 2, 339x149 mm
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 2565300?
- 2565300 can be ordered from cballast.com as a Rittal catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Rittal product?
- The manufacturer part number is 2565300.
- What is the HS code for 2565300?
- The customs tariff (HS) code for 2565300 is 3926.90.
- Who manufactures 2565300?
- 2565300 is a Rittal product in the Enclosures range.
- Is a datasheet available for 2565300?
- Yes — the 2565300 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 2565300?
- The minimum order quantity is 1.
- Is 2565300 available?
- Yes — 2565300 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
