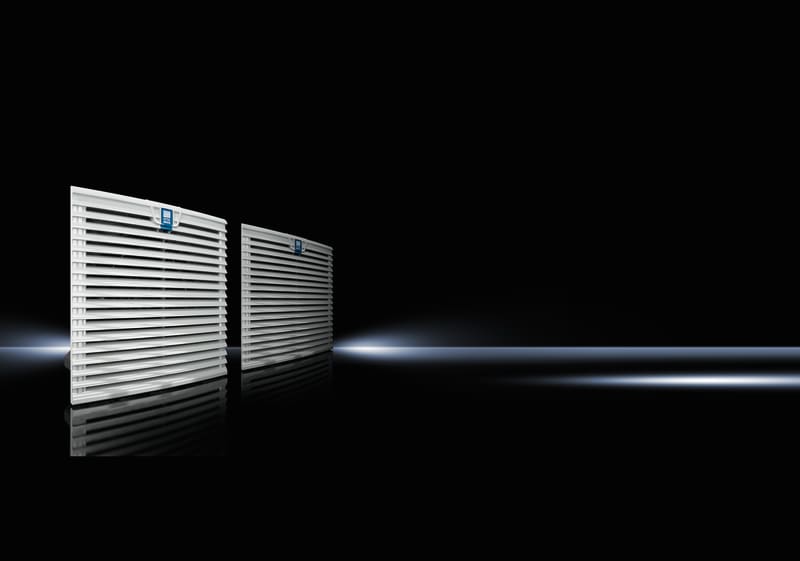

Filter Fans EC 180 m³/h

Rittal 3240500 Manufacturer description: SK Fan-and-filter unit TopTherm, 103 cfm 200-240 V, 1~, 50/60 Hz, WHD: 255 x 255 x 25 mm, EC technology. Energieffektiv version of RTT-filter fans with EC-teknologi.

Manufacturer part number (MPN)

3240500

EAN / GTIN

4028177664142

Sales unit

pcs

Model designation

SK 3240.500

Product type

TopTherm Filter Fan Units

Version

wall-mounted; EC

Product changes

Since May 2024, the cover for the connection terminal is no longer part of the TopTherm filter fan. During testing, it was found not to be required by the standards and does not impair function or operational safety.

Color

RAL 7035

Supply includes

Complete unit ready to install, including chopped fiber filter mat

Fan

Diagonal, EC motor

Unimpeded air flow (with pleated filter)

At 50 Hz: 218 m³/h; At 60 Hz: 188 m³/h; At 50 Hz: 128.31 cfm; At 60 Hz: 110.65 cfm

Unimpeded air flow (with chopped fiber filter)

At 50 Hz: 175 m³/h; At 60 Hz: 175 m³/h; At 50 Hz: 103 cfm; At 60 Hz: 103 cfm

Rated operating voltage

200 V - 240 V, 1~, 50 Hz/60 Hz

Rated power Pel

At 50 Hz: 11 W; At 60 Hz: 11 W

Dimensions

Width: 255 mm; Height: 255 mm

Installation depth

107 mm

Mounting cut-out

Width of opening: 224 mm; Cut-out height: 224 mm

Protection category IP to IEC 60 529

IP 54 with chopped fiber filter/pleated filter; IP 55 with pleated filter and absorber mat; IP 56 with chopped fiber filter/pleated filter and hose-proof hood

Protection category NEMA

Type 12 with chopped fiber filter/pleated filter; Type 3; Type 3R; Type 4; Type 4X with chopped fiber filter/pleated filter and hose-proof hood

Control interface

Yes

Operating temperature range

-25 °C...55 °C; -13 °F...131 °F

Storage temperature range

-25 °C...70 °C; -13 °F...158 °F

Noise pressure level

At 50 Hz: 47 dB(A); At 60 Hz: 47 dB(A)

Packaging unit

1 pc(s).

Net weight

1.773 kg

Gross weight

1.973 kg

Customs tariff number

84145915

ETIM 9

EC000320

ETIM 8

EC000320

ECLASS 8.0

27180716

Approvals

CSA; UL + C-UL - FTTA; UR + C-UR (recognized)

Mounting method

Snap mounting

Colour

Grey

Width

255 mm

Height

255 mm

Depth

107 mm

RAL-number

7035

Voltage type

AC

Suitable for 19 inch rack mounting

No

Number of fans

1

EMC-version

No

Degree of protection (IP)

IP54

With filter

Yes

Rated power

11 W

Roof fan

No

Built as slide-in fan

No

Volume flow, freeblowing

180 m³/h

Air circulator

No

Suitable for wall built-in

No

Operating voltage AC 50 Hz

200–240 V

Operating voltage AC 60 Hz

200–240 V

Operating voltage DC

200–240 V

Country of origin

Germany

HS Code

8414.59

• EAN 4028177664142
• SAP 1000792028
• Code 81403800
