Plastic Flange AX size 3 module
Pricing
Request a quote
We reply within 24 hours
Product Description

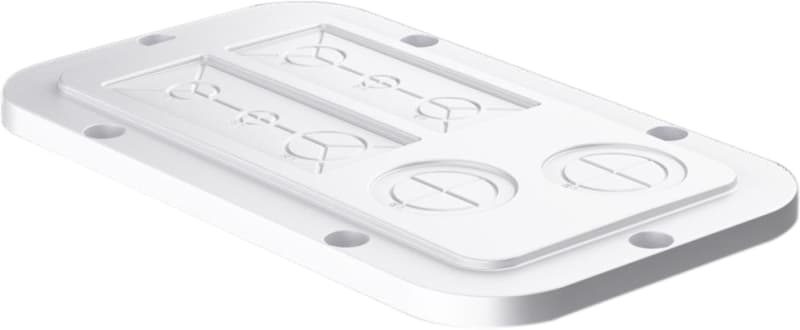

Rittal 2563200 Manufacturer description: SZ Plastic gland plates, for AX, for cable entry, modular, pre-punched, WD: 447x149 mm, for gland plates size 3. SZ Flange Plates in plastic, for AX, for cable gland, modular.
Technical Specifications
- Manufacturer part number (MPN)
- 2563200 EAN / GTIN: 4028177938410 HS code: 8544.42 Sales unit: pcs Package quantity: 25 pcs Model designation: SZ 2563.200 material: Plastic to UL 94-V0 Color: RAL 7035 Number of rectangular cutouts information: 1x rectangular cutout takes 10 sealing inserts, small No. of metric knockouts: 4 x M12; 3 x M16; 5 x M20; 3 x M25; 1 x M32; 1 x M40 Dimensions: Width: 447 mm; Depth: 149 mm Gland plate: Size: 3 Operating temperature range: -40 °C...80 °C; -40 °F...176 °F Protection category IP to EN 60 529: IP 66 if correctly installed Type rating according to UL 50E: Type 1; Type 12 Packaging unit: 1 pc(s). Net weight: 0.42 kg Gross weight: 0.48 kg Customs tariff number: 39269097 ETIM 9: EC000211 ETIM 8: EC000211 ECLASS 8.0: 27142421 Approvals: UL + C-UL - FTTA
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 4028177938410
- SAP 1200380129
- Code 82389187
Product Documentation
More from Rittal
Rittal
Rittal SK 3285.800 Filter Mat for SK Cooling Units 360 x 297 x 10 mm
3285800
Rittal
PDU basic 32A/3P 24X7/3 Schuko
7979134
Rittal
System Enclosure VXSE doubled 1200X2000X500 RF
5855600
Rittal
Rittal CS TopTec Outdoor Enclosure 800 x 1600 x 800 mm
9868500
Rittal
Cablenipler EMC HD M20X1,5
2410121
Rittal
Rittal 3124300 SK IoT Interface for Blue e+ Cooling Units
Rittal
Compact enclosure AX 600X760X210
1076000
Rittal
VX IT dyn 800X2200X1200
5316816
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 2563200?
- 2563200 can be ordered from cballast.com as a Rittal catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Rittal product?
- The manufacturer part number is 2563200.
- What is the HS code for 2563200?
- The customs tariff (HS) code for 2563200 is 8544.42.
- Who manufactures 2563200?
- 2563200 is a Rittal product in the Enclosures range.
- Is a datasheet available for 2563200?
- Yes — the 2563200 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 2563200?
- The minimum order quantity is 1.
- Is 2563200 available?
- Yes — 2563200 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
