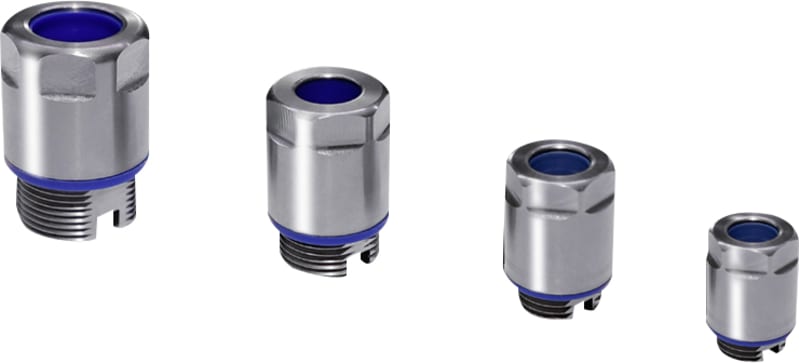

Cablenipler EMC HD M20X1,5
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 2410121 Manufacturer description: HD Cable gland, stainless steel 1.4305, size: M20x1,5, for cables Ø; 6-12 mm, EMC version. Cable gland, stainless steel 1.4305, size: M20x1,5, for cables Ø 6-12 mm, EMC-version.
Technical Specifications
- Manufacturer part number (MPN)
- 2410121
- EAN / GTIN
- 4028177928657
- HS code
- 8544.42
- Sales unit
- pcs
- Package quantity
- 5 pcs
- Model designation
- HD 2410.121
- Product type
- Cable gland HD
- Version
- EMC
- Applications
- Production and packaging of food and beverages; Clean room technology (e.g. pharmaceuticals); Biotechnology; Chemical industry
- Material
- Nut: Stainless steel 1.4305 (AISI 303); Seal: EPDM, compliant with FDA 21 CFR 177.2600
- Supply includes
- Incl. lock nut
- Dimensions
- Thread: M20 x 1.5
- For cable diameters
- 6 ‐ 12 mm
- Operating temperature range
- -20 °C...100 °C; -4 °F...212 °F
- Protection category IP to IEC 60 529
- IP69 / IPX8 (5 bar, 30 min)
- Type rating according to UL 50E
- Type 1; Type 2; Type 4; Type 4X; Type 12; Type 12K; Type 13
- Packaging unit
- 5 pc(s).
- Net weight
- 0.3 kg
- Gross weight
- 0.332 kg
- Customs tariff number
- 73072980
- ETIM 9
- EC000441
- ETIM 8
- EC000441
- ECLASS 8.0
- 27149109
- Approvals
- UL + C-UL (listed); VDE
Standards & Compliance
- HS Code
- 8544.42
Cross References
- EAN 4028177928657
- SAP 1200596628
- Code 82973143
Product Documentation
More from Rittal
Rittal
Rittal 3124300 SK IoT Interface for Blue e+ Cooling Units
Rittal
Compact enclosure AX 600X760X210
1076000
Rittal
VX IT dyn 800X2200X1200
5316816
Rittal
PDU basic 32A/3P 12XC19
7979131
Rittal
Rittal 9340290 SV Insert Strip for OM Adapter/Carrier 2 pcs
Rittal
Rittal 9828550 CS TopTec Outdoor Enclosure 800 x 1200 x 800 mm with Climate-Unit Cut-Out
Rittal
Rittal 2582200 AX SZ Cable Gland Inlay 2-Slot Modular
Rittal
Hinge Bracket Delmpl VX
8617650
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 2410121?
- 2410121 can be ordered from cballast.com as a Rittal catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Rittal product?
- The manufacturer part number is 2410121.
- What is the HS code for 2410121?
- The customs tariff (HS) code for 2410121 is 8544.42.
- Who manufactures 2410121?
- 2410121 is a Rittal product in the Electrical Components range.
- Is a datasheet available for 2410121?
- Yes — the 2410121 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 2410121?
- The minimum order quantity is 1.
- Is 2410121 available?
- Yes — 2410121 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
