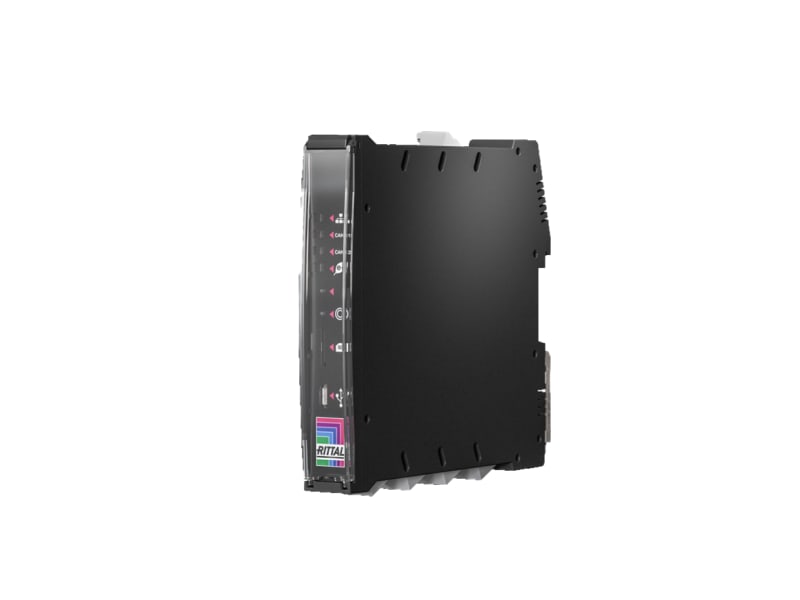

Rittal 3124300 SK IoT Interface for Blue e+ Cooling Units
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 3124300 SK IoT Interface networks Blue e+ cooling units and chillers into monitoring and building-management systems. The 18 x 117 x 120 mm module ships with a USB cable and an angle bracket for rear mounting on a Blue e+ unit, or clips onto a 35 x 7.5 mm DIN rail per DIN EN 60715. Dual RJ45 CAN-bus ports and Ethernet 10/100/1000BASE-T carry protocols including OPC-UA, SNMPv1/2c/3, Modbus/TCP, HTTPS, SFTP and NTP.
Technical Specifications
- Manufacturer part number (MPN)
- 3124300
- EAN / GTIN
- 4028177924369
- Sales unit
- pcs
- Model designation
- SK 3124.300
- Product type
- IoT interface
- Material
- Plastic to UL 94-V0
- Color
- RAL 7016
- Supply includes
- IoT interface; USB cable (USB A plug on a micro USB B plug); Angle bracket for Blue e+ cooling unit
- Type of connection (electrical)
- Push-in spring terminal (24 V DC)
- Interface bus system
- 2 x RJ45 CAN bus
- Network interface
- Ethernet IPv4/IPv6; Ethernet according to IEEE 802.3 via 10BASE-T, 100BASE-T and; 1000BASE-T
- Mounting tip
- The IoT interface can be secured using a spring-loaded metal clamp on a 35 x 7.5 top hat rail according to DIN EN 60715 or by means of an angle bracket on the rear of a Blue e+ cooling unit.
- Protocols
- OPC-UA; SNMPv1; SNMPv2c; SNMPv3; Modbus/TCP; TCP/IPv4; TCP/IPv6; Radius; Telnet; SSH; FTP; SFTP; HTTP; HTTPS; NTP; DHCP; DNS; SMTP; Syslog; LDAP
- Dimensions
- Width: 18 mm; Height: 117 mm; Depth: 120 mm
- Operating temperature range
- 0 °C...70 °C; 32 °F...158 °F
- Protection category IP to IEC 60 529
- IP 20
- Packaging unit
- 1 pc(s).
- Net weight
- 0.27 kg
- Gross weight
- 0.28 kg
- Customs tariff number
- 85369095
- ETIM 9
- EC001099
- ETIM 8
- EC001099
- ECLASS 8.0
- 27143136
- Approvals
- Cyber Security Certificate; UL + C-UL (listed)
- Bus system KNX
- No
- Bus system KNX-RF (Radio Frequency)
- No
- Bus system radio frequency
- No
- Bus system LON
- No
- Bus system Powernet
- No
- Remote operation possible
- No
- Ethernet
- Yes
- With bus connection
- Yes
- LED controlling
- No
- With LED indication
- Yes
- Local operation/hand operation
- No
- Number of inputs
- 7
- Suitable for C-load
- No
- With switch function
- No
- External signal voltage necessary
- Yes
- Different phases connectable
- No
- Type of current
- DC
- Degree of protection (IP)
- IP20
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8523.49
Cross References
- EAN 4028177924369
- SAP 1200463148
- Code 82524184
