Rittal
Fan Expansion Kit 230 V 50/60 Hz
Part number7980100EAN / GTIN4028177617179HS code8414.90
Enclosures
Enclosure Cooling
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description

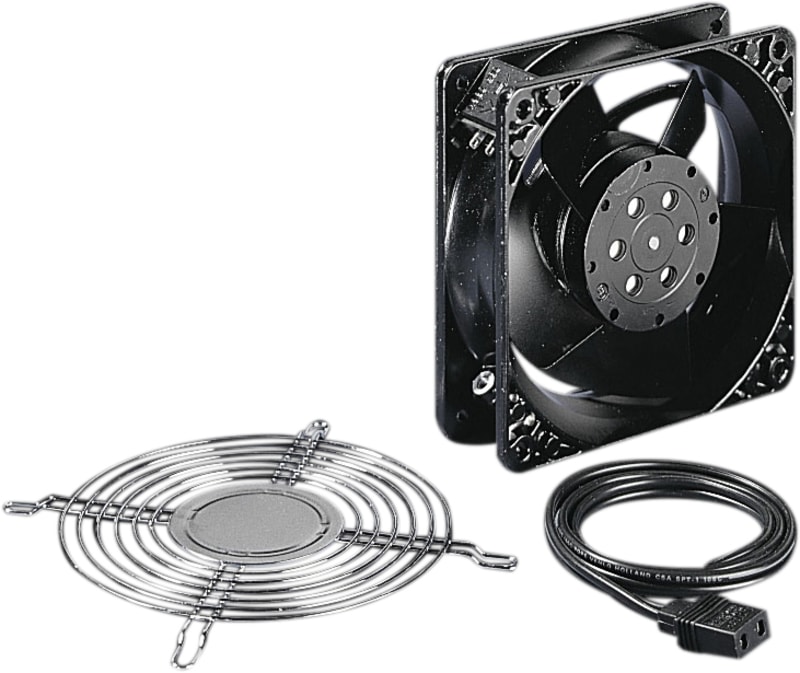

Rittal 7980100 (SK 7980.100) fan expansion kit, 230 V 50/60 Hz — supplied with fans, 0.61 m connection cable and assembly components.
Technical Specifications
- Manufacturer part number (MPN)
- 7980100
- EAN / GTIN
- 4028177617179
- Sales unit
- pcs
- Model designation
- SK 7980.100
- Product type
- Fan expansion kit
- Supply includes
- Fans; Connection cable (0.61 m); Assembly components
- Unimpeded air flow (with chopped fiber filter)
- At 50 Hz: 108 m³/h; At 60 Hz: 120 m³/h; At 50 Hz: 63.6 cfm; At 60 Hz: 70.6 cfm
- Rated operating voltage
- 230 V, 1~, 50 Hz/60 Hz
- Rated power Pel
- At 50 Hz: 14 W; At 60 Hz: 12 W
- Dimensions
- Width: 119 mm; Height: 119 mm; Depth: 25 mm
- Operating temperature range
- -20 °C...70 °C; -4 °F...158 °F
- Noise pressure level
- At 50 Hz: 34 dB(A); At 60 Hz: 34 dB(A)
- Packaging unit
- 1 pc(s).
- Net weight
- 0.43 kg
- Gross weight
- 0.486 kg
- Customs tariff number
- 84145915
- ETIM 9
- EC000320
- ECLASS 8.0
- 27180716
- Colour
- Black
- Width
- 119 mm
- Height
- 119 mm
- Depth
- 25 mm
- RAL-number
- 7035
- Voltage type
- AC
- Suitable for 19 inch rack mounting
- No
- Number of fans
- 1
- EMC-version
- No
- With filter
- No
- Rated power
- 14 W
- Roof fan
- No
- Built as slide-in fan
- No
- Volume flow, freeblowing
- 108 m³/h
- Air circulator
- No
- Suitable for wall built-in
- No
- Operating voltage AC 50 Hz
- 230 V
- Operating voltage AC 60 Hz
- 230 V
- Country of origin
- China
Standards & Compliance
- HS Code
- 8414.90
Cross References
- EAN 4028177617179
- SAP 1200596683
- Code 82973265
Product Documentation
Document preview: Rittal 7980100 — Data Sheet (OEM)
