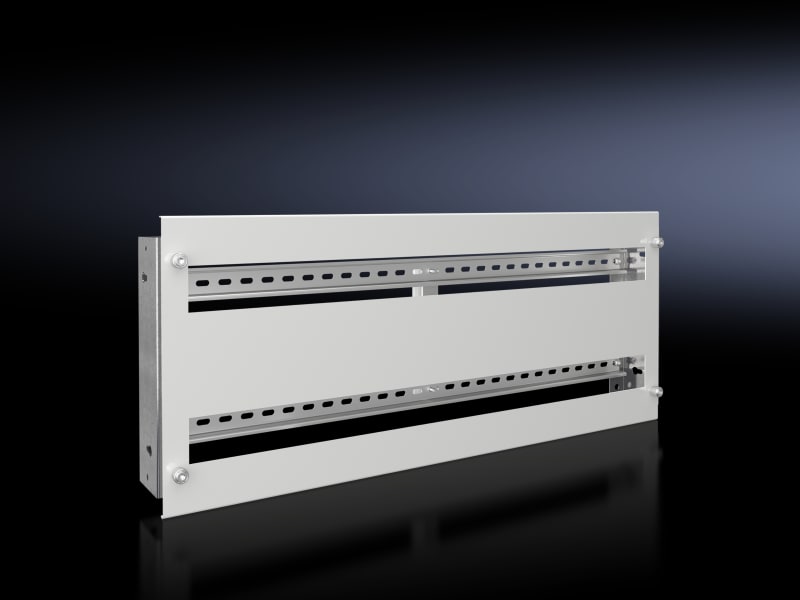

Rittal 9683783 SV Support Frame for DIN-Rail Devices VX 800 mm 2 x 24 PU

Rittal 9683783 is an SV support frame for DIN-rail-mounted devices installed inside VX enclosures with 800 mm width. The frame provides 2 x 24 pitch units (17.5 mm) across a 700 x 295 mm working area and ships with DIN rails, two mounting brackets, a cut-out cover and assembly hardware. Zinc-plated 1.5 mm carbon-steel construction; manufactured in Germany.

Manufacturer part number (MPN)

9683783

EAN / GTIN

4028177937338

Sales unit

pcs

Model designation

SV 9683.783

Product type

Support Frame

Material

Support frame: Carbon steel, zinc-plated

1.5 mm; Cover

Carbon steel, spray finished, 1.5 mm

Supply includes

Support Rails; 2 mounting bracket; 1 cover with cut-out; Assembly components

For compartment height

300 mm

No. of pitch units 17.5 mm

2 x 36

Packaging unit

1 pc(s).

Net weight

4 kg

Gross weight

4.3 kg

PCF/VE (cradle-to-gate)

16.4 kg CO2 eq (Cat B)

Information regarding the PCF class

Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared

Customs tariff number

39269097

ETIM 9

EC002270

ECLASS 8.0

27400613

Width

800 mm

Height

300 mm

With mounting plate

No

With mounting rail

Yes

With cover

Yes

Country of origin

Germany

HS Code

3926.90

• EAN 4028177937338
• SAP 1200596663
• Code 82973190
