Rittal 9340270 SV OM Support 55x272 mm without Contact System
Pricing
Request a quote
We reply within 24 hours
Product Description

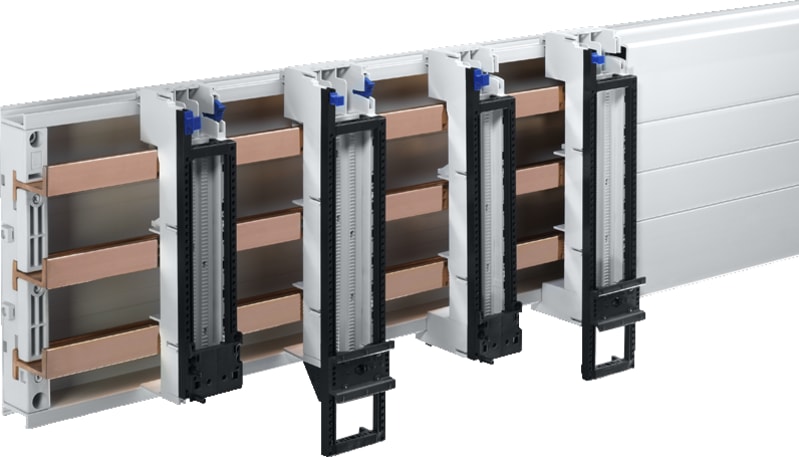

Rittal SV 9340.270 is an OM device adapter (support frame) 55 mm wide by 272 mm high, without contact system, for busbar systems with 60 mm centre-to-centre spacing. Polyamide construction with UL 94-V0 fire protection, chassis in RAL 7035; carries a single TS 55D-V support rail for three-pole equipment. Approvals include UL, C-UL, ABS, DNV and Lloyd's Register. Supplied 16 pieces per pack.
Technical Specifications
- Manufacturer part number (MPN)
- 9340270
- EAN / GTIN
- 4028177502475
- Sales unit
- pcs
- Package quantity
- 16 pcs
- Model designation
- SV 9340.270
- Product type
- OM support
- Version
- without contact system
- Material
- Polyamide; Fire protection corresponding to UL 94-V0
- Color
- Chassis: RAL 7035
- For bar systems with center-to- center spacing
- 60 mm
- Support rail type
- Support frame, 1 x TS 55D-V
- Number of poles
- 3-pole
- Support frame support
- Yes
- Dimensions
- Width: 55 mm; Height: 272 mm
- Support rails Qty/height
- 1 / 10 mm
- Suitable for busbars
- Height: 5, 10 mm
- Support frame (W x H)
- 55 mm x 237 mm
- Packaging unit
- 1 pc(s).
- Net weight
- 0.25 kg
- Gross weight
- 0.258 kg
- Customs tariff number
- 85369095
- ETIM 9
- EC001166
- ECLASS 8.0
- 27400607
- Approvals
- UL; ABS; DNV; Lloyds Register; UL + C-UL (listed)
- Busbar distance
- 60 mm
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 3926.90
Cross References
- EAN 4028177502475
- SAP 1000116745
- Code 8614827
