Rittal

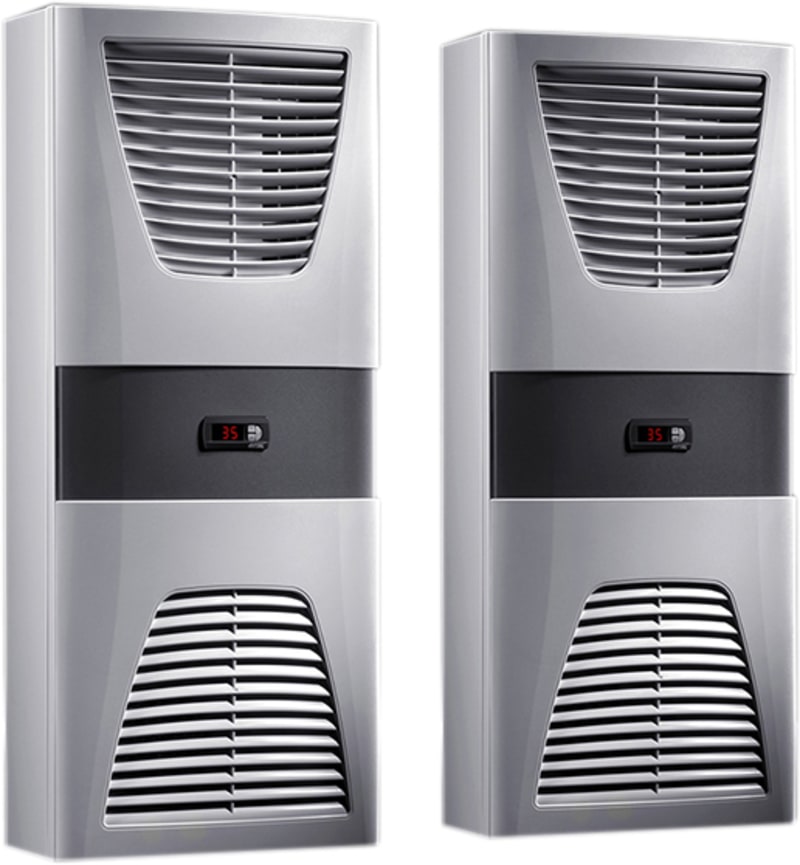

Air/Air Heat Exchanger TopTherm 45 W/K, Wall-Mounted
Part number3128100EAN / GTIN4028177388970HS code8419.50
Enclosures
Enclosure Accessories
MOQ:1
Pricing
Request a quote
We reply within 24 hours
Product Description
Rittal 3128100 SK TopTherm air/air heat exchanger, wall-mounted with controller, 45 W/K, 230 V 1~ 50/60 Hz; WHD 400 × 950 × 205 mm.
Technical Specifications
- Manufacturer part number (MPN)
- 3128100 EAN / GTIN: 4028177388970 Sales unit: pcs Model designation: SK 3128.100 Product type: TopTherm air-air heat exchanger Version: wall-mounted Color: RAL 7035 Supply includes: Complete unit ready for connection; Plug-in terminal strip; Floating fault signal contact in case of overtemperature; Drilling template; Fasteners Specific thermal output: 45 W/K Rated operating voltage: 230 V, 1~, 50 Hz/60 Hz Dimensions: Width: 400 mm; Height: 950 mm; Depth: 205 mm Temperature control: Electronic Control with digital Display (factory setting +35 °C) Operating temperature range: -5 °C...55 °C; 23 °F...131 °F Protection category IP to IEC 60 529: Internal circuit, IP 54; External circuit, IP 34 Packaging unit: 1 pc(s). Net weight: 19 kg Gross weight: 20 kg Customs tariff number: 84158300 ETIM 9: EC002514 ETIM 8: EC002514 ECLASS 8.0: 27180711 Approvals: UR + C-UR (recognized) Add-on type: Integrated Operating voltage AC 50 Hz: 207–253 V Operating voltage AC 60 Hz: 207–253 V Voltage type: AC Country of origin: Spain
Standards & Compliance
- HS Code
- 8419.50
Cross References
- EAN 4028177388970
- SAP 1000110968
- Code 8608421
Product Documentation
Document preview: Rittal 3128100 — Data Sheet (OEM)
More from Rittal
Rittal
Segma Channel 60X80 (PW21167)
Rittal
PDU basic 32A/1P 16XC13+2XC19
7979112
Rittal
PDU basic 32A/3P 48XC13
7979143
Rittal
Rittal VX IT Vented Server Rack 800 x 2000 mm, 42U, Depth 1000 mm
5309166
Rittal
Rittal CS TopTec Outdoor Enclosure 800 x 1600 x 800 mm with Climate-Unit Cut-Out
9868550
Rittal
PDU basic 16A/3P 36XC13+6XC19
7979140
Rittal
VX IT std 800X2200X800 vent
5312114
Rittal
PDU basic 16A/3P 42XC13
7979142
Catalogue entry last verified: 2026-10-02. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy 3128100?
- 3128100 can be ordered from cballast.com as a Rittal catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Rittal product?
- The manufacturer part number is 3128100.
- What is the HS code for 3128100?
- The customs tariff (HS) code for 3128100 is 8419.50.
- Who manufactures 3128100?
- 3128100 is a Rittal product in the Enclosures range.
- Is a datasheet available for 3128100?
- Yes — the 3128100 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for 3128100?
- The minimum order quantity is 1.
- Is 3128100 available?
- Yes — 3128100 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
