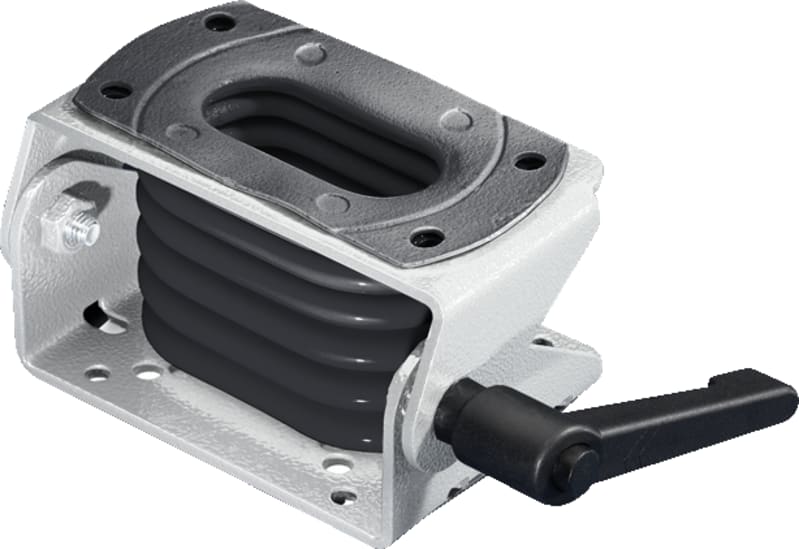

Helningsadapter + 100/-60°

Rittal 6206460 Manufacturer description: CP Tilting adaptor +100°/-60°, CP 60/120, for support arm connection 120 x 65 mm. Helningsadapter + 100/-60°.

Manufacturer part number (MPN)

6206460

EAN / GTIN

4028177684454

Sales unit

pcs

Model designation

CP 6206.460

Product type

Tilting adapter +100°/–60°

Version

For mounting on; IW worktop, prepared for attachment of 130 mm diameter; Surfaces; For attachment/coupling with 120 x 65 mm support arm connection; Suitable for enclosures up to 20 kg with support arm connection; 90 x 71 mm; Ø 130 mm; 120 x 65 mm; VESA Standard 75; With cable tube for protected cable entry.

Material

Tilting adapter: Carbon steel, spray finished; Concertina section: Plastic

Color

Tilting adapter: RAL 7035; Concertina section: RAL 7024

Supply includes

Assembly components; Concertina section

Rotating/tilting

Yes

Tilt angle note

Adjustable in 7.2° increments via clamping lever and may be limited to +100°/–15° using the stop screw supplied loose

Packaging unit

1 pc(s).

Net weight

0.86 kg

Gross weight

0.871 kg

PCF/VE (cradle-to-gate)

3 kg CO2 eq (Cat B)

Information regarding the PCF class

Category B: PCF value (cradle-to-gate) calculated approximately on the basis of the product weight and self-declared

Customs tariff number

73269098

ETIM 9

EC000882

ECLASS 8.0

27400556

Country of origin

Germany

HS Code

7326.90

• EAN 4028177684454
• SAP 1000364785
• Code 8418388
